Add compact charge-air cooling capacity to a fabricated system

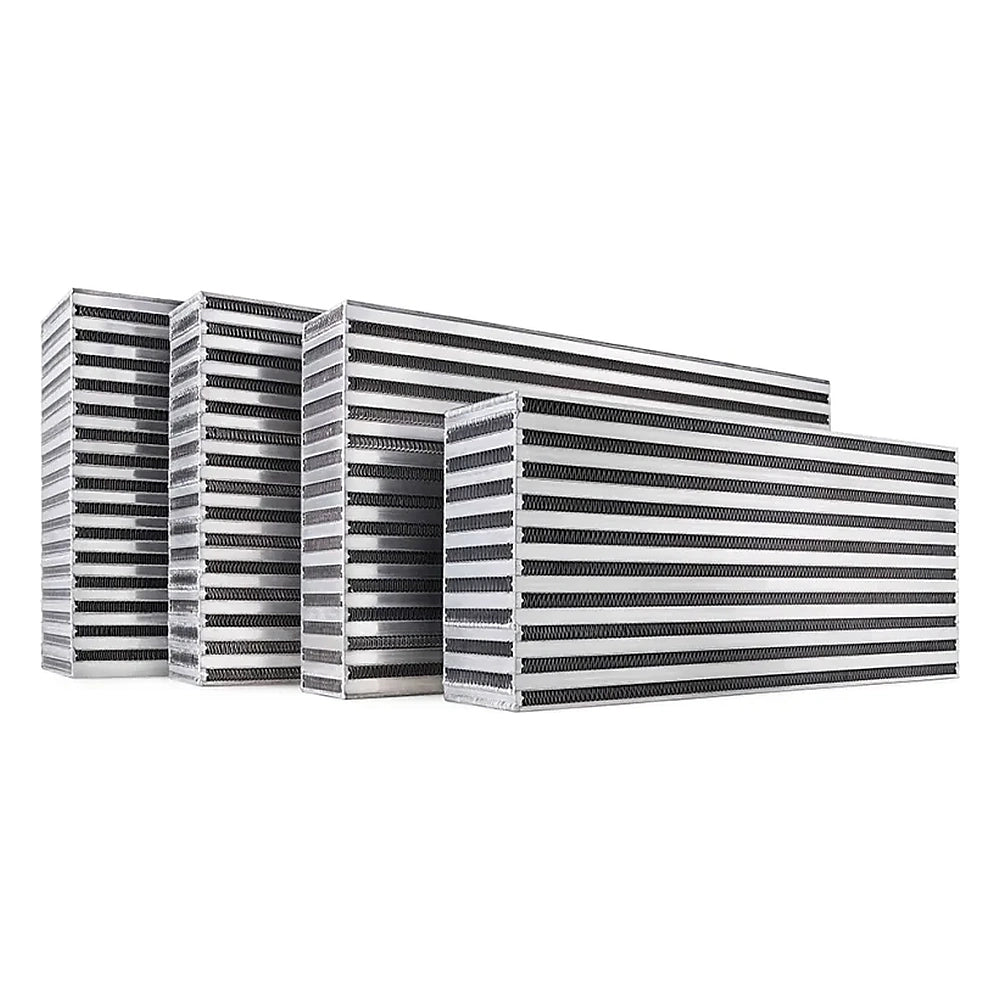

Garrett 873213-6002 is an air-to-liquid bar-and-plate core rated for applications targeting up to 980 horsepower where its verified dimensions and custom plumbing requirements are suitable.
Key Features
- Air-to-liquid heat exchanger core
- Rated for up to 980 horsepower under normal operating conditions
- Compact bar-and-plate construction
- Designed for custom charge-air systems
- Dimension-based selection avoids unsupported vehicle claims
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | No year-make-model fitment applies. Select by air-to-liquid design, 7.2-inch hot-flow length, 3.6-inch no-flow height, 9.8-inch cold-flow width, 980-horsepower rating, plumbing design, available space, and fabrication requirements. |
Specifications
| Detail | Value |
|---|---|
| Brand | Garrett |
| Manufacturer Part Number | 873213-6002 |
| Product Type | Intercoolers |
| Cooling Type | Air to liquid |
| Construction | Bar-and-plate core |
| Supported Power | Up to 980 horsepower |
| Hot-Flow Length | 7.2 in (183 mm) |
| No-Flow Height | 3.6 in (91 mm) |
| Cold-Flow Width | 9.8 in (249 mm) |
What's Included
- One Garrett air-to-liquid intercooler core
- Not included: End tanks
- Not included: Coolant pump and reservoir
- Not included: Hoses and fittings
- Not included: Vehicle-specific mounting hardware
About Garrett
Garrett develops turbocharging and charge-air products using application engineering and published performance ratings for motorsport and performance systems.
Related Parts
- This is a bare intercooler core for a fabricated system; compatible end tanks, coolant hardware, and plumbing must be selected separately.
FAQ
What is the 873213-6002?It is a compact Garrett air-to-liquid intercooler core rated for systems targeting up to 980 horsepower.
What does this product fit?It has no direct year-make-model application and must be selected by dimensions, power target, plumbing, and fabrication requirements.
How is it constructed?It uses bar-and-plate core construction for an air-to-liquid charge-cooling circuit.
What is included?One bare intercooler core is included.
Is professional installation recommended?Professional fabrication and pressure testing are strongly recommended.
Are additional parts required?End tanks, mounting hardware, coolant components, hoses, and fittings are required and sold separately.
How should compatibility be checked before ordering?Compare the verified dimensions, airflow path, coolant circuit, power target, and available space before ordering.
What warranty applies?Use Garrett's current performance-product warranty terms.
Installation Instructions
- Confirm all three core dimensions, airflow orientation, coolant routing, and available mounting space.
- Design and fabricate suitable end tanks, brackets, and plumbing for the intended system.
- Pressure-test the completed air and coolant circuits before installation.
- Fill and bleed the coolant circuit, then check for leaks and adequate charge-air temperature control.
