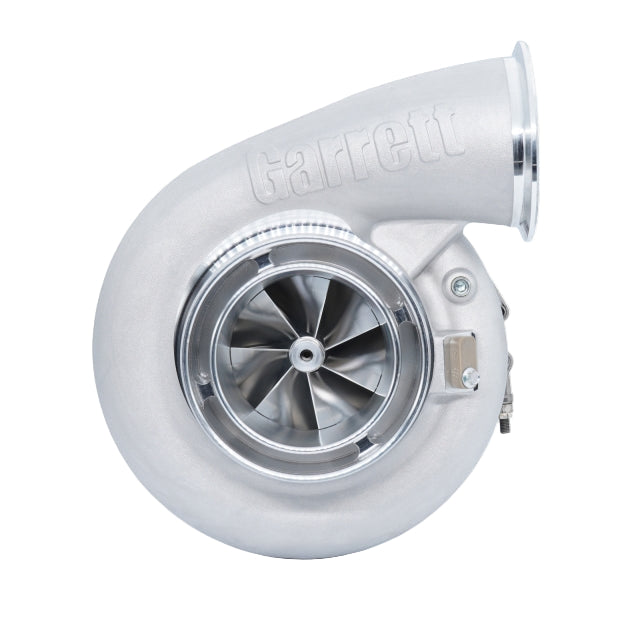

Garrett G-XRace GXR45-76 76mm billet compressor supercore
Close-up of 76 mm 11-blade billet compressor wheel
Click to zoom in

Garrett G-XRace GXR45-76 76mm Supercore

Garrett
GRT952766-5001S
Super Core Assemblies
3 Units In Stock - Ships Next Business Day
$ 3,813.95
$ 3,813.95

SKU: 952766-5001S | UPC: 952766500153

Garrett G-XRace GXR45-76 76mm Supercore – 1,200–2,200 HP

The Garrett 952766-5001S GXR45-76 is the absolute pinnacle of Garrett’s turbocharger lineup a 76 mm billet compressor wheel supercore capable of 1,200–2,200+ horsepower. Part of the groundbreaking G-XRace series, it features a forged fully-machined 76 mm 11-blade compressor (20% higher flow than G45-1350), 10-blade 88 mm Inconel turbine, and ultra-high-flow ported-shroud compressor housing outlet. Designed for the most extreme 2.5L–12.0L race applications the turbo that took multiple world records in 2024.

Key Features

  • 76 mm Billet 11-Blade Compressor – 20% more flow than G45-1350
  • 88 mm Inconel Turbine Wheel – Extreme temperature & durability
  • 1,200–2,200+ HP Rated – Proven on 7-second drag cars
  • Ported Shroud Compressor Housing – Maximum surge resistance
  • Made in the USA – Garrett factory supercore

Specifications

Specification Detail
Part Number 952766-5001S
Compressor Inducer 76 mm (billet 11-blade)
Compressor Exducer 108 mm
Turbine Inducer 88 mm
Turbine Exducer 80 mm
Turbine Material Inconel
Max HP Rating 2,200+ hp
A/R Options 1.01, 1.15, 1.30 (V-band or T6 housing sold separately)
Country of Origin United States

Product Notes

  • Supercore only compressor & turbine housing sold separately
  • Compatible with all G-Series 45 turbine housings (V-band or T6)

Installation Notes

  • Professional assembly & balancing required
  • Recommended oil feed: -4 AN, oil drain: -12 AN minimum
  • Water-cooling strongly recommended

This Part Fits

Universal, any 2.5L–12.0L race application requiring 1,200–2,200+ hp

Why Choose Garrett G-XRace?

  • Official turbo of Formula Drift, TX2K, and multiple 6-second doorslammers
  • Every supercore built & balanced in Torrance, California
  • Currently the fastest-spooling 2,000+ hp turbo in the world

Frequently Asked Questions

  • Q: Does this include the housing?
    A: No, this is the supercore only. Choose your V-band or T6 housing separately.
  • Q: What’s the difference vs G45-2000?
    A: 20% more compressor flow, larger turbine, 300+ hp higher rating.
  • Q: V-band or T6 housing recommended?
    A: V-band for fastest spool, T6 for max top-end power.

Shipping & Handling

  • Method: UPS/FedEx 2Day
  • Availability: Limited stock – ships same or next business day
  • Packaging: Official Garrett protective box

Request For Information

Have questions about ? Fill out the form below and we'll get back to you by the next business day.
