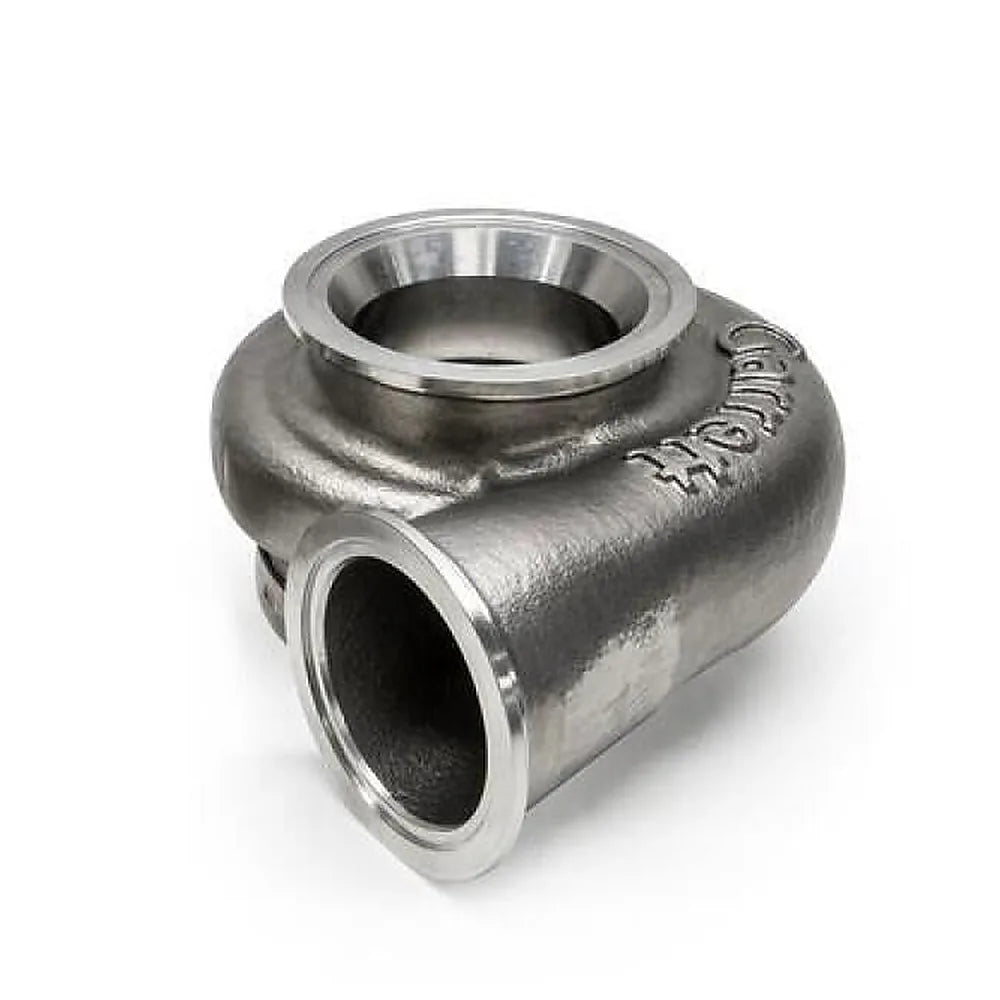

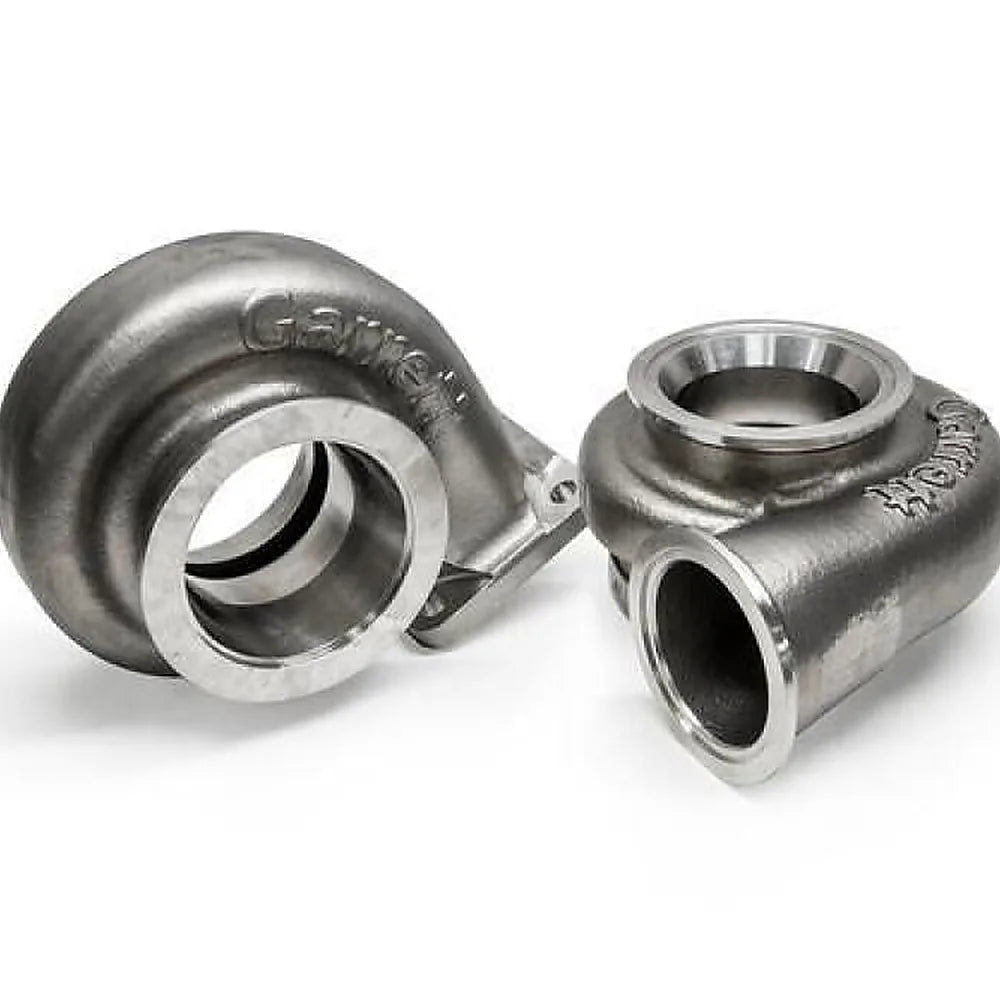

Garrett G38/GXR38 Turbine Housing Kit O/V V-Band / V-Band 0.95 A/R

Midrange V-Band Turbine Housing Delivering Versatile Power Across the G38 Platform

The Garrett G38/GXR38 Turbine Housing Kit O/V V-Band / V-Band 0.95 A/R (GRT757707-0038) is the balanced A/R option among the V-Band inlet G38 housing family, engineered to deliver a wide power band for G38-1000 and GXR38-64 builds on engines from 2.5L to 5.5L displacement. GRT757707-0038 combines the installation flexibility of dual V-Band inlet and outlet connections with the 0.95 A/R that optimizes both spool response and peak exhaust throughput, making it a strong choice for street-track and competition builds where a single housing must perform well across a wide RPM range. The V-Band inlet allows full turbo rotation for optimal oil drain positioning in custom installations.

Key Features

• GRT757707-0038 V-Band inlet / V-Band outlet turbine housing, 0.95 A/R for G38 and GXR38 supercores
• Midrange 0.95 A/R balances spool and peak flow across the full G38 power range
• Dual V-Band connections for clean, leak-free sealing and simplified turbo removal
• Full turbo rotation capability for optimal oil drain orientation in tight installations
• Stainless steel housing construction for long-term high-temperature durability
• External wastegate configuration for precise boost management
• Includes gasket kit, V-Band clamps (inlet and outlet), and mounting hardware

Specifications

What’s Included

• 1 x GRT757707-0038 G38/GXR38 Turbine Housing Kit
• Gasket kit
• V-Band clamps for inlet and outlet
• Mounting hardware
• Note: Supercore sold separately

About Garrett Motion

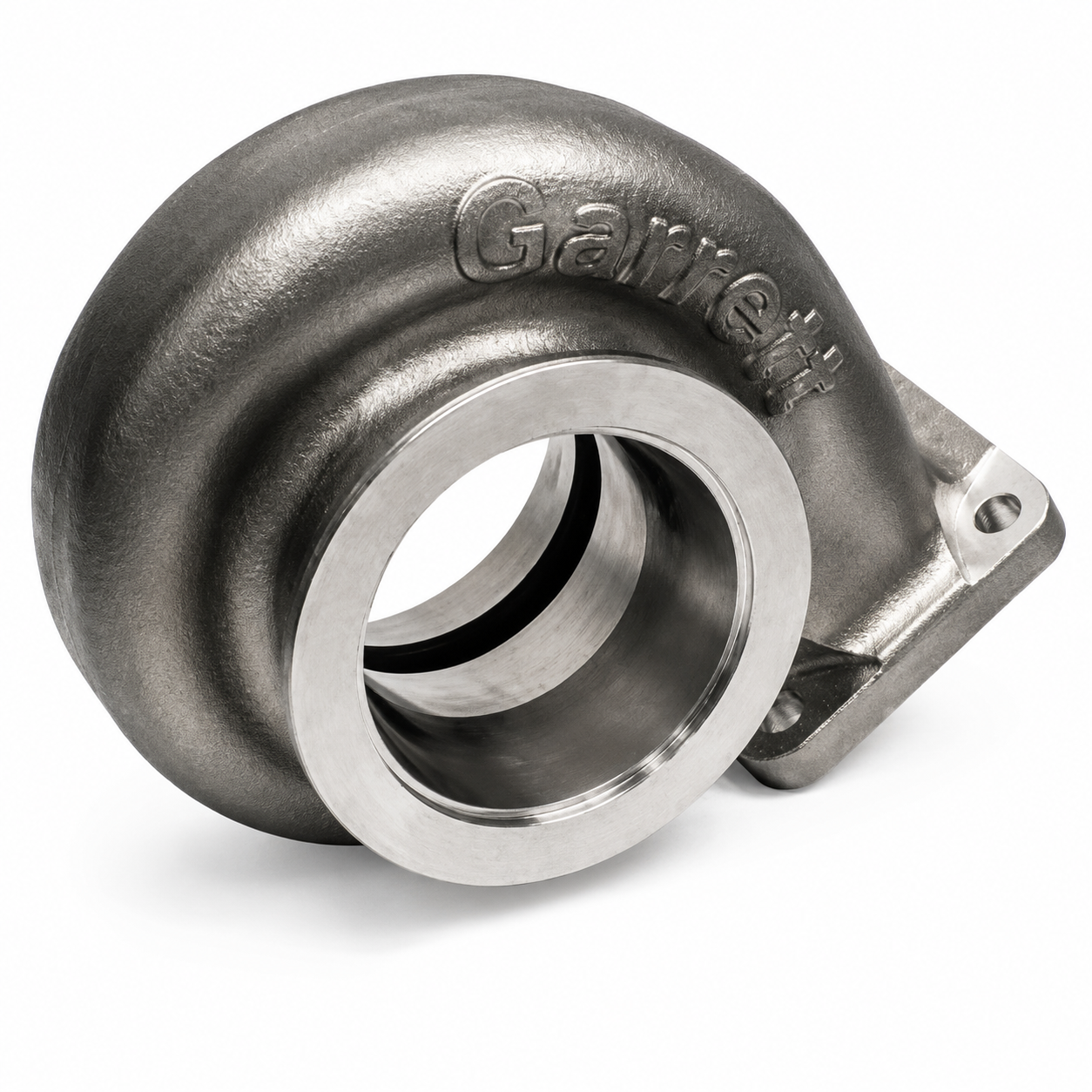

Garrett’s G38 turbine housing family spans three A/R ratios and two inlet configurations to support the widest range of builds on the G38-1000 and GXR38-64 supercore platform. GRT757707-0038 is the most versatile V-Band option, balancing response and flow for multi-purpose builds.

FAQ

The GRT757707-0038 is a Garrett G38/GXR38 stainless turbine housing with V-Band inlet and V-Band outlet at 0.95 A/R. It provides a balanced combination of spool response and peak exhaust flow for G38-1000 or GXR38-64 builds across 2.5L to 5.5L engine displacements.

Choose GRT757707-0038 when you want the flexibility of a V-Band manifold connection with a broad power delivery that does not sacrifice too much low-end spool (as the 1.06 A/R might) or limit peak flow (as the 0.85 A/R might on larger engines). The 0.95 A/R is the best all-around choice for most dual-purpose street and track builds.

GRT757707-0038 is compatible with the G38-1000 supercore (938272-5003S) and the GXR38-64 supercores (934173-5008S and 934173-5009S). It is not compatible with other G-Series frame sizes.

Yes. All G38 housings are external wastegate only. A suitable external wastegate must be sourced and installed separately.

Yes. V-Band inlet housings allow full turbo rotation for optimal oil drain line orientation, which is particularly beneficial in custom fabricated installations where the drain must clear headers or chassis components.

The V-Band dimensions match the standard G38 turbine housing inlet specifications. A custom V-Band exhaust manifold must be fabricated to match the G38 inlet V-Band OD. Verify the V-Band sizing directly with Garrett or your fabricator before ordering manifold flanges.

Yes. GRT757707-0038 includes V-Band clamps for both the turbine inlet and turbine outlet, in addition to the gasket kit and hardware.

Yes. GRT757707-0038 is standard rotation. Reverse-rotation variants have separate part numbers.

Installation Overview

1. Assemble G38 or GXR38 supercore with oil and coolant fittings before mating the turbine housing
2. Connect V-Band inlet to the V-Band exhaust manifold outlet using the included inlet V-Band clamp, rotating turbo to desired position before fully tightening
3. Torque inlet clamp to specification to ensure a leak-free seal under thermal cycling
4. Connect V-Band turbine outlet to downpipe using the included outlet V-Band clamp
5. Install external wastegate to the exhaust manifold dump port or housing dump
6. Prime oil feed line before first start and purge coolant circuit
7. Complete idle break-in prior to boost operation
