Steel Running Boards Built for the 2019-2024 RAM 1500 Crew Cab That Install Without a Single Drill

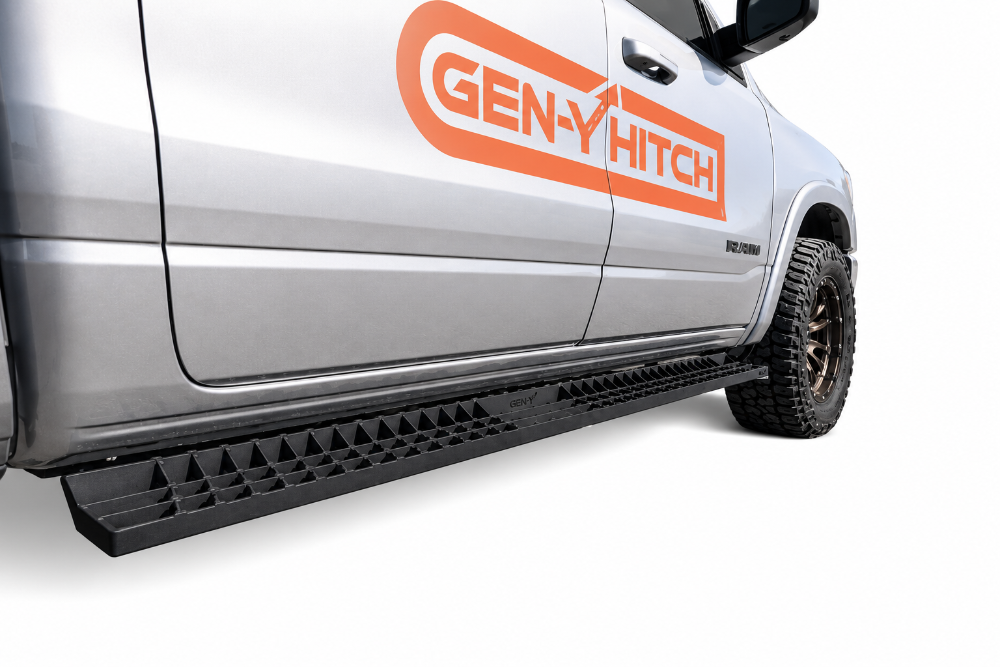

The GEN-Y GH-25002 running boards bolt directly to your 2019-2024 RAM 1500 Crew Cab using included vehicle-specific mounting brackets that attach to existing factory mounting points with no drilling, cutting, or body modification required. The boards span 84 inches from front to rear, covering both crew cab door openings, and feature a criss-cross anti-slip stamped steel surface rated for up to 400 pounds. The heavy-duty steel construction is finished in a black powder coat that resists rust, chipping, and fading through daily use and all-weather conditions. Note: GENGH-25002 does not fit the RAM 1500 Classic body style.
Key Features
- Direct bolt-on fit for 2019-2024 RAM 1500 Crew Cab (RS and CS); does not fit RAM Classic
- 84-inch board length spans both front and rear crew cab door openings
- 6-inch wide step pad surface provides stable, wide footing for entry and exit
- Criss-cross anti-slip pattern stamped into the steel surface channels mud and water away from the step
- Heavy-duty steel construction rated for up to 400 lbs
- Durable black powder coat finish resists corrosion, chipping, and UV fading
- No drilling required; complete vehicle-specific mounting bracket kit included
- Made in the USA
Vehicle Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2019-2024 | RAM | 1500 | Crew Cab (RS and CS; does not fit Classic) |
Specifications
| Detail | Value |
|---|---|
| Part Number | GH-25002 |
| Cab Configuration | Crew Cab only (RS and CS; excludes RAM Classic) |
| Length | 84 inches |
| Step Pad Width | 6 inches |
| Weight Capacity | 400 lbs |
| Material | Heavy-duty steel |
| Surface Pattern | Criss-cross anti-slip |
| Finish | Black powder coat |
| Drilling Required | No |
| Mounting Hardware | Included |
| Country of Origin | Made in the USA |
| UPC | 810006129762 |
What's Included

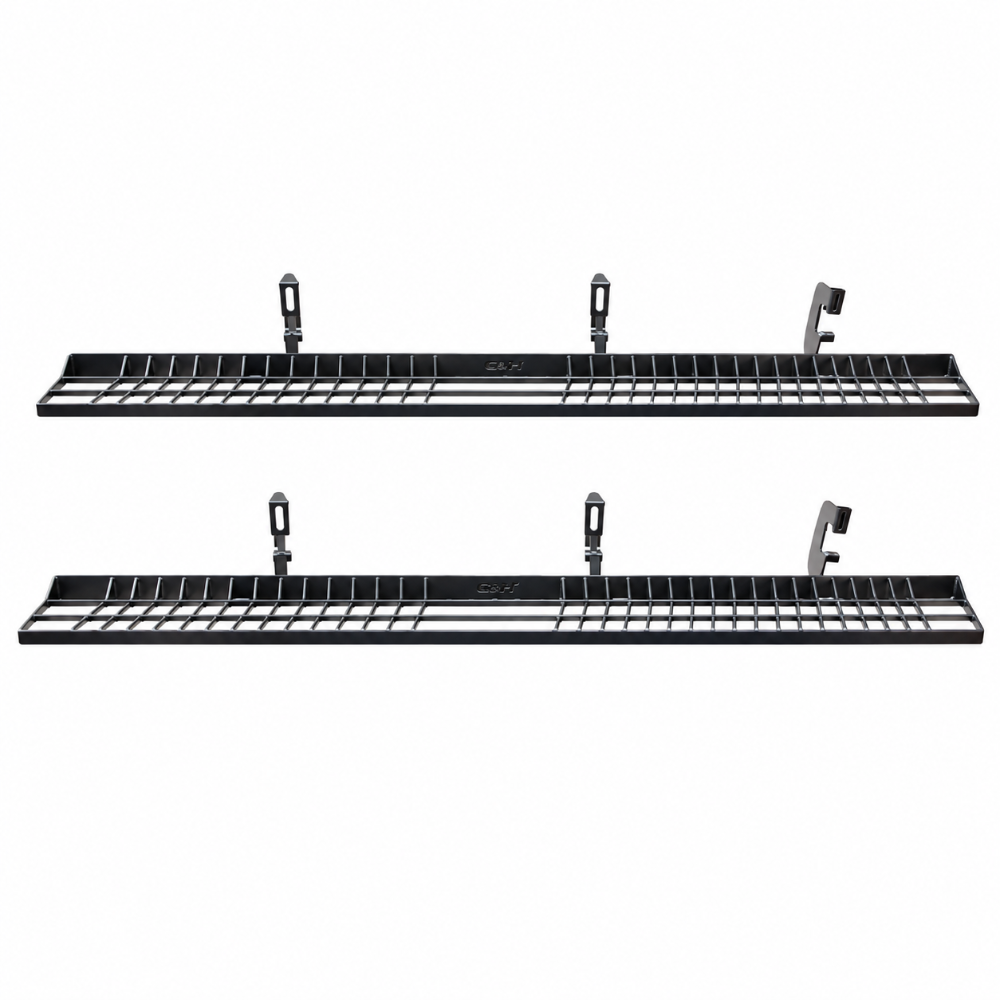

- 2x GEN-Y GH-25002 running board assemblies (driver side and passenger side)
- Complete vehicle-specific mounting bracket kit
- All required hardware for installation
About GEN-Y Hitch
GEN-Y Hitch designs and manufactures towing and truck accessories in the USA, applying the same engineering standards to their running boards as to their flagship Torsion-Flex hitch line. Every product is built from domestic materials, tested to exceed load and durability standards, and backed by a satisfaction guarantee.
Frequently Asked Questions
What is the GEN-Y GH-25002?The GEN-Y GH-25002 is a set of heavy-duty steel running boards designed specifically for 2019-2024 RAM 1500 Crew Cab trucks (RS and CS body styles; does not fit RAM Classic). They are 84 inches long with a 6-inch wide criss-cross anti-slip surface, rated for 400 lbs, and install bolt-on without drilling. Made in the USA.
Does the GH-25002 fit the RAM 1500 Classic?No. The GH-25002 does not fit the RAM 1500 Classic body style. It is designed specifically for the 2019-2024 RAM 1500 (DT body) in Crew Cab RS and CS configurations. If you have a RAM Classic, a different part number is required.
Do these boards require any drilling?No. The GH-25002 uses vehicle-specific brackets that attach to existing factory mounting locations on the 2019-2024 RAM 1500 Crew Cab. No drilling, cutting, or body modification is needed. All hardware is included in the kit.
How long are the GH-25002 running boards?The boards are 84 inches long, designed to cover both the front and rear crew cab door openings on the 2019-2024 RAM 1500. The 6-inch wide step pad surface runs the full length for consistent footing along the entire cab.
What is the weight rating?The GH-25002 is rated for up to 400 lbs per board, providing a solid and dependable platform for daily ingress and egress as well as loading cargo or accessing the truck bed from the side.
Are the GH-25002 boards weather-resistant?Yes. The steel boards are finished with a black powder coat that provides corrosion resistance against road salt, rain, and UV exposure. Washing the boards periodically to remove accumulated debris will help preserve the finish over the long term.
How long does installation take?Most installations take 30 to 60 minutes using basic hand tools. The kit includes vehicle-specific brackets and all hardware. Gen-Y provides installation instructions with the kit and on their website at genyhitch.com.
What warranty applies to the GH-25002?GEN-Y Hitch backs their running boards with a satisfaction guarantee. For specific warranty terms and claims, contact GEN-Y Hitch directly through genyhitch.com.
Installation Instructions
- Lay out all components and verify all brackets, boards, and hardware are present before starting.
- Identify the mounting points on the 2019-2024 RAM 1500 frame or rocker panel area per the included instruction sheet.
- Attach the vehicle-specific mounting brackets to the frame using the supplied hardware; do not fully tighten at this stage.
- Position the running board onto the brackets and confirm it sits level and aligns with both crew cab door openings.
- Adjust board position as needed so the step surface centers under the front and rear doors.
- Torque all bracket-to-vehicle and bracket-to-board fasteners to the specifications listed in the instruction sheet.
- Repeat on the opposite side of the truck.
- Confirm both boards are secure and do not flex or rock under load. Recheck all torque values after the first 50 miles.
