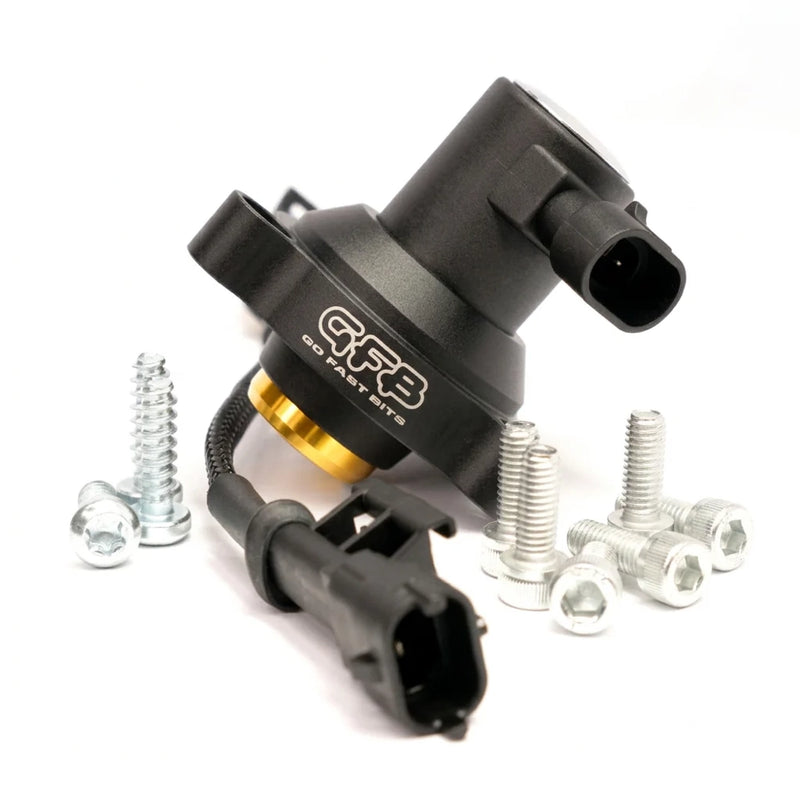

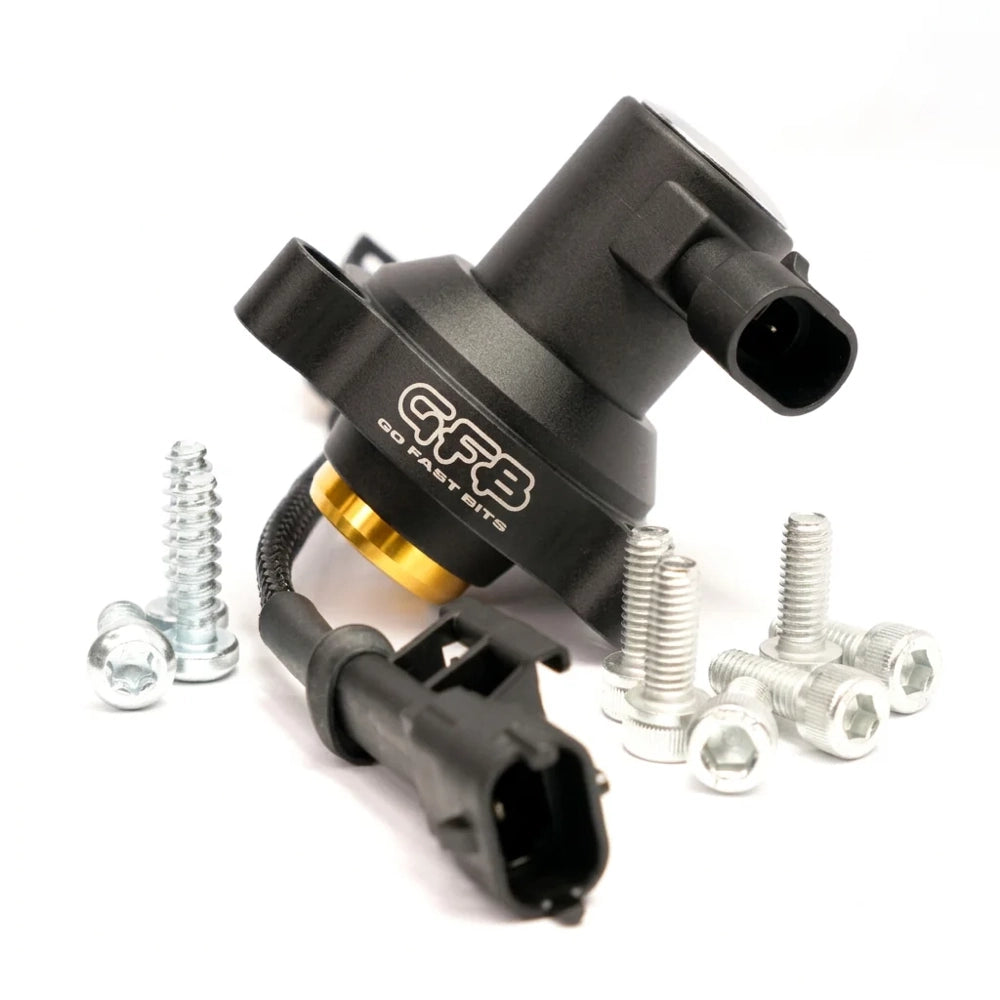

GFB T9386 DV+ replaces the complete factory diverter valve on compatible BMW N13, N20 and N55 applications. Its integrated solenoid eliminates reuse of the original coil, and the compact housing helps in tight installations.
Key Features
- Progressive pilot-operated valve action helps smooth throttle transitions.
- Designed to improve boost retention and recovery after a brief throttle lift.
- Recirculates air while retaining ECU control.
- Low-profile solenoid replaces the aging factory coil.
Fitment
| 2011-2015 | BMW 114i / 116i / 118i, F20/F21, N13 |
|---|---|
| 2012-2015 | BMW 316i / 320i EfficientDynamics, F30/F31/F34/F35, N13 |
| 2014-2016 | BMW 220i / 228i, F22, N20/N26 |
| 2013-2016 | BMW 420i / 428i, F32/F33/F36, N20/N26 |
| 2011-2016 | BMW Z4 sDrive18i / sDrive20i / sDrive28i, E89, N20/N26 |
| 2011-2015 | BMW X1 sDrive20i / xDrive20i / xDrive28i, E84, N20/N26 |
| 2010-2013 | BMW 135i, E81/E82/E87/E88, N55 |
| 2011-2018 | BMW M135i, F20, N55 |
| 2014-2016 | BMW M235i, F22, N55 |
| 2015-2021 | BMW M2, F87, only N55B30T0 engine |
| 2010-2012 | BMW 335i / 335i xDrive, E90/E91/E92/E93, N55 |
| 2011-2018 | BMW 335i, F30/F31/F34/F35, N55 |
| 2013-2016 | BMW 435i, F32/F33/F36, N55 |
| 2010-2017 | BMW 535i, F07/F10/F11, N55 |
| 2011-2016 | BMW ActiveHybrid 5, F10, N55 |
| 2012-2018 | BMW 640i, F06/F12/F13, N55 |
| 2012-2015 | BMW 740i, F01/F02/F03/F04, N55 |
| 2013-2015 | BMW X1 xDrive35i, N55 |
| 2010-2017 | BMW X3 xDrive35i, F25, N55 |
| 2011-2013 | BMW X5 xDrive35i, E70, N55 |
| 2013-2018 | BMW X5 xDrive35i, F15, N55 |
| 2011-2013 | BMW X6 xDrive35i, E71, N55 |
Engine code and chassis must match; model name alone is insufficient. The N55-only M2 entry does not cover S55-powered Competition or CS variants. GFB also lists additional N20/N26 applications without model-year ranges; consult its application guide for those vehicles.
Specifications
| Part number | T9386 |
|---|---|
| Type | Recirculating DV+ diverter valve |
| Solenoid | Integrated |
| Control | Factory ECU |
| Emissions note | Turn 14 identifies this item as not CARB legal |
Installation
Some N20/N26 installations require loosening the turbo manifold for access. Follow the T9386 installation guide.
Frequently Asked Questions
Is the factory solenoid reused?
No. T9386 incorporates its own solenoid.
Is this an atmospheric blow-off valve?
No. It recirculates discharged air.
Warranty
GFB provides a lifetime warranty subject to its terms.
