Click to zoom in

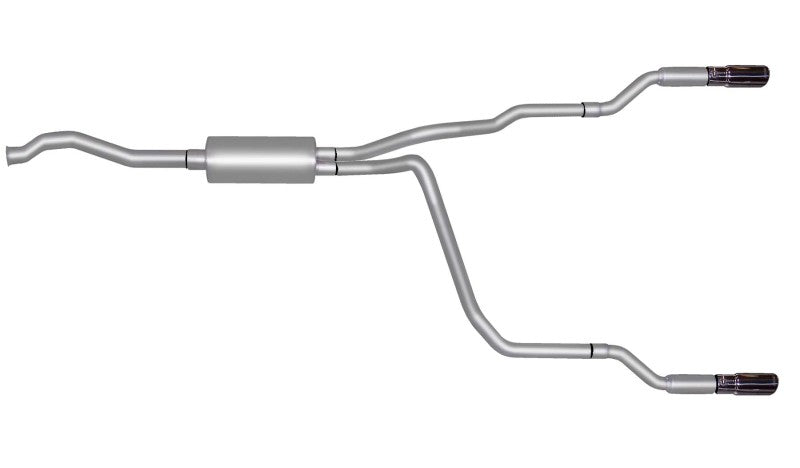

This Gibson cat-back exhaust system delivers an aggressive throaty sound and head-turning dual split rear exit for 2001-2005 Ford Ranger XL 2.3L models plus compatible Rangers and Mazda B-Series trucks. It reduces backpressure for average gains of 15-20 horsepower and more torque using 1.75-inch aluminized steel tubing. Stainless steel dual tips exit straight out the back for a clean look that pairs with most bumpers roll pans and trailer hitches.
Key Features
- Dual Split Design: 1.75-inch aluminized steel pipes with stainless dual 4-inch tips positioned straight out the back for aggressive sound and style.
- Sound Profile: Throaty rumble at idle deepens to louder tone under load or towing conditions without drone on highway.
- Performance Gains: Lowers exhaust restriction to deliver 15-20 horsepower and increased torque on average for stronger acceleration and towing power.
- Made in USA with precision mandrel-bent tubing for smooth flow.
- MPN 9508 ships as complete bolt-on kit.
- Hassle-free bolt-on process uses factory hangers no welding or cutting required.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2000-2012 | Ford | Ranger | 2.3L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-1999 | Ford | Ranger | 2.5L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-2008 | Ford | Ranger | 3.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-2012 | Ford | Ranger | 4.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 2001-2005 | Ford | Ranger | Edge, 3.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 2001-2005 | Ford | Ranger | Edge, 4.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-2007 | Mazda | B2500 | 3.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-1999 | Mazda | B2500 | 4.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-2007 | Mazda | B3000 | 3.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-1999 | Mazda | B3000 | 4.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
| 1998-1999 | Mazda | B4000 | 4.0L, Extended Cab w/71.8 in./5 ft. 11.8 in. Bed |
Specifications
| Manufacturer | Gibson |
|---|---|
| Manufacturer Part Number | 9508 |
| Product Type | Catback |
| Fitment Type | Vehicle specific |
| Tubing Diameter | 1.75- in. mandrel bent Aluminized tubing. |
| Tip Description | 3in. Polished T304 Stainless, Round, Slash- Cut Tip, Clamp on. |
| Tip Specification | Inlet 2.50 in., Outlet 3 in., L-8 in. |
| Muffler Description | Baffled &, Chambered Design, No internal Packing, Minimal Interior Drone, Aggressive Sound |
| Muffler Dimension | 6 in. Round Body, 2.50 in. Center Inlet, 1.75in. Dual Outlet, L-16 in. |
| Additional Description | Includes all hardware and factory style hangers for easy bolt on installation. |
| Exit Position | Exit Is Straight Out The Back. |
| Warranty | Lifetime Limited Warranty |
What's Included
- One new Gibson catback in the exact configuration identified by manufacturer part number 9508
- Hardware and accessories only when supplied for this exact part number
About Gibson
Gibson develops vehicle-specific and universal exhaust components for street, truck, SUV, and performance applications. Selection and installation requirements remain exact-part-number specific.
Related Gibson Products
- Gibson 01-05 Ford Ranger XL 2.3L 1.75in Cat-Back Dual Extreme Exhaust - Aluminized
- Gibson 01-05 Ford Ranger XL 2.3L 1.75in Cat-Back Dual Sport Exhaust - Aluminized
- Gibson 00-03 Chevrolet S10 Base 4.3L 1.75in Cat-Back Dual Split Exhaust - Aluminized
Browse the Gibson collection for related exhaust systems and components.
Frequently Asked Questions
Which vehicles fit Gibson GIB9508?
Gibson GIB9508 is listed for 1998-1999 Mazda B4000, 1998-2007 Mazda B2500, 1998-2007 Mazda B3000, and 1998-2012 Ford Ranger. Confirm the exact engine, trim, drivetrain, body or cab configuration, exhaust layout, and every application note before ordering.
What should I verify before ordering Gibson GIB9508?
Match the exact part number, system type, material, finish, tubing and connection diameters, exhaust configuration, package contents, and current manufacturer notes shown in this listing.
What should be checked when installing Gibson GIB9508?
Verify all interfaces, hanger positions, tip and body clearances, clamp or fastener torque, leak-free operation, and local emissions requirements. Reinspect the system after its first heat cycle.
Installation Instructions
Follow the current Gibson instructions and vehicle service information for this exact part number. Work on a cool exhaust, support the vehicle safely, confirm all interfaces and clearances, align the system before final tightening, test for leaks, and inspect the installation again after the first heat cycle.
