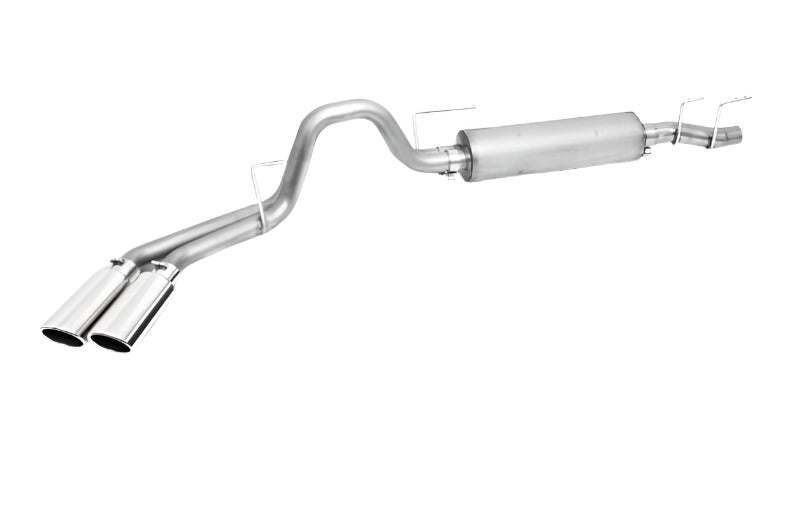

This Gibson dual cat-back exhaust system delivers style and performance for your Ford F-150 Super Crew or Super Cab with 2.7L EcoBoost, 3.3L V6, or 3.5L EcoBoost engines in 2WD or 4WD configurations from 2021 to 2024. It exits behind the rear tire for a distinctive look on streets or trails without interfering with towing. Dyno tests confirm average gains of 10-15 horsepower and 15-20 lb-ft of torque alongside a deep authoritative tone with zero cabin drone.
Key Features
- Bolt-On Installation: Direct fit using factory hangers requires no cutting or welding for quick hassle-free setup with professional results.
- Power Gains: Dyno-proven increases of 10-15 HP and 15-20 lb-ft torque enhance acceleration and towing capability.
- Dual Exit Design: 2.5-inch mandrel-bent 409 stainless steel tubing exits behind rear tires for aggressive styling and ground clearance.
- Sound Profile: Powerful deep exhaust note outside the cab with no interior drone or rasp for comfortable daily driving.
- GPX Muffler: Patented 3-inch USA-made muffler uses Helmholtz tuning for refined tone and durability.
- Retains full towing capacity with rear tire exit position and EPA-compliant design.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2021-2025 | Ford | F-150 | 2.7L, Regular Cab w/73.5 in./6 ft. 1.5 in. Bed |
| 2021-2025 | Ford | F-150 | 2.7L, Supercab, Short Bed w/6ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 2.7L, Supercrew, Long Bed w/6ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 2.7L, Supercrew, Short Bed w/5ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 3.3L Regular Cab w/72.8 in./6 ft. 0.8 in. Bed |
| 2021-2025 | Ford | F-150 | 3.3L, Supercab, Short Bed w/6ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 3.3L, Supercrew, Long Bed w/6ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 3.3L, Supercrew, Short Bed w/5ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 3.5L, Regular Cab w/72.8 in./6 ft. 0.8 in. Bed |
| 2021-2025 | Ford | F-150 | 3.5L, Supercab, Short Bed w/6ft. 5in. Bed |
| 2021-2025 | Ford | F-150 | 3.5L, Supercrew, Long Bed w/6ft. 5in. Bed |
| 2023-2025 | Ford | F-150 | 3.5L, Supercrew, Short Bed w/5ft. 5in Bed |
| 2021-2022 | Ford | F-150 | 3.5L, Supercrew, Short Bed w/5ft. 5in. Bed |
Specifications
| Manufacturer | Gibson |
|---|---|
| Manufacturer Part Number | 69224 |
| Product Type | Catback |
| Fitment Type | Vehicle specific |
| Fitment | 2021- 2025 Ford F150 |
| Engine | 2.7L/ 3.5L Non Turbo |
| Tubing Diameter | 3-in./2.50-in. 409 Stainless mandrel bent tubing. |
| Tip Description | 4in. Polished T304 Stainless, Round, Slash- Cut Tip, Clamp on. |
| Tip Specification | Inlet 2.50 in., Outlet 4.0 in., L-12 in. |
| Muffler Description | Baffled &, Chambered Design, No internal Packing, Minimal Interior Drone, Aggressive Sound |
| Muffler Dimension | 7 in. Round, 3 in. Center Inlet, 2.50in. Dual Outlet, L-24 in. |
| Additional Description | Includes all hardware and factory style hangers for easy bolt on installation. |
| Exit Position | Exits Behind Rear Tire. |
| System Type | Cat-Back Exhaust System |
| Series | Gibson Dual Sport |
| Footnote | Will Not Fit Hybrid Models |
What's Included
- One new Gibson catback in the exact configuration identified by manufacturer part number 69224
- Hardware and accessories only when supplied for this exact part number
About Gibson
Gibson develops vehicle-specific and universal exhaust components for street, truck, SUV, and performance applications. Selection and installation requirements remain exact-part-number specific.
Related Gibson Products
- Gibson 21-24 Ford F-150 Super Crew/ Super Cab 5.0L 2/4wd Cat-Back Dual Sport Exhaust
- GIbson 22-24 Toyota Tundra 3.5L-T V6 Crew Max Black Elite Stainless Cat Back Dual Sport Exhaust
- GIbson 22-24 Toyota Tundra 3.5L-T V6 Crew Max Stainless Cat Back Dual Sport Exhaust
Browse the Gibson collection for related exhaust systems and components.
Frequently Asked Questions
Which vehicles fit Gibson GIB69224?
Gibson GIB69224 is listed for 2021-2025 Ford F-150. Confirm the exact engine, trim, drivetrain, body or cab configuration, exhaust layout, and every application note before ordering.
What should I verify before ordering Gibson GIB69224?
Match the exact part number, system type, material, finish, tubing and connection diameters, exhaust configuration, package contents, and current manufacturer notes shown in this listing.
What should be checked when installing Gibson GIB69224?
Verify all interfaces, hanger positions, tip and body clearances, clamp or fastener torque, leak-free operation, and local emissions requirements. Reinspect the system after its first heat cycle.
Installation Instructions
Follow the current Gibson instructions and vehicle service information for this exact part number. Work on a cool exhaust, support the vehicle safely, confirm all interfaces and clearances, align the system before final tightening, test for leaks, and inspect the installation again after the first heat cycle.
