Unlock Stronger Acceleration on Your Honda Element

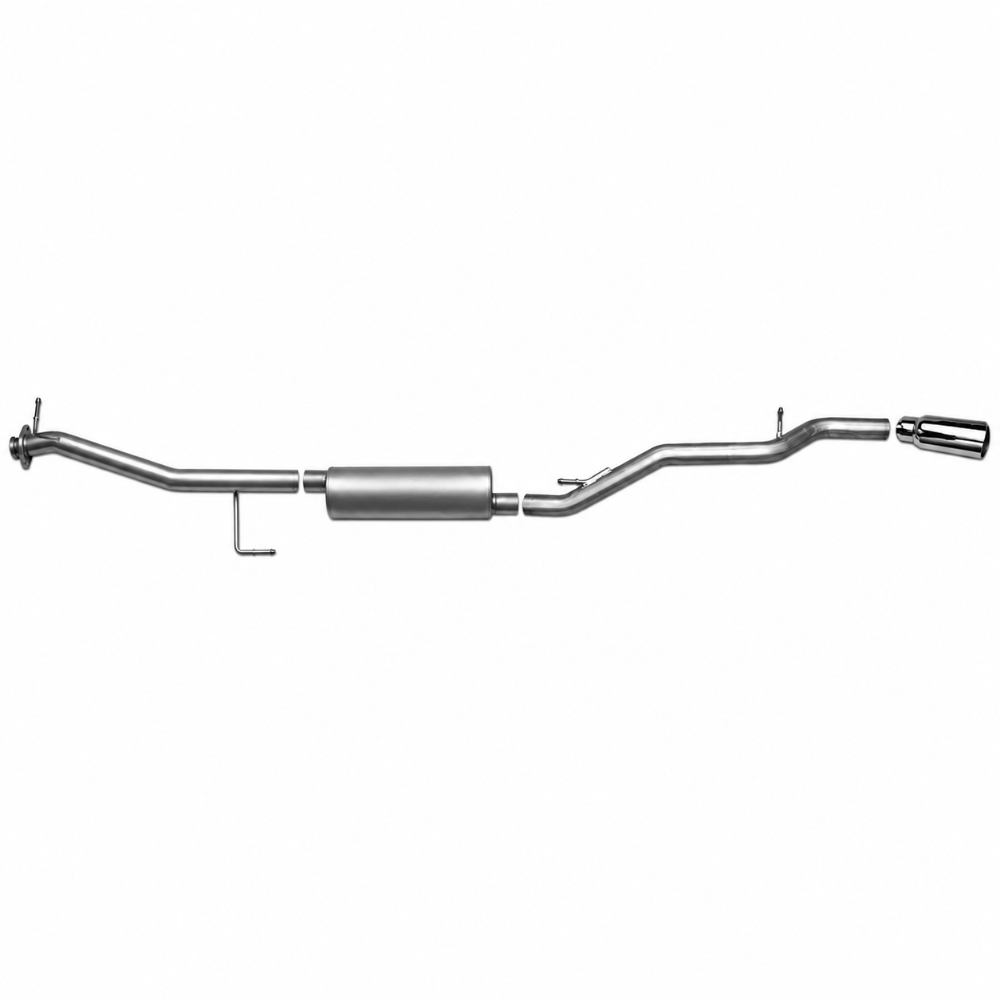

The Gibson 614001 Cat-Back Single Exhaust is engineered specifically for the 2006–2011 Honda Element 2.4L FWD. Built with 2.25 inch 409 stainless mandrel-bent tubing and Gibson’s SuperFlow muffler, this system delivers dyno-proven gains of 10 to 15 horsepower and 15 to 20 lb-ft of torque, with the strongest improvements in the 1,800 to 3,000 RPM range the exact power band used most during daily driving and highway passing.
Why the Gibson 614001 Outperforms the Stock Exhaust
The factory exhaust on the Honda Element is designed around emissions compliance and cost efficiency. It restricts flow and produces a muted sound. The Gibson 614001 replaces it with freer-flowing stainless tubing and a performance-tuned SuperFlow muffler, resulting in stronger low-to-mid range torque, quicker throttle response, and a more engaging exhaust note.
Real-World Performance Gains
Most Element owners notice the biggest improvement during everyday situations — merging, passing, and carrying loads. The gains are concentrated in the RPM range you actually use, not just at high RPMs.
Sound Profile and Cabin Comfort
The SuperFlow muffler features a 6-inch round baffled and chambered design with no internal packing. This creates an aggressive exhaust note under acceleration while keeping interior drone relatively low. Most owners describe it as deeper and more purposeful than stock, but still acceptable for daily driving and long trips.
Build Quality and Long-Term Durability
Constructed from 409 stainless steel with a polished T304 stainless tip, the 614001 offers excellent corrosion resistance. Gibson backs it with a Lifetime Limited Warranty and proudly manufactures it in the USA.
Gibson 614001 vs Stock vs Injen Comparison
| Feature | Stock Exhaust | Gibson 614001 | Injen (Typical) |
|---|---|---|---|
| Material | Mild Steel | 409 Stainless | Stainless Steel |
| Power Gains | None | 10-15 HP / 15-20 lb-ft | Similar range |
| Sound Character | Quiet | Aggressive but refined | Louder and more raw |
| Cabin Drone | Minimal | Low to moderate | Moderate to high |
| Installation | N/A | Bolt-on | Bolt-on |
| Long-Term Durability | Good | Excellent | Excellent |
Fitment — 2006 to 2011 Honda Element 2.4L FWD Only
This exhaust is designed exclusively for FWD models.
| Year | Make | Model | Trim | Drivetrain | Engine |
|---|---|---|---|---|---|
| 2006 | Honda | Element | EX | FWD | 2.4L |
| 2007 | Honda | Element | EX | FWD | 2.4L |
| 2008 | Honda | Element | EX | FWD | 2.4L |
| 2009 | Honda | Element | EX | FWD | 2.4L |
| 2010 | Honda | Element | EX | FWD | 2.4L |
| 2011 | Honda | Element | EX | FWD | 2.4L |
Full Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 614001 |
| UPC | 677418017144 |
| System Type | Cat-Back Single Exhaust |
| Tubing | 2.25 inch 409 Stainless Steel, Mandrel Bent |
| Muffler | SuperFlow – 6 in. Round, 24 in. Length, Baffled & Chambered |
| Tip | 3.5 inch Polished T304 Stainless, Round Slash-Cut, Clamp-On |
| Exit Location | Straight Out the Back |
| Installation | Bolt-On – No Welding Required |
| Hardware Included | All Clamps and Factory-Style Hangers |
| Shipping Weight | 37 lbs |
| Country of Origin | Made in USA |
| Warranty | Lifetime Limited Warranty |
Installation Guide
The Gibson 614001 is designed as a complete bolt-on system. Most installs can be completed in 1 to 2 hours with basic hand tools.
Tools Typically Required:
- Socket set and ratchet
- Wrenches
- WD-40 or penetrating oil
- Jack and jack stands (or lift)
Installation Steps:
- Safely raise and support the vehicle.
- Apply penetrating oil to factory bolts and hangers.
- Disconnect the exhaust at the flange behind the catalytic converter.
- Remove the old system and install the new Gibson exhaust from front to back.
- Position the 3.5 inch tip and tighten all clamps.
- Verify clearance and check for leaks after the system reaches operating temperature.
Note: Some owners have reported needing minor adjustments for perfect fitment. Professional installation is recommended if you are not experienced with exhaust work.
50-State Legal & Warranty Protection

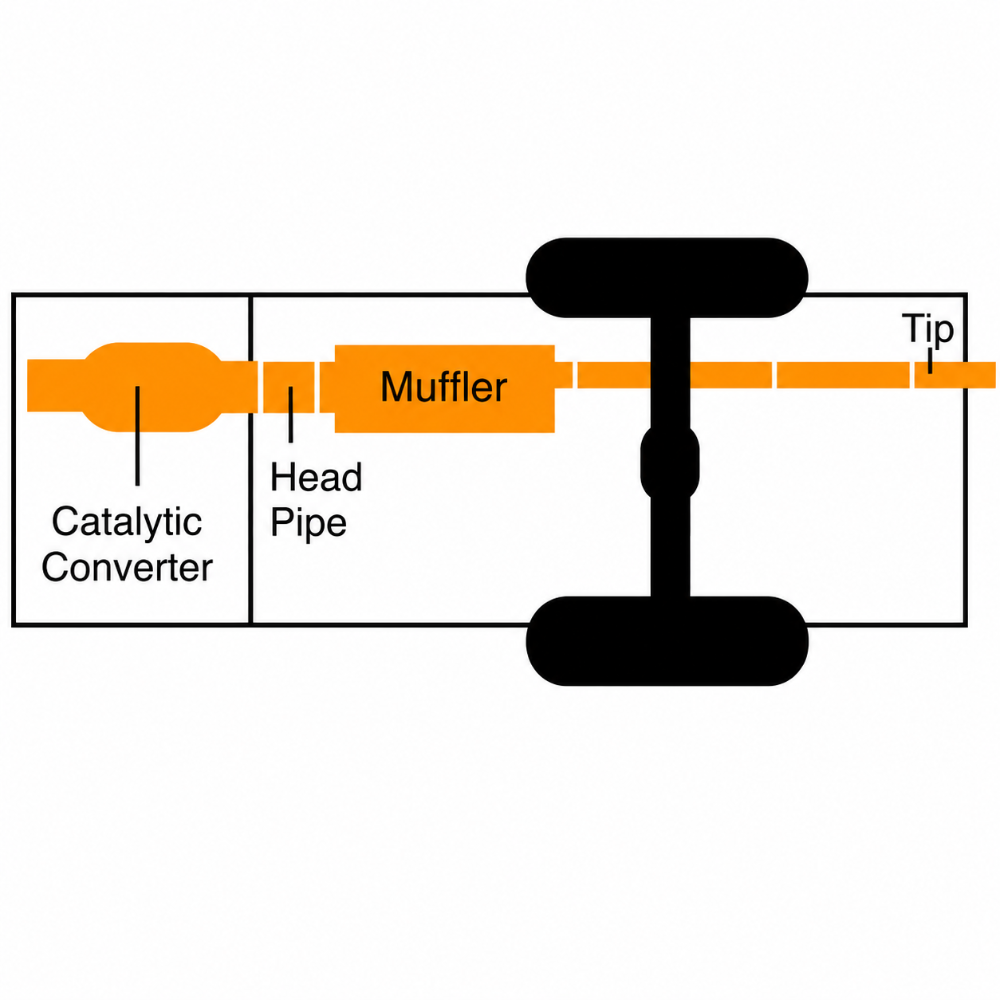

This is a true cat-back system. It installs after the catalytic converter and does not modify emissions equipment. Under the Magnuson-Moss Warranty Act, installing the Gibson 614001 cannot void your factory warranty unless it is proven to be the direct cause of a failure.
Stainless vs Aluminized Version
Gibson also offers this exhaust in aluminized steel as part number 314001. The 614001 stainless version provides superior long-term corrosion resistance.
Frequently Asked Questions
Does the Gibson 614001 fit AWD Honda Element models?
No. This exhaust is designed only for FWD models of the 2006–2011 Honda Element 2.4L.
Is there noticeable drone inside the cabin?
Most Element owners report that the SuperFlow muffler keeps interior drone relatively low compared to louder aftermarket systems. Some drivers notice a moderate increase on long highway trips.
Does this exhaust require modifications to install?
It is designed as bolt-on, but some owners have needed minor adjustments. Professional installation is recommended for best results.
How does it compare to the Injen exhaust?
The Gibson is typically more affordable and slightly more refined in drone control. The Injen tends to be louder and more aggressive.
How much power does it really add?
Gibson’s dyno testing shows gains of 10 to 15 horsepower and 15 to 20 lb-ft of torque, with the strongest improvements between 1,800 and 3,000 RPM.
Is this exhaust too loud for daily driving?
Most daily drivers find the sound level enjoyable without being excessive. It is louder than stock but still reasonable for regular use.
Is the Gibson 614001 legal in California?
Yes. It is a cat-back system and does not modify emissions equipment.
Will it void my Honda warranty?
No. The Magnuson-Moss Warranty Act protects you when installing aftermarket exhaust systems like this one.
