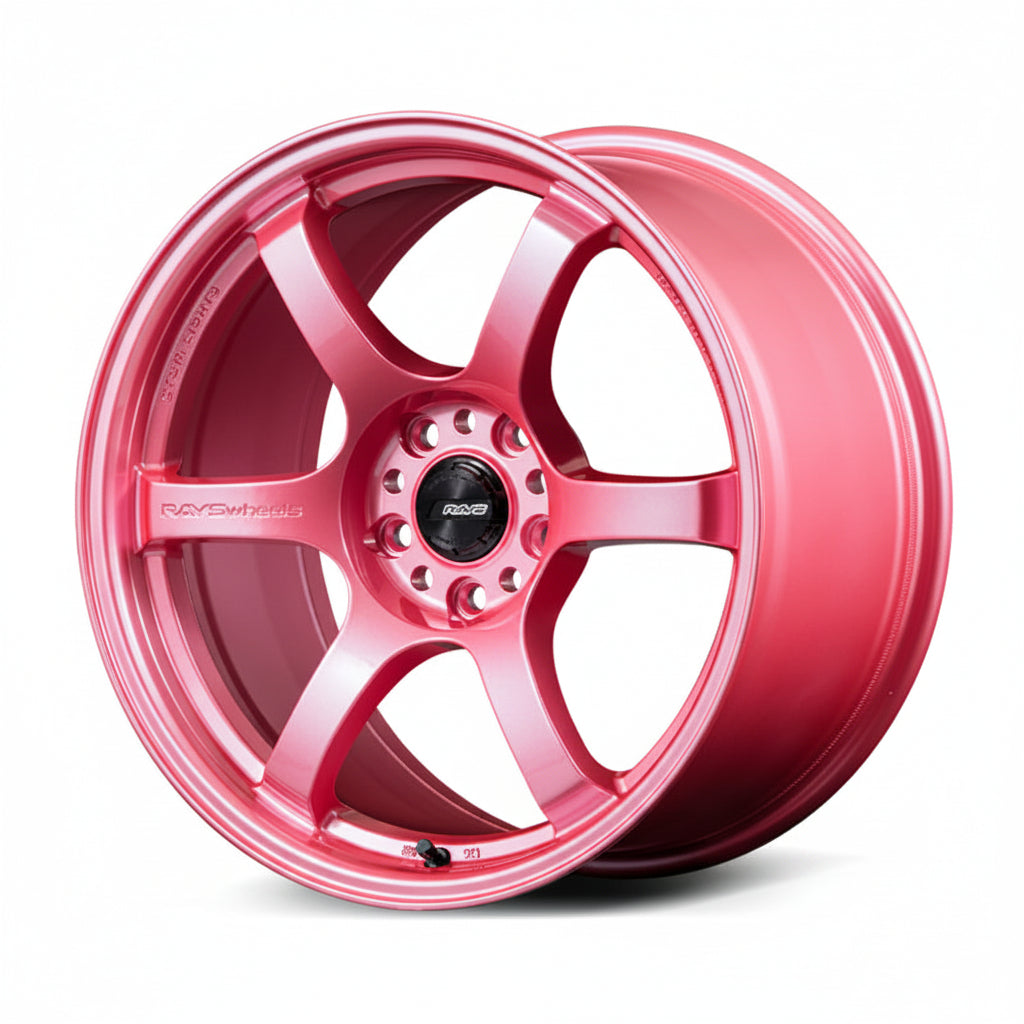

Gram Lights 57DR 18x8.5 Wheel in Sakura Pink
This is an 18x8.5 cast one-piece wheel from RAYS' Gram Lights 57DR line in the Sakura Pink finish, sized for a 5x114.3 bolt pattern with a +37mm offset.
What It Fits
5x114.3 bolt pattern vehicles. Confirm offset, backspacing, and fender clearance for the specific vehicle before ordering.
What It Does
Provides an 18x8.5 wheel with a more conservative +37mm offset for a flush stance on 5x114.3-bolt-pattern platforms, built to RAYS' JWL+R (Japan Light Alloy Wheel) safety standard.
Construction
Cast one-piece construction in the Sakura Pink (PPP) finish.
What's Included
- 1 Gram Lights 57DR wheel, 18x8.5, Sakura Pink
- Center cap
- No. 21 black air valve
Compatibility Limits
Requires a 5x114.3 bolt pattern. Some vehicle grades cannot use this wheel per RAYS' fitment guidance; confirm application-specific fitment before ordering. Lug nuts and TPMS sensors, if required, are not included.
Installation
- Confirm the vehicle's bolt pattern and center bore match this wheel's 5x114.3 pattern, using a hub-centric ring if needed.
- Mount the wheel using lug nuts appropriate for the wheel's seat type, torqued to the vehicle manufacturer's specification.
- Install the included center cap and air valve.
- Check tire and fender clearance through full steering lock and suspension travel before driving.
- Re-torque lug nuts after the first 50-100 miles of driving.
FAQ
What bolt pattern does this wheel use?5x114.3.
What size and offset is this wheel?18x8.5 with a +37mm offset.
Is a center cap included?Yes, a center cap and a black No. 21 air valve are included.
How is this wheel constructed?Cast one-piece construction.
What finish is this wheel?Sakura Pink (PPP), a RAYS factory color option for the 57DR.
Does this wheel meet a safety standard?Yes, it is built to the JWL+R Spec1 safety standard.
How does the 57DR offset compare to the 57CR?This 57DR is +37mm at 18x8.5, a narrower and more conservative fitment than the wider 57CR at 18x10.5 +22mm.
Will this wheel fit any 5x114.3 vehicle?Not automatically. Confirm offset, backspacing, and fender clearance for your specific vehicle, since some vehicle grades cannot use this wheel per RAYS' own fitment guidance.
