Finally, A Pulley Tool That Actually Works

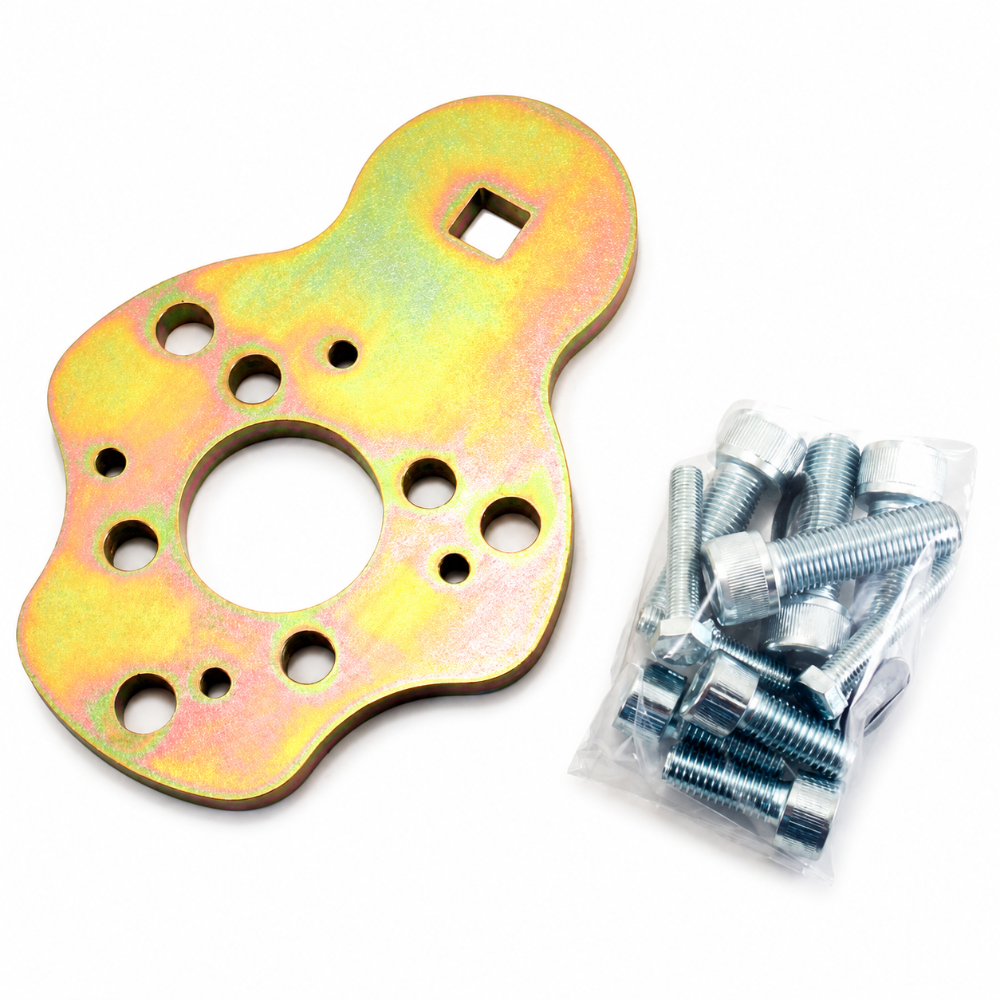

The GRMGRM095011 is the GrimmSpeed Crank Pulley Removal and Install Tool, built to end the frustration of using bolts stuck through boards or random screws welded to bars just to hold a crank pulley in place. This tool was engineered to work with both styles of factory Subaru crank pulleys as well as the GrimmSpeed Lightweight Crank Pulley, making it a true one tool solution for the job. Laser cut from thick 12L14 plate and finished in yellow zinc chromate, it is built to survive shop use for years without wearing out.
Key Features
- Works with both styles of factory Subaru crank pulleys plus the GrimmSpeed aftermarket pulley
- Laser cut from a 9.5mm thick plate of 12L14 steel for serious durability
- Yellow zinc chromate coating resists corrosion over years of use
- Integrated 1/2 inch socket wrench location for maximum leverage
- Includes plastic washers that protect the pulley finish during use
- A first of its kind design that eliminates the need for improvised tools
Specifications
| Detail | Value |
|---|---|
| MPN | GRMGRM095011 |
| Material | 12L14 Steel, 9.5mm plate |
| Finish | Yellow zinc chromate |
| Drive Size | 1/2 inch socket wrench |
| Compatibility | Both OEM Subaru crank pulley styles and GrimmSpeed aftermarket pulley |
| UPC | Not published by manufacturer |
What's Included
- GrimmSpeed crank pulley removal and install tool
- Plastic protective washers
About GrimmSpeed
GrimmSpeed is a Minnesota based manufacturer known for designing and building performance parts and shop tools for the Subaru platform. Every GrimmSpeed product is engineered in house and tested in real shop conditions, which is why technicians and enthusiasts alike reach for GrimmSpeed tools when factory options fall short.
FAQ
What is the GRMGRM095011?
It is the GrimmSpeed Subaru Crank Pulley Removal and Install Tool used to hold the crank pulley steady while loosening or tightening the center bolt.
Will this tool work with my factory pulley?
Yes, it is designed to work with both styles of OEM Subaru crank pulleys.
Does it work with the GrimmSpeed Lightweight Crank Pulley too?
Yes, it was engineered for full compatibility with the GrimmSpeed aftermarket pulley as well.
What material is the tool made from?
It is laser cut from a 9.5mm thick plate of 12L14 steel.
Will this scratch my new pulley?
No, the included plastic washers sit between the tool and the pulley face to protect the finish.
What size socket wrench does it accept?
It has an integrated 1/2 inch socket wrench location for applying torque.
Is this tool vehicle specific?
No, it is a universal Subaru tool that works across multiple chassis and engine generations.
What coating protects the tool from rust?
The tool is finished in yellow zinc chromate for long term corrosion resistance.
Install Instructions
- Remove the air intake duct to access the crank pulley area.
- Loosen the accessory belt and remove it from the crank pulley.

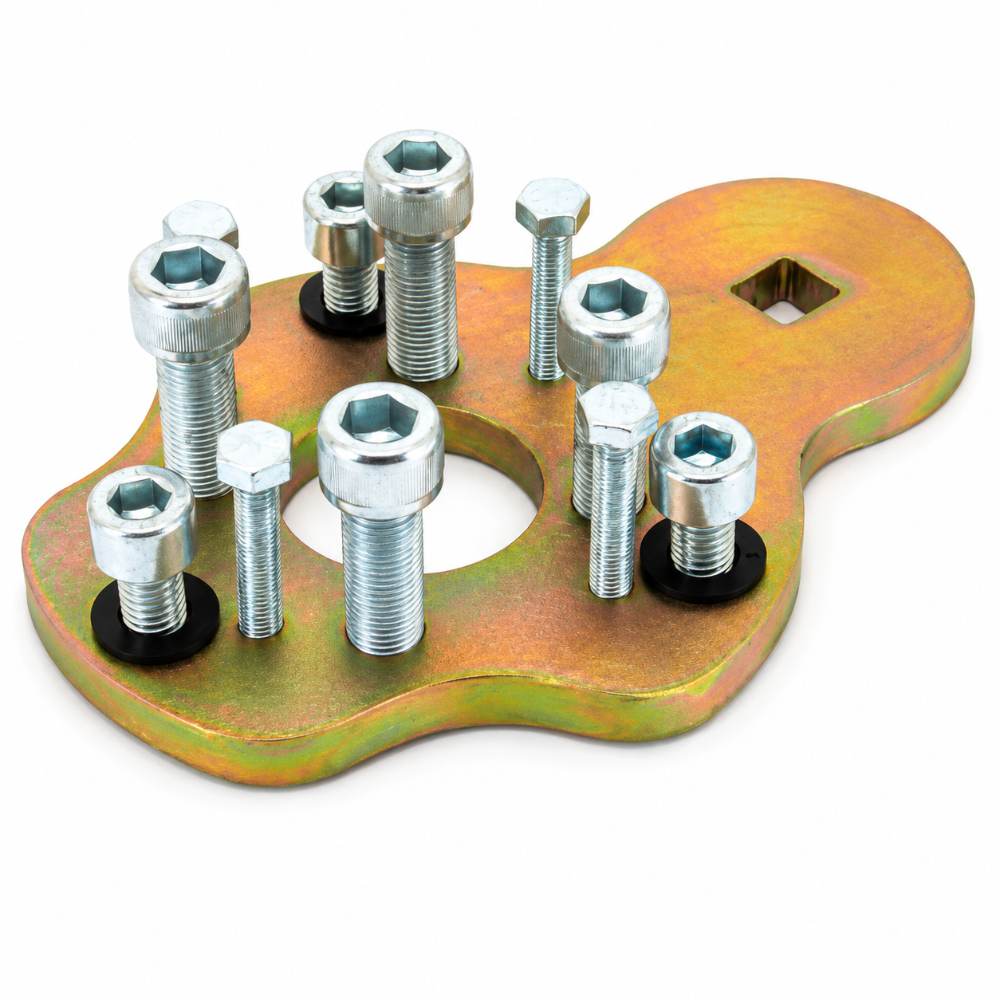

- Select the correct set of pins for your OEM pulley style and install them into the GrimmSpeed tool using the appropriate hex wrench.

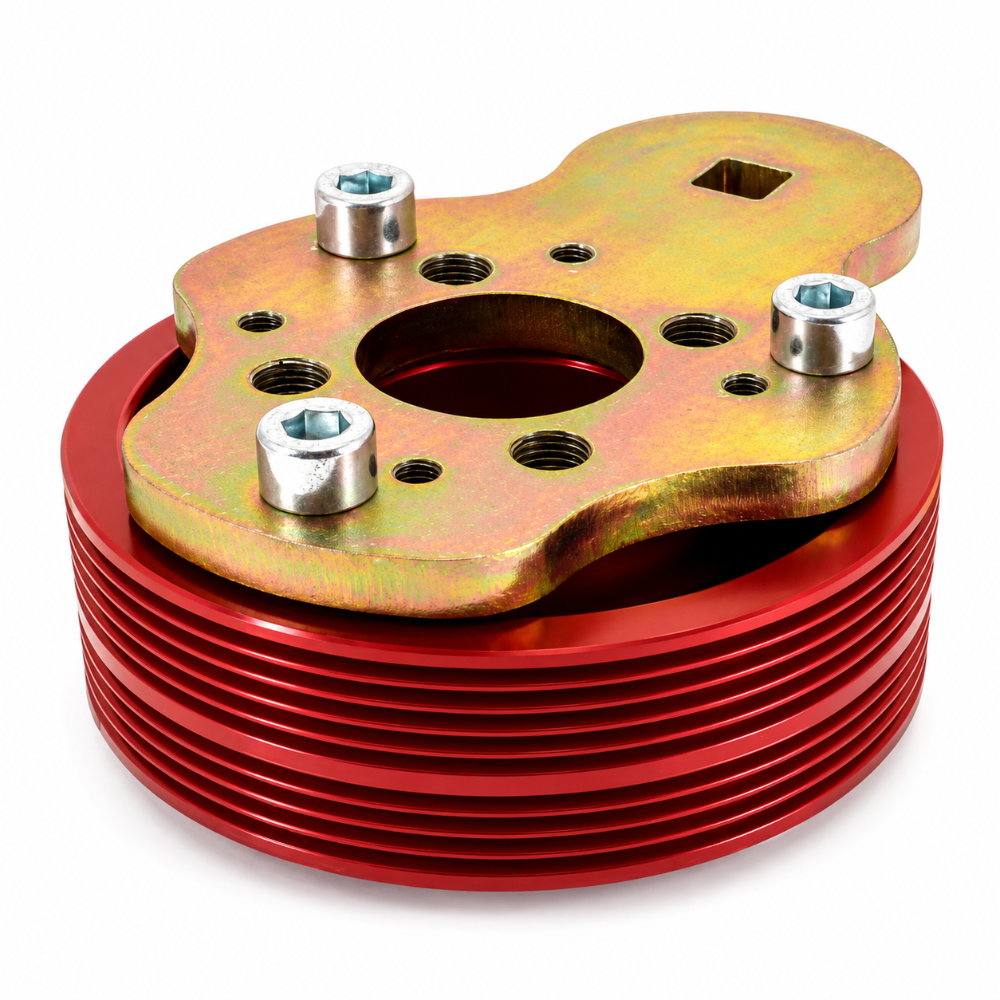

- Insert a 1/2 inch drive ratchet or breaker bar into the tool and fit the tool onto the crank pulley.
- Use a socket and breaker bar on the center crank bolt while holding the tool steady to loosen or tighten the bolt.
- Remove or install the pulley as needed, using the included plastic washers to protect the pulley finish.
- Torque the crank pulley bolt to manufacturer specification and reinstall the belt and intake duct.
