-15%
GSC P-D BMW S58 Beehive Valve Spring & Ti Retainer Kit (Max Boost 70PSI)-Valve Springs, Retainers-GSC Power Division
Click to zoom in

GSC P-D BMW S58 Beehive Valve Spring & Ti Retainer Kit (Max Boost 70PSI)

GSC5023
GSC5023
Valve Springs, Retainers
19 Units In Stock - Ships Next Business Day
$ 700.00 $ 595.00
$ 595.00

SKU: 5023

GSC Power-Division BMW S58 Beehive Valve Spring & Ti Retainer Kit (Max Boost 70PSI) 2020+

This GSC Power-Division kit equips BMW S58 engines with beehive valve springs and titanium retainers built for extreme boost and RPM. It fits 2020+ BMW M3, M4, X3 M, X4 M, and M2 models with the S58 3.0L twin-turbo engine. Expect stable valve operation up to 10,000 RPM and 70PSI boost to support forced induction builds without float.

Key Features

  • Beehive Spring Design: Progressive beehive shape cuts valvetrain mass by 20% over stock for quicker response and higher rev limits.
  • Titanium Retainers: Lightweight at 7 grams each with .050" lock groove clearance ensures durability under high boost loads.
  • Spring Pressures: 175lbs seat at 1.720" and 525lbs open at 1.200" deliver firm control to resist valve float at 70PSI.
  • Coil Bind Height: 0.780" with 285lbs/in rate allows safe operation to 10,000 RPM in race applications.

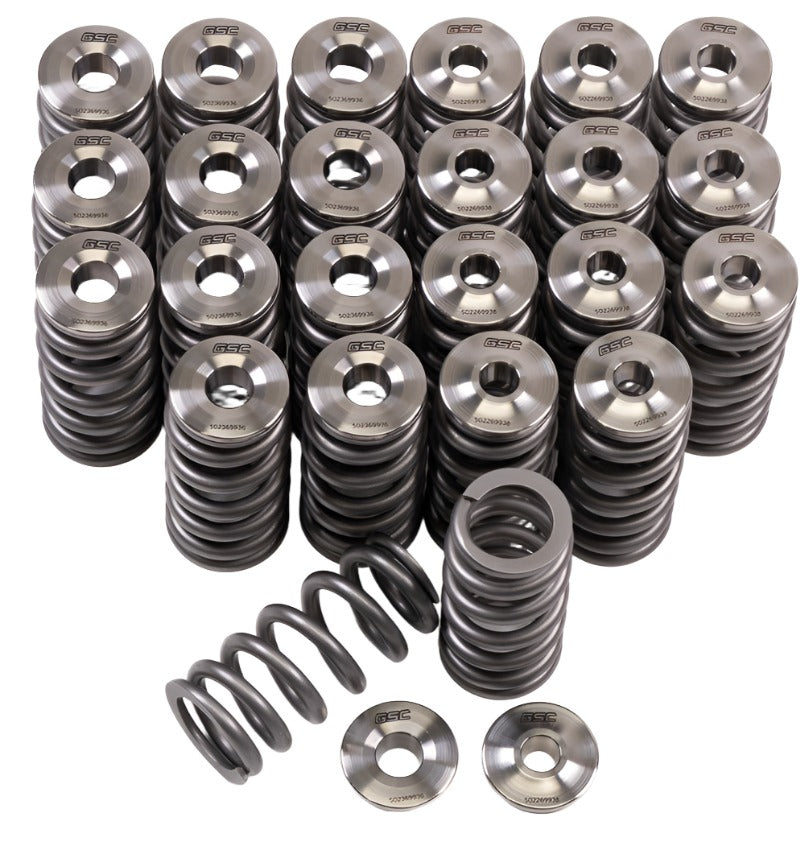

  • Complete Kit: 24 beehive springs and 24 Ti retainers cover full cylinder head for direct S58 replacement.

Product Notes

  • Inspect valvetrain components during install for compatibility with aftermarket cams.
  • Maintain proper installed heights using GSC height cards for optimal pressure.
  • Ships in protective foam-lined box to prevent spring damage.

Installation Notes

  • Professional installation recommended.
  • Requires spring compressor tool rated for 600lbs pressure.
  • Compatible with OEM locks and seats. no machining needed on stock heads.

This Part Fits

Year Make Model Submodel
2023-2024 BMW M2 G87 S58 3.0L
2021-2024 BMW M3 G80 S58 3.0L Base/Comp/CSL
2021-2024 BMW M4 G82/G83 S58 3.0L Base/Comp/CSL
2020-2024 BMW X3 M G01 S58 3.0L Base/Comp
2020-2024 BMW X4 M G02 S58 3.0L Base/Comp

Why Choose GSC Power-Division?

  • Proven in drag racing and track events with S58 builds pushing 1000+whp.
  • CNC machined in USA from premium materials for consistent pressures.
  • Backed by dyno testing data and real-world boost validation to 70PSI.

Frequently Asked Questions

  • Q: Does this fit non-Competition S58 models?
    A: Yes, direct bolt-on for all 2020+ BMW S58-equipped M3, M4, X3 M, X4 M, and M2 variants including base, Competition, and CSL.
  • Q: What materials are used in the springs and retainers?
    A: High-tensile steel beehive springs with chrome silicon wire and forged titanium retainers for heat resistance up to 1000F.
  • Q: Is there a warranty on this kit?
    A: GSC offers a 1-year unlimited mileage warranty against manufacturing defects when installed by certified shops.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam inserts in 14x10x8 inch corrugated box
  • Weight: 6 lbs
