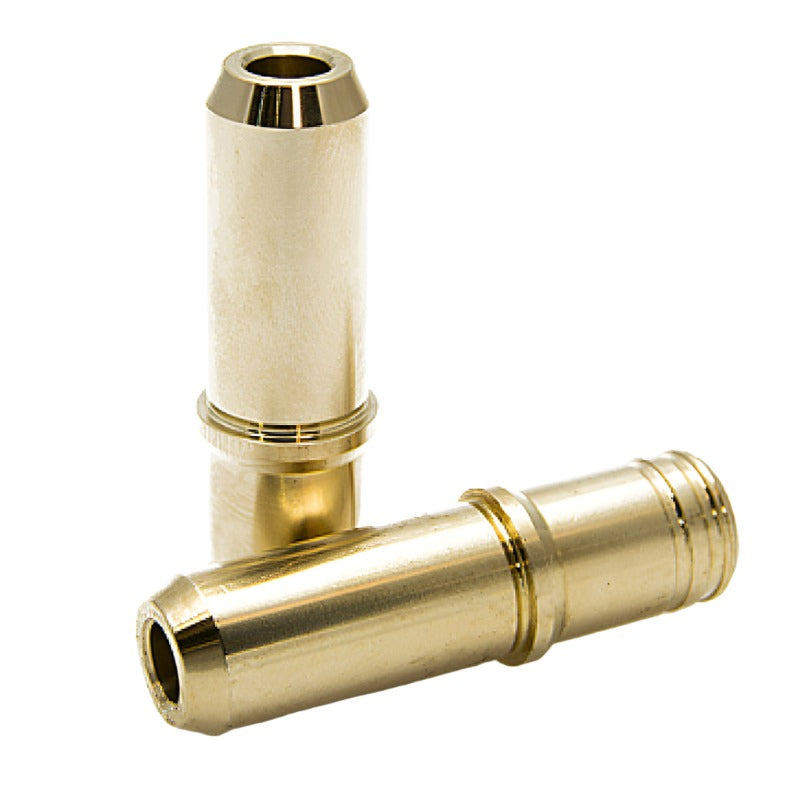

GSC Power-Division Honda K-Series VTEC K20/24 Manganese Bronze Intake Valve Guide Stopper Style - SET OF 8
Enhance your Honda K-Series engine reliability with GSC Power-Division Manganese Bronze Intake Valve Guide Stopper Style set of 8 part number 3024-8. These guides fit K20 and K24 VTEC cylinder heads in models like Acura RSX Type-S Civic Si and TSX. They provide consistent valve stem alignment and superior wear resistance for track or street performance.
Key Features
- Manganese Bronze Material: Delivers high strength and low friction for extended service life under high RPM and heat conditions
- Stopper Style Design: Includes built-in flange to set exact installation depth and prevent sinking into the head during assembly
- Precision Machined Tolerances: Matches OEM specifications for K20 K24 intake valves ensuring tight seal and smooth operation
- Intake Valve Specific: Optimized dimensions for K-Series VTEC intake ports handling larger valves in performance heads
- Complete Set of 8: Covers all intake valves for full engine rebuilds saving time on sourcing individual pieces
Product Notes
- Direct replacement for worn guides in performance K-Series builds
- Inspect valve seats during installation for compatibility
- Ships in protective plastic tray to prevent damage
Installation Notes
- Professional installation recommended.
- Use valve guide driver tool and finish with reamer for 0.001-0.003 inch stem clearance
- Compatible with OEM Honda valves and most aftermarket oversized stems up to 6.98mm
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2006 | Acura | RSX | Type-S |
| 2006-2011 | Honda | Civic | Si |
| 2004-2008 | Acura | TSX | Base |
| 2016-2021 | Honda | Civic | Type R |
| 2001-2005 | Honda | Civic Type R | EP3 JDM |
| 2007-2011 | Honda | CR-V | EX-L |
Why Choose GSC Power-Division?
- Proven in drag racing and endurance events worldwide
- Premium alloys tested for extreme boost and RPM
- CNC machined in USA for consistent quality control
Frequently Asked Questions
-
Q: Will this fit my 2006 Civic Si K20Z3 head?
A: Yes fits all K20 VTEC and K24A1 A2 VTEC heads including K20Z3 in 2006-2011 Civic Si -
Q: Why manganese bronze over other materials?
A: Manganese bronze offers better heat dissipation and wear resistance than phosphor bronze ideal for aggressive cam profiles -
Q: What warranty coverage applies?
A: Limited lifetime warranty against manufacturing defects when installed by certified shop
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 6 x 4 x 1.5 inches
- Weight: 0.45 lbs
