GSC P-D S2 Toyota 2JZ-GE VVTI (JDM Only) Cams 274/274 Billet - Black Ops Auto Works
Click to zoom in

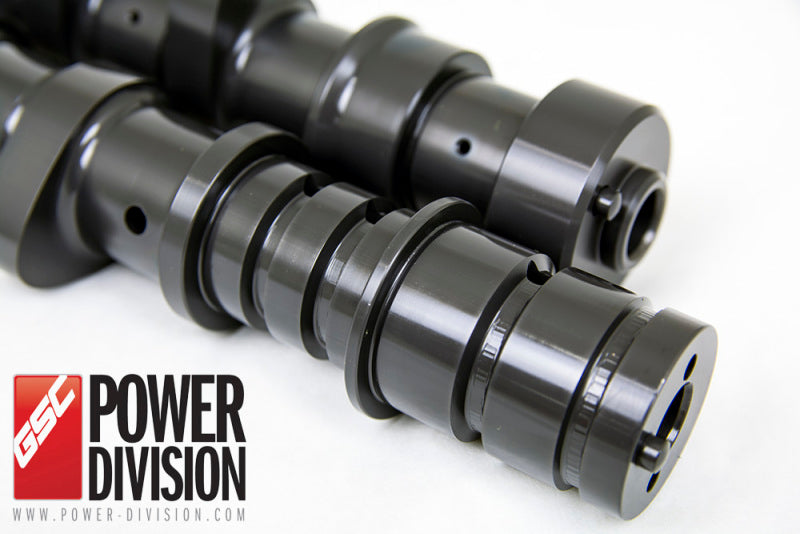

GSC P-D S2 Toyota 2JZ-GE VVTI (JDM Only) Cams 274/274 Billet

GSC7031S2
GSC7031S2
Camshafts
Out of stock
$ 1,325.00 $ 1,126.25

SKU: 7031S2

GSC Power-Division P-D S2 Toyota 2JZ-GE VVTI (JDM Only) Cams 274/274 Billet - 1996-2005 JDM Models

GSC Power-Division S2 camshafts fit Toyota 2JZ-GE VVTi engines in JDM Chaser Cresta Mark II and Aristo models from 1996 to 2005. These billet cams with 274-degree intake and exhaust duration produce strong power gains above 5500 RPM for turbo and naturally aspirated builds. Precision profiles maintain drivability while increasing top-end horsepower.

Key Features

  • Billet 8620 Steel Cores: Provide exceptional strength to handle high spring pressures and extended RPM limits without flexing
  • 274° Duration at 0.050": Delivers broad mid-to-high RPM torque and horsepower for street and track applications
  • 0.391" Lift Intake/Exhaust: Allows maximum airflow through valves without requiring extensive clearance machining
  • 114° Lobe Center Line: Balances overlap for smooth idle and responsive throttle in VVTi-equipped engines
  • Valve Lash 0.013"-0.015": Ensures accurate timing and longevity with proper adjustments during installation

Product Notes

  • JDM 2JZ-GE VVTi engines only, not compatible with USDM or GTE variants
  • Pair with upgraded valve springs and titanium retainers for full potential
  • Arrives as matched primary set in protective sleeves

Installation Notes

  • Professional installation recommended.
  • Measure valve-to-piston clearance, minimum 0.080" intake 0.100" exhaust required
  • Retains compatibility with OEM timing chain and VVTi actuators

This Part Fits

Year Make Model Submodel
1996-2001 Toyota Chaser JZX100 Tourer V 2JZ-GE VVTi
1996-2001 Toyota Cresta JZX100 Tourer V 2JZ-GE VVTi
1997-2001 Toyota Mark II JZX100/JZX110 Tourer V 2JZ-GE VVTi
1997-2005 Toyota Aristo JZS161 2JZ-GE VVTi

Why Choose GSC Power-Division?

  • Proven designs from years of dyno testing on 2JZ platforms
  • Hand-finished lobes for consistent performance and durability
  • Manufactured in the USA with tolerances under 0.0002"

Frequently Asked Questions

  • Q: Will these cams fit non-JDM 2JZ-GE engines?
    A: No, designed exclusively for JDM VVTi 2JZ-GE valvetrain geometry in Chaser Cresta Mark II and Aristo
  • Q: What material are the cores made from?
    A: High-strength billet 8620 steel, heat-treated and nitrided for wear resistance
  • Q: What is the warranty coverage?
    A: Limited lifetime warranty against manufacturing defects when installed by certified shop

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Secure tube packaging approximately 24" x 6" x 6"
  • Weight: Approximately 7 lbs

Request For Information

Have questions about GSC P-D S2 Toyota 2JZ-GE VVTI (JDM Only) Cams 274/274 Billet? Fill out the form below and we'll get back to you by the next business day.
