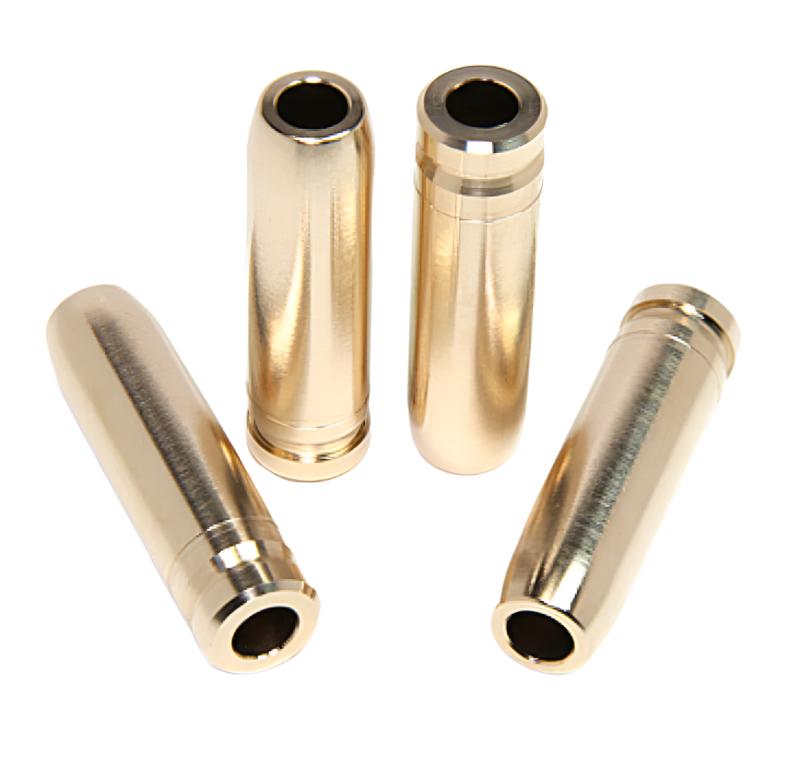

The GSC Power Division Toyota 2JZ Manganese Bronze Exhaust Valve Guide - Single is a valve guides for an engine platform that requires exact vehicle and cylinder-head confirmation. Match manufacturer part number 3031, engine code, cylinder-head configuration, dimensions, position, material, and package quantity before ordering.
Key Features
- Precision Dimensions: Outer diameter 0.315 inches ID 0.259 inches length 1.378 inches matches OEM specs for drop-in installation in 2JZ-GTE heads.
- Tight Clearance Design: Allows exhaust stem clearances of 0.0018-0.0025 inches for reduced oil consumption and improved valve sealing during high RPM operation.
- Performance Focused: Engineered for turbocharged 2JZ builds supporting over 1000HP with better heat dissipation than cast iron guides.
- Weight: 1 oz (0.06 lbs).
- Manganese Bronze Material: High copper content alloy with manganese delivers strong tensile strength and thermal conductivity to resist wear in exhaust ports under high boost.
- Yes, designed specifically for exhaust position in 2JZ-GTE cylinder heads used in USDM Supra and JDM models like Aristo.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Verification required | Confirm vehicle | Confirm model | Match the exact engine platform, cylinder-head configuration, dimensions, and current GSC application before ordering |
Specifications
| Brand | GSC Power Division |
|---|---|
| Manufacturer Part Number | 3031 |
| Product Type | Valve Guides |
| Fitment Type | Fitment Verification Required |
| Condition | New |
What's Included
One new GSC Power Division valve guides package identified by manufacturer part number 3031, in the size and quantity stated by the title. Springs, retainers, locks, valves, guides, seals, followers, shims, bearings, fasteners, gaskets, lubricants, and other assembly parts are included only when expressly listed for this exact part number.
About GSC Power Division
GSC Power Division develops performance camshafts, valves, valve guides, springs, retainers, seals, and related valvetrain components for import and domestic engine platforms.
Related GSC Power Division Products
- Shop all GSC Power Division products
- GSC Honda K20C1 CTR (STD) Exhaust Valve Guide - Set of 8
- GSC P-D 03-07 Dodge Viper 2.615in TL 0.5145in OD 0.311in ID Intake/Exhaust Valve Guide -Set of 10
- GSC P-D 4B11T Manganese Bronze Exhaust Valve Guide - Set 8
Frequently Asked Questions
Do these valves or guides install without machining?
Machining requirements depend on the exact cylinder head, component dimensions, oversize specification, and measured wear. A qualified machine shop should inspect and size the parts before assembly.
How do I confirm intake versus exhaust compatibility?
Match the exact GSC part number, position, stem and head dimensions, material, guide size, seal type, and package quantity. Intake and exhaust parts should not be interchanged without explicit GSC guidance.
What clearances must be checked during cylinder-head assembly?
Measure valve-to-guide clearance, installed height, retainer-to-seal clearance, coil bind, valve-to-piston clearance when applicable, and every current GSC and service-manual specification.
Installation Instructions
Follow current GSC Power Division instructions and the vehicle service manual for part number 3031. Have a qualified engine builder inspect the cylinder head and mating components, perform required machining, measure every specified clearance, verify timing and free movement, and use the correct lubrication, fasteners, torque procedures, and clean assembly practices before startup.
