GSC P-D Toyota 2JZ / Nissan VR38DETT 0.060in Thick 1.085in OD 0.725in ID Spring Seat Kit (Set of 24) - Black Ops Auto Works
Click to zoom in

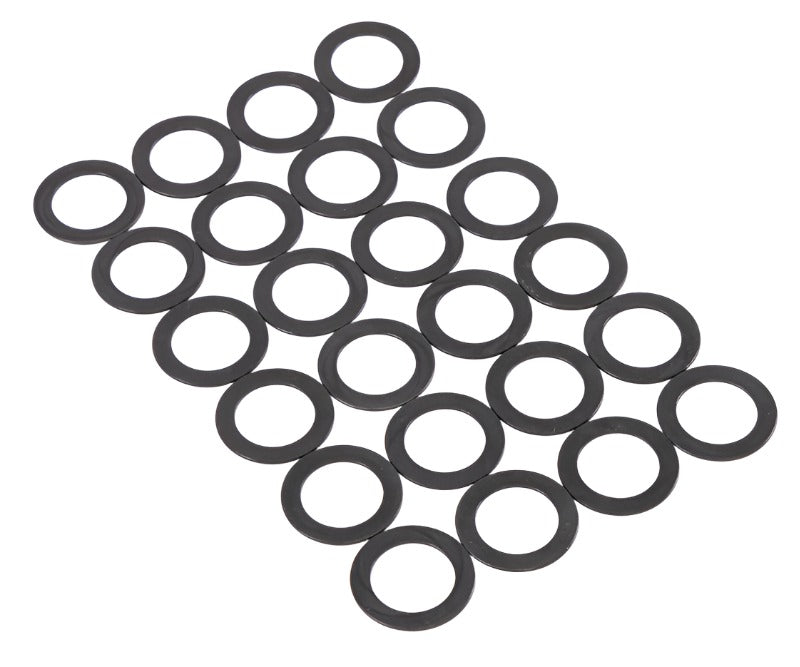

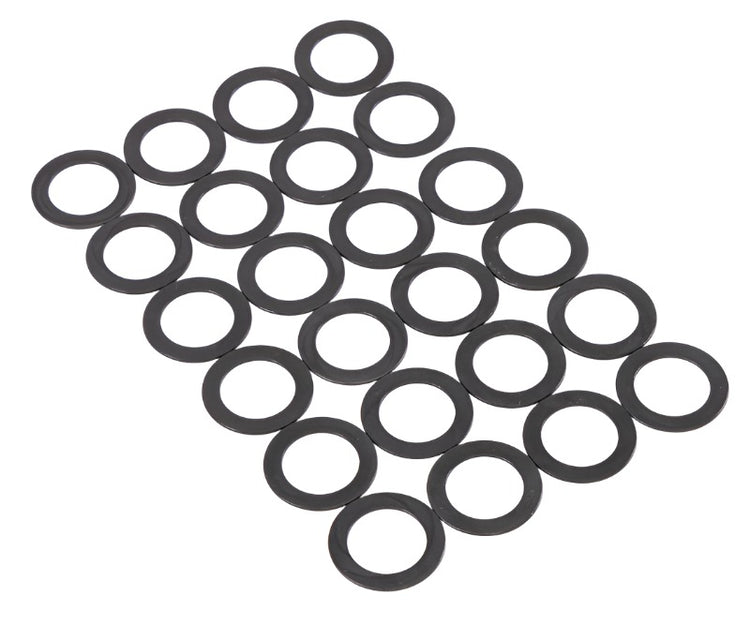

GSC P-D Toyota 2JZ / Nissan VR38DETT 0.060in Thick 1.085in OD 0.725in ID Spring Seat Kit (Set of 24)

GSC1085
GSC1085
Valve Springs, Retainers
13 Units In Stock - Ships Next Business Day
$ 39.60 $ 33.66
$ 33.66

SKU: 1085

GSC P-D Toyota 2JZ-GTE 1991-2005 Nissan VR38DETT 2009+ 0.060in Thick 1.085in OD 0.725in ID Spring Seat Kit (Set of 24)

Upgrade your valvetrain with GSC Power-Division spring seats designed for Toyota 2JZ-GTE engines in Supra and Aristo plus Nissan VR38DETT in GT-R. These seats fit precisely into the 2JZ-GTE spring cup to lower install height and support higher spring pressure for demanding RPM. Part GSC1085 delivers reliable contact for performance builds.

Key Features

  • Precision Dimensions: 1.085in (27.56mm) OD 0.725in (18.4mm) ID 0.060in (1.5mm) thick ensures exact fit and stability under high loads
  • Complete Set of 24: Provides full coverage for one engine with no shortages during assembly
  • 2JZ-GTE Cup Compatible: Engineered for tight factory spring cups to seat flush without modification
  • Lower Install Height: Reduces height by 0.060in to allow greater spring pressure for valve control at high RPM
  • High-Strength Steel Construction: Billet chromoly withstands extreme boost and revs in race applications

Product Notes

  • Reduces spring install height verify coil bind clearance with high lift cam profiles before use
  • Pair with GSC valve springs for matched performance gains
  • Packed in protective case for safe handling and storage

Installation Notes

  • Professional installation recommended.
  • Measure installed height and check bind at full lift after assembly
  • Compatible with factory retainers and GSC retainers no additional hardware required

This Part Fits

Year Make Model Submodel
1993-2002 Toyota Supra JZA80 2JZ-GTE
1991-2005 Toyota Aristo JZS147 JZS161 2JZ-GTE
1996-2001 Toyota Chaser JZX100 Tourer V 2JZ-GTE
1996-2001 Toyota Mark II JZX100 Tourer V 2JZ-GTE
2009-2024 Nissan GT-R R35 VR38DETT

Why Choose GSC Power-Division?

  • Proven in drag racing and high-boost 2JZ VR38 builds worldwide
  • CNC machined from chromoly for durability and repeatability
  • Direct replacement design matches OEM tolerances with performance edge

Frequently Asked Questions

  • Q: Does this fit 1993-1998 Toyota Supra 2JZ-GTE and 2009+ Nissan GT-R VR38DETT?
    A: Yes fits all listed 2JZ-GTE variants including Supra JZA80 Aristo JZS147/161 and GT-R R35 VR38DETT with exact spring cup match
  • Q: What material are the spring seats made from?
    A: Precision machined from high-tensile chromoly steel for strength under high spring pressures and RPM
  • Q: Is there a warranty and what about installation?
    A: Backed by GSC one-year warranty professional install advised measure coil bind with your cam specs

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: In stock - ships same or next business day
  • Packaging: Compact protective box 6 x 4 x 2 inches
  • Weight: 0.4 lbs
