GSC P-D Toyota 2JZGTE/2JZGE/VVTI Variants Valve Spring Kit (set of 24) GSC Power Division GSC5744
GSC P-D Toyota 2JZGTE/2JZGE/VVTI Variants Valve Spring Kit (set of 24) GSC Power Division GSC5744
Click to zoom in

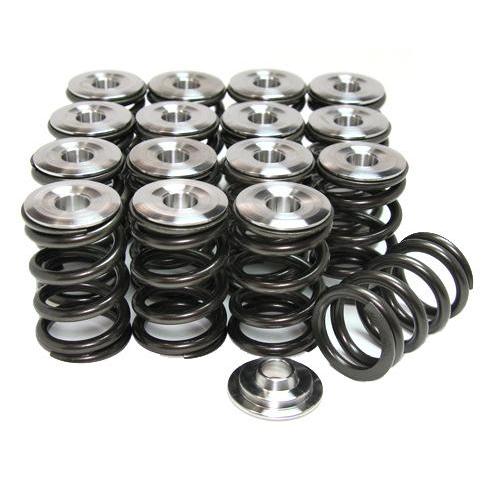

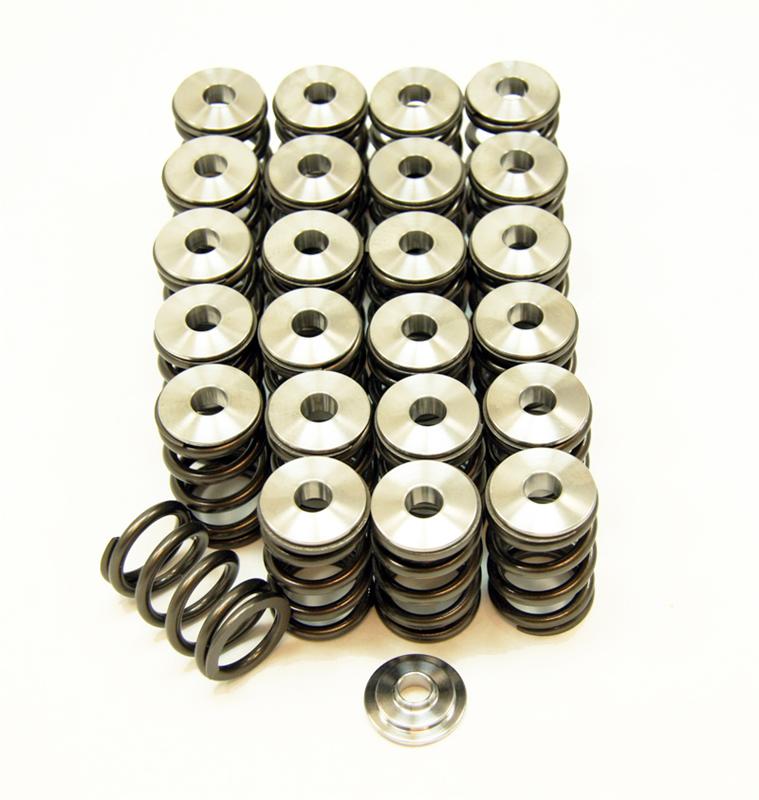

GSC P-D Toyota 2JZGTE/2JZGE/VVTI Variants Valve Spring Kit (set of 24)

GSC5744
GSC5744
Valve Springs, Retainers
4 Units In Stock - Ships Next Business Day
$ 498.47 $ 423.70
$ 423.70

SKU: 5744 | UPC: GSC5744

GSC P-D Toyota 2JZGTE/2JZGE/VVTI Variants Valve Spring Kit (set of 24) 1993-2005 Toyota Lexus 2JZ

This GSC Power-Division valve spring kit provides dual springs for all 24 valves in Toyota 2JZ-GTE 2JZ-GE and VVTi engines. It fits 1993-1998 Toyota Supra Twin Turbo plus Lexus GS300 GS400 IS300 and Aristo models. Strong valve control at high RPM comes from 126 lbs seat pressure to prevent float in aggressive builds.

Key Features

  • Dual Spring Design: Inner and outer springs per valve ensure stability up to 10000 RPM and support cams with 0.950 inch lift
  • Seat Pressure: 126 lbs at 1.900 inch installed height inner 21 lbs outer 105 lbs for consistent operation
  • Open Pressure: 289 lbs at 0.950 inch lift with 170 lbs/in spring rate handles boost and high revs
  • Super Clean Wire: Proprietary alloy reduces stress points for extended durability in race or street use
  • Precise Dimensions: Outer 1.480 inch OD 1.134 inch ID inner 1.060 inch OD 0.630 inch ID coil bind at 1.200 inch

Product Notes

  • Complete set includes 48 springs (24 inner 24 outer) for full 2JZ engine coverage
  • Pair with GSC retainers for peak performance and warranty coverage
  • Ships in protective foam-lined box to prevent damage

Installation Notes

  • Professional installation recommended.
  • Use quality valve spring compressor tool for safe removal and install
  • Compatible with OEM or aftermarket retainers and seals verify clearance

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Twin Turbo 2JZGTE
1992-1997 Lexus GS300 2JZGE
1998-2005 Lexus GS300 2JZGE VVTi
1998-2000 Lexus GS400 2JZGE VVTi
2001-2005 Lexus IS300 2JZGE VVTi
1991-2005 Toyota Aristo JZS147/161/171/183 2JZGE/GTE

Why Choose GSC Power-Division?

  • Engineered and manufactured in the USA with strict quality standards
  • Proven track record in drag racing and endurance builds
  • Advanced stress testing exceeds industry limits for reliability

Frequently Asked Questions

  • Q: Does this kit fit 1993-1998 Toyota Supra 2JZGTE non VVTi?
    A: Yes it directly replaces stock springs in all 2JZGTE variants including 93-98 Supra Turbo and VVTi updates
  • Q: What material and finish do the springs have?
    A: High tensile super alloy steel with black oxide coating for corrosion resistance and precise harmonics
  • Q: What is the warranty on these valve springs?
    A: Lifetime warranty against spring failure when installed with GSC titanium retainers and proper technique

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Secure box 10 x 8 x 6 inches
  • Weight: 5.4 lbs shipping weight
