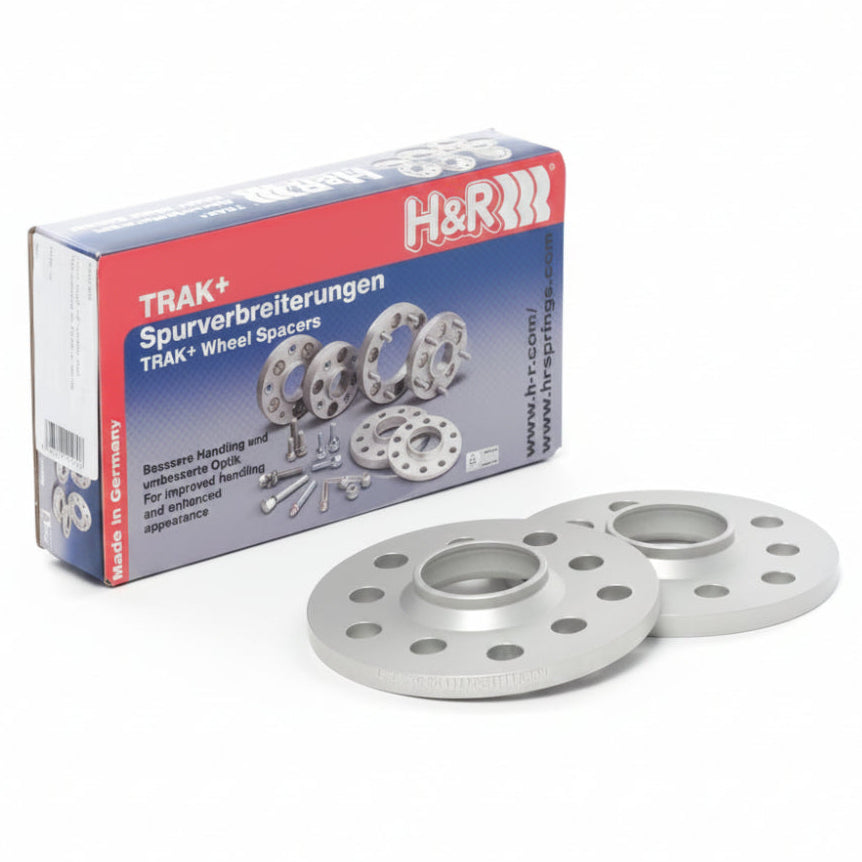

H&R Trak+ 5mm DRS Wheel Adaptor — 4/100 Bolt Pattern, 59.1mm Center Bore, 12x1.25 Stud Thread
H&R part 1024591 is a Trak+ 5mm DRS wheel adaptor for the 4/100 bolt pattern with a 59.1mm center bore and 12x1.25mm stud thread. H&R Trak+ spacers push the wheels outward for a flush, aggressive stance while remaining hubcentric for even load distribution and lateral support, just like the factory hub.
Key Features
- 5mm thickness, DRS (stud-conversion) style
- 4/100 bolt pattern, 59.1mm center bore
- 12x1.25mm stud thread
- Hubcentric design for even load distribution
- Constructed from a proprietary alloy stronger than 6061-T6 billet aluminum
Fitment
| Application | Details |
|---|---|
| Universal (bolt pattern specific) | Fits vehicles with 4/100 bolt pattern, 59.1mm center bore, 12x1.25 stud thread |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 1024591 |
| Thickness | 5mm |
| Bolt pattern | 4x100 |
| Center bore | 59.1mm |
| Thread | 12x1.25 stud |
What's Included
- 1 H&R Trak+ 5mm DRS wheel adaptor
About H&R
H&R Special Springs specializes in suspension and wheel fitment components, including sport springs, coilovers, and Trak+ wheel spacers engineered for precise fitment and performance.
FAQ
What bolt pattern does this adaptor fit?This adaptor fits a 4x100 bolt pattern with a 59.1mm center bore.
What does DRS mean for this spacer?DRS refers to a stud-conversion spacer that uses extended wheel studs pressed into the spacer body.
Is this adaptor vehicle specific?This adaptor fits any vehicle matching the 4/100 bolt pattern, 59.1mm center bore, and 12x1.25 stud thread specification; confirm these specs match your vehicle before ordering.
Is this adaptor hubcentric?Yes, this adaptor is hubcentric, featuring a full contact hub for even load force distribution and lateral support.
Is professional installation recommended?Yes, wheel spacer/adaptor installation should be performed by someone experienced with proper torque specifications and wheel fitment safety.
Will this adaptor affect my vehicle's wheel offset?Yes, adding an adaptor increases the effective wheel offset outward; confirm fender clearance before installation.
What material is this adaptor made from?This adaptor is made from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum.
Does this adaptor include lug nuts?Check the packaging for included lug nuts or hardware appropriate for the stud thread size.
Installation Instructions
- Support the vehicle safely and remove the wheel per standard procedure.
- Install the adaptor onto the hub, ensuring proper hubcentric seating and stud engagement.
- Reinstall the wheel over the adaptor and torque the lug nuts to the vehicle manufacturer's specification.
- Recheck lug torque after a short test drive.
