Precision Pressure Monitoring for Brake or Nitrous Systems

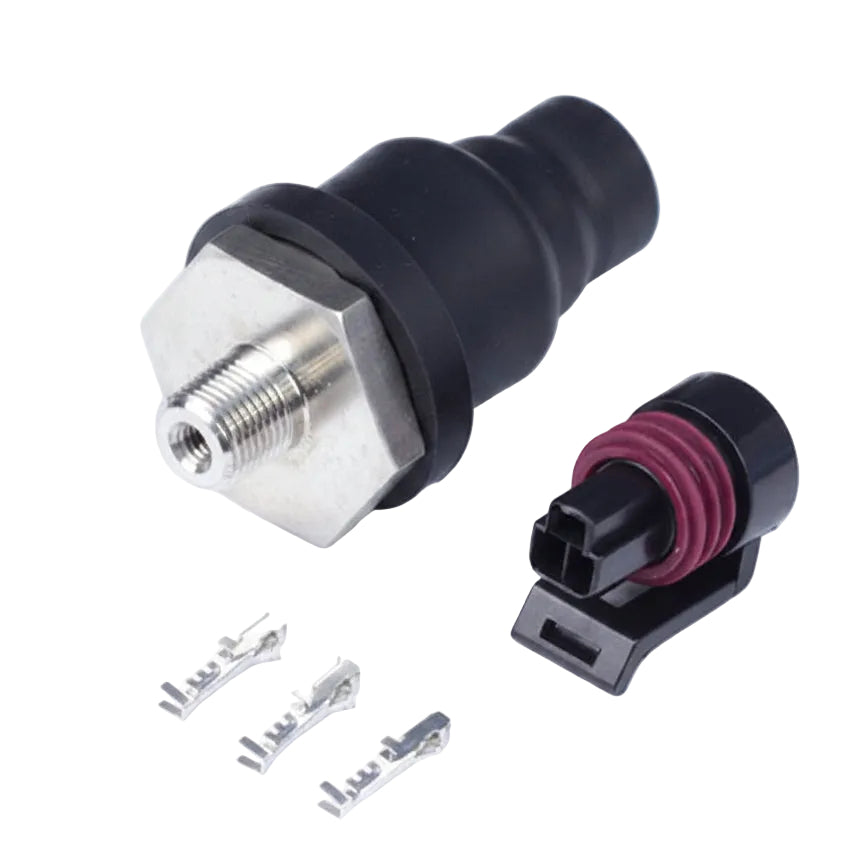

This is the Haltech 2000 PSI Honeywell brake and nitrous pressure sensor, built with a 1/8 NPT thread and supplied with a matching plug and pins for a complete electrical connection. It uses a Honeywell sensor element to give accurate readings for critical systems such as brake fluid pressure or nitrous oxide injection.
Key Features
- 0-2000 PSI gauge pressure measurement range.
- 4000 PSI over-pressure range and 10,000 PSI burst pressure rating.
- Honeywell sensor element for accurate, repeatable readings.
- 1/8 NPT thread for common plumbing connections.
- Includes a matching Delphi plug and 3 pins.
Fitment
| Application | Requirements |
|---|---|
| Haltech engine management systems or any system accepting a 0-5V analog pressure input | 1/8 NPT thread port required. Correct wiring polarity is critical, incorrect wiring will damage this sensor |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Sensor Element | Honeywell |
| Pressure Range | 0-2000 PSI gauge |
| Over Pressure Range | 4000 PSI gauge |
| Burst Pressure | 10,000 PSI |
| Thread | 1/8 NPT |
| Calibration | 0 PSIG = 0.500V, 2000 PSIG = 4.500V |
What's Included
- One Haltech 2000 PSI Honeywell brake/nitrous pressure sensor
- Matching Delphi plug and 3 pins
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, individually electronically testing every Honeywell pressure sensor before packaging.
FAQ
What pressure range does this sensor measure?
0-2000 PSI gauge pressure, with a 4000 PSI over-pressure range.
What thread does this sensor use?
1/8 NPT.
Is a plug and pins included?
Yes, a matching Delphi plug and 3 pins are included.
What happens if this sensor is wired incorrectly?
Incorrect wiring will damage this sensor, so take care when wiring it according to the correct polarity.
What applications is this sensor used for?
Brake pressure or nitrous oxide system pressure monitoring.
What is the burst pressure rating?
10,000 PSI.
Is this sensor tested before shipping?
Yes, all Honeywell pressure sensors are individually electronically tested before packaging.
What is the sensor's output calibration?
0.500V at 0 PSIG and 4.500V at 2000 PSIG.
Installation Instructions
- Select a mounting location with a 1/8 NPT port appropriate for the brake or nitrous system being monitored.
- Apply appropriate thread sealant and install the sensor into the port.
- Connect the matching Delphi plug and pins, verifying correct wiring polarity before power up.
- Route the wiring harness away from heat sources and secure it to prevent chafing.
- Configure the pressure input calibration in the engine management or logging software.
- Verify sensor readings against a known reference before relying on the system for critical measurements.
