Haltech HT-010130 is a 7-bar TI manifold pressure sensor for a compatible engine-management installation. Its threaded port uses a remote hose connection rather than direct mounting on the intake manifold.
Key Features
- 7-bar pressure range for the specified sensor application.
- 1/8 NPT threaded connection.
- Supplied adapters support -4 AN and 5 mm hose connections.
Specifications
| Part number | HT-010130 |
|---|---|
| Sensor family | TI MAP |
| Pressure range | 7 bar |
| Thread | 1/8 NPT |
What's Included

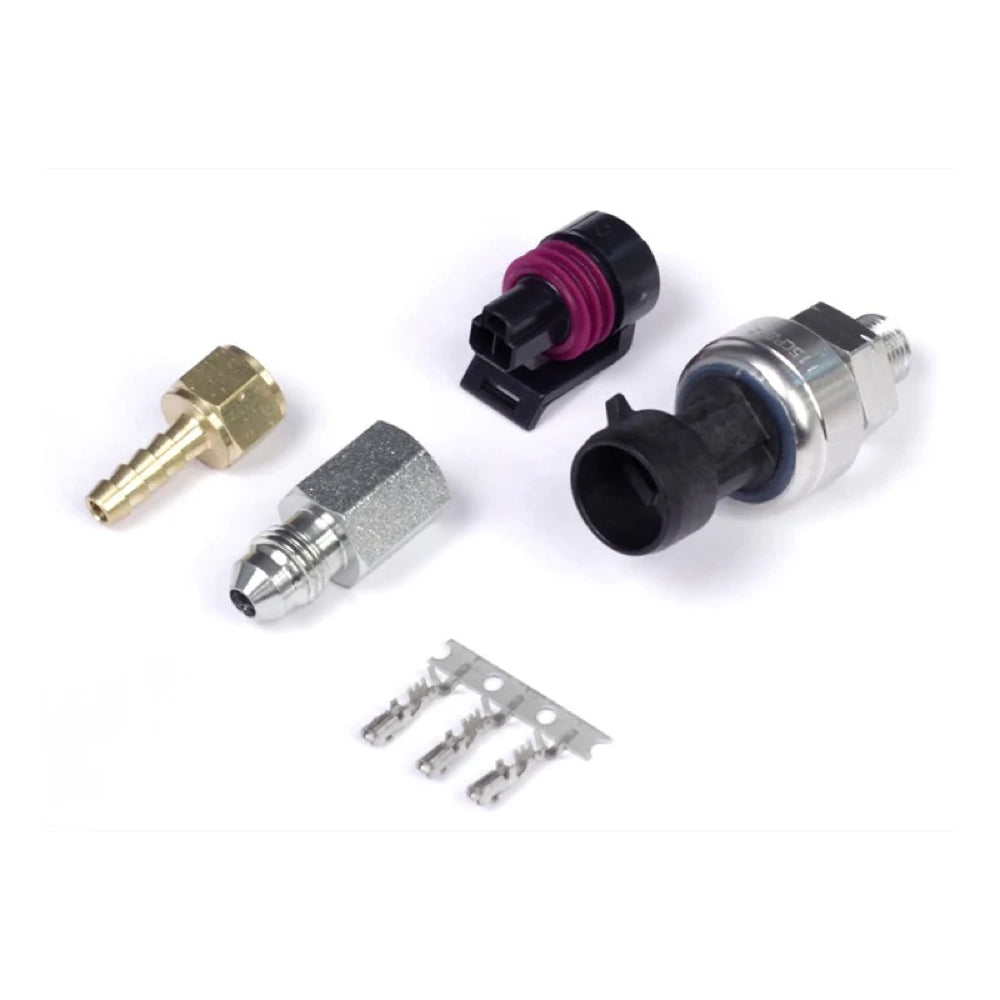

Sensor, matching connector and pins, -4 AN adapter and 5 mm hosetail adapter.
Compatibility and Installation
This is not a vehicle-specific plug-in sensor. Confirm the ECU input and calibration. Remote-mount it with flexible hose; do not screw it directly into the manifold. Haltech offers HT-039103 as an optional extension hose. Incorrect wiring can damage the sensor.
Manufacturer Warranty Note
Haltech electronically tests TI sensors before packaging and supplies them without additional warranty. Its policy excludes returns of opened sensors.
