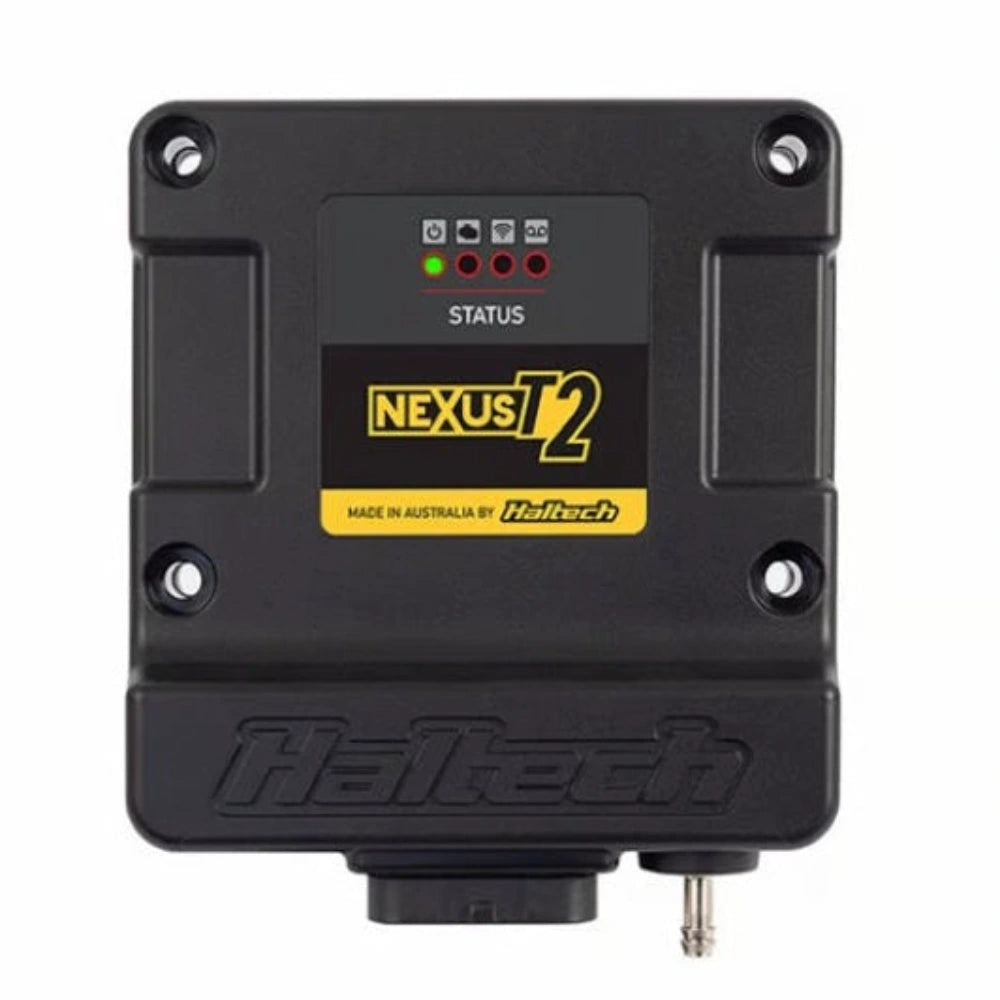

Haltech HT-211000 NEXUS T2 universal ECU front view
Click to zoom in

Haltech NEXUS T2 Universal Stand-Alone ECU

Haltech
HALHT-211000
9356450019767
Programmers & Tuners
20+ Units In Stock - Ships Next Business Day
$ 1,199.00
$ 1,199.00

Universal ECU Control for 1 to 6 Cylinder and 3 Rotor Engines

Haltech NEXUS T2 is a compact stand-alone ECU for universal 1 to 6 cylinder or 3 rotor applications. It supports naturally aspirated and forced induction setups with configurable fuel, ignition, boost, and load sensing control.

Key Features

  • Supports up to 6 cylinders or 3 rotors
  • Compatible with naturally aspirated and forced induction applications
  • Six fuel injection outputs and six ignition outputs
  • Internal 4 Bar MAP sensor
  • Waterproof IP-66 case
  • USB-C laptop communication, internal Wi-Fi, and CAN bus connectivity
  • 32MB onboard logging and four-channel oscilloscope
  • Uses Nexus Software Programmer and NSP Calibration Software

Fitment

Application Requirement
Universal application 1 to 6 cylinder or 3 rotor engine, for sanctioned off-road or competition non-emissions-controlled use

Specifications

Detail Value
Manufacturer Haltech
Model NEXUS T2
Manufacturer Part Number HT-211000
Application Universal 1 to 6 cylinder or 3 rotor
Fuel Injection Outputs 6
Ignition Outputs 6
MAP Sensor Internal 4 Bar
Enclosure Waterproof IP-66
Communication USB-C, Wi-Fi, and CAN bus
Data Logging 32MB onboard

What's Included

  • One Nexus T2 ECU, model HT-211000
  • One USB-C cable
  • One USB-C dust cap
  • Mounting bolt set
  • One Haltech fabric keytag
  • One quick start guide
  • One universal wiring diagram

About Haltech

Haltech develops programmable engine management systems for configurable fuel, ignition, and engine control applications.

FAQ

What is the HT-211000?

It is a universal stand-alone engine control unit for compatible 1 to 6 cylinder and 3 rotor applications.

How many cylinders does the ECU support?

It supports up to six cylinders or three rotors.

Can it control a forced induction engine?

Yes. It supports naturally aspirated and forced induction setups.

Does it include an internal MAP sensor?

Yes. The unit includes an internal 4 Bar MAP sensor.

Is the enclosure sealed?

The case is rated IP-66 for water and dust resistance.

How does it connect to a laptop?

It uses USB-C communication and also provides internal Wi-Fi and CAN bus connectivity.

What software is used for calibration?

Calibration uses Nexus Software Programmer and NSP Calibration Software.

Is a vehicle specific harness included?

No vehicle specific harness is listed. The package includes a universal wiring diagram, while optional harnesses are sold separately.

Installation Instructions

  1. Confirm the engine configuration and application are within the published support range.
  2. Mount the ECU using the supplied mounting hardware in a protected location.
  3. Connect the wiring according to the universal wiring diagram and verify power, grounds, sensors, fuel, and ignition circuits.
  4. Install NSP software, configure the application, and complete required sensor and ignition calibrations before operation.
  5. Follow applicable competition and emissions regulations. Do not use the product on public roads where prohibited.
