HKS 2022 Subaru BRZ / 2022 Toyota GR86 GTIII-RS Bolt On Turbo Kit

HKS
HKS11001-KT007
4957266623534
Turbo Kits
Out of stock
$ 5,800.00
FREE Ground Shipping!

SKU: 11001-KT007 | UPC: 4957266623534

HKS 2022 Subaru BRZ / 2022 Toyota GR86 GTIII-RS Bolt On Turbo Kit

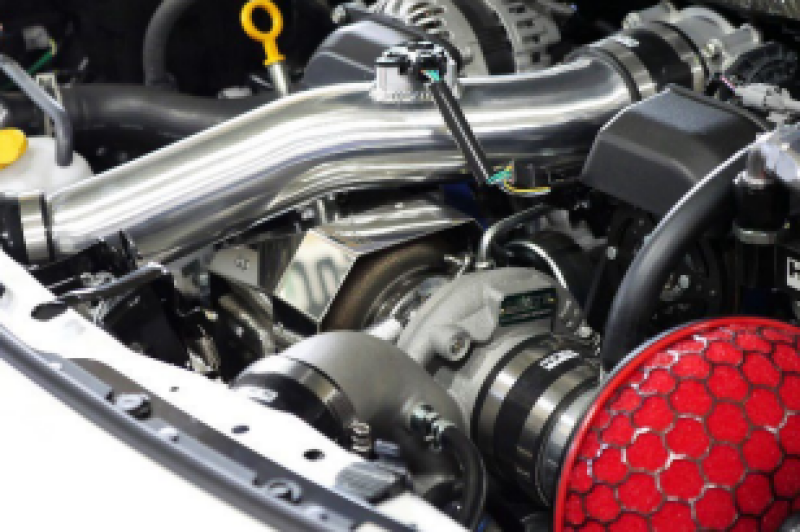

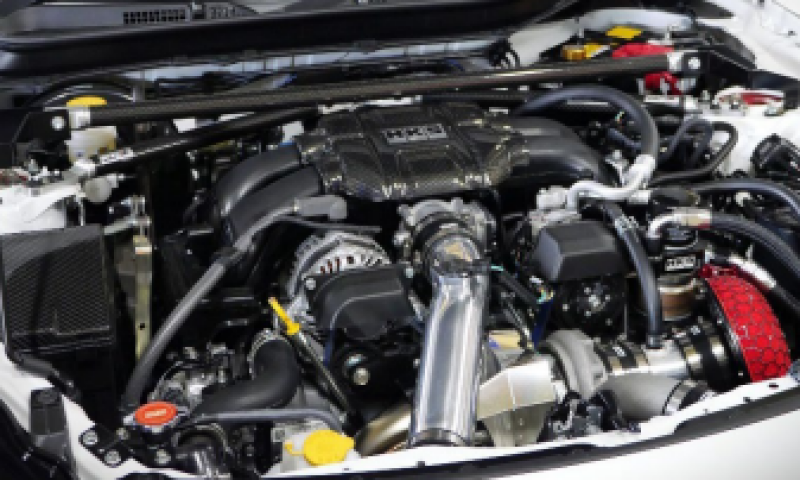

This HKS GTIII-RS bolt-on turbo kit transforms the 2022 Subaru BRZ and 2022 Toyota GR86 with massive power gains from stock 235PS to over 340PS at 1.5 bar boost. Designed as a complete package including turbocharger intercooler piping and downpipe it installs without cutting or welding on ZD8 chassis models. Drivers gain quick spool responsive throttle and track-ready performance straight from the box.

Key Features

  • GTIII-RS Turbocharger: Dual ball-bearing center section with Inconel turbine housing spools fast under 3000rpm for instant boost response and holds 1.5kg/cm² reliably
  • 510mm Core Intercooler: Large aluminum front-mount unit with 210x70mm core drops intake temps 50°C+ for dense air charge and consistent power delivery
  • 45mm Aluminum Piping: Mandrel-bent smooth-wall pipes reduce turbulence maximize flow and resist heat soak during extended sessions
  • Stainless Steel Downpipe: 70mm diameter equal-length design with HKS Silent Hi-Power muffler compatibility evacuates exhaust efficiently for lower EGTs
  • Complete Hardware Kit: Includes oil feed/drain lines engine stall prevention valve blow-off valve and all fittings for plug-and-play assembly

Product Notes

  • ECU tuning required such as HKS Flash Editor to unlock full power and prevent knock
  • Use high-octane fuel 98+ RON and monitor AFR with wideband gauge post-install
  • Kit ships in two boxes for safe handling

Installation Notes

  • Professional installation recommended.
  • Requires removal of stock intake manifold and exhaust system plus ECU reflash
  • Compatible with stock motor and manual transmission uses factory mounts and brackets

This Part Fits

Year Make Model Submodel
2022- Subaru BRZ All
2022- Toyota GR86 All

Why Choose HKS?

  • Motorsport-proven components used in Super GT and D1GP racing
  • JDM-engineered for Subaru/Toyota FA24D engine with decades of turbo expertise
  • Tight tolerances and dyno-tested for bolt-on reliability on street and track

Frequently Asked Questions

  • Q: Will this kit fit 2022+ BRZ/GR86 automatic models?
    A: Designed for manual transmission only automatic requires transmission tunnel modifications
  • Q: What materials are used in the turbo kit?
    A: Billet aluminum compressor housing Inconel turbine housing T6-6061 piping and SUS304 stainless downpipe for heat resistance and longevity
  • Q: What is the warranty on this HKS turbo kit?
    A: 1-year unlimited mileage warranty when installed by certified shop with proof of ECU tune and oil change records

Shipping & Handling

  • Method: UPS Freight Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Two sturdy boxes total dimensions 40x30x25 inches
  • Weight: 95 lbs
