HKS 89-99 Eagle Talon TSI 4G63BT 1.2mm Stopper Head Gasket (86mm Bore/8.6 CR) HKS HKS2301-RM006
HKS 89-99 Eagle Talon TSI 4G63BT 1.2mm Stopper Head Gasket (86mm Bore/8.6 CR) HKS HKS2301-RM006
Click to zoom in

HKS 89-99 Eagle Talon TSI 4G63BT 1.2mm Stopper Head Gasket (86mm Bore/8.6 CR)

HKS
HKS2301-RM006
4957266643099
Head Gaskets
8 Units In Stock - Ships Next Business Day
$ 290.00
FREE Ground Shipping!
$ 290.00

SKU: 2301-RM006 | UPC: 4957266643099

HKS 89-99 Eagle Talon TSI 4G63BT 1.2mm Stopper Head Gasket (86mm Bore/8.6 CR)

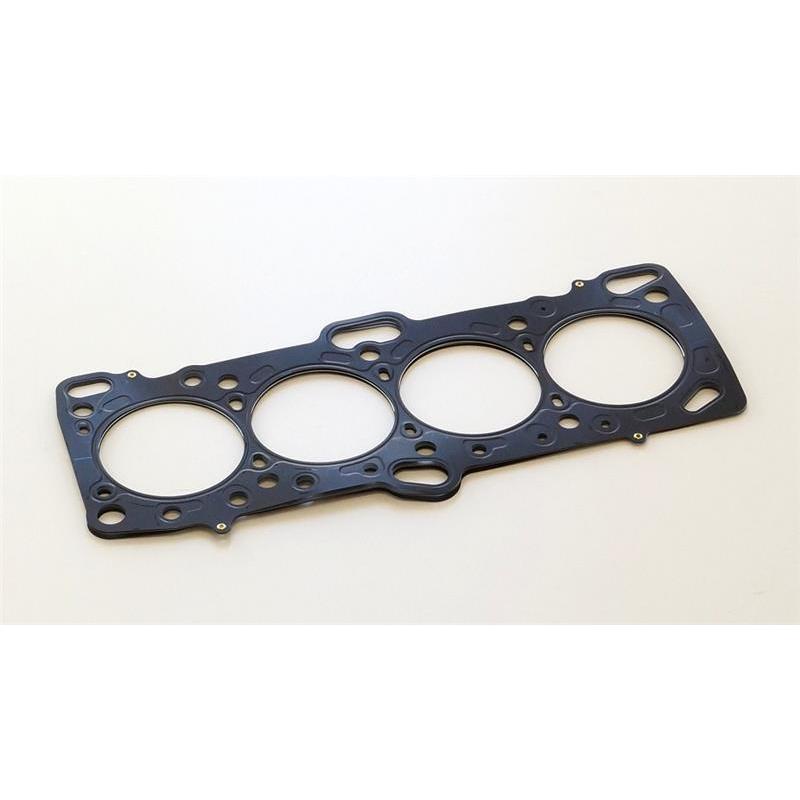

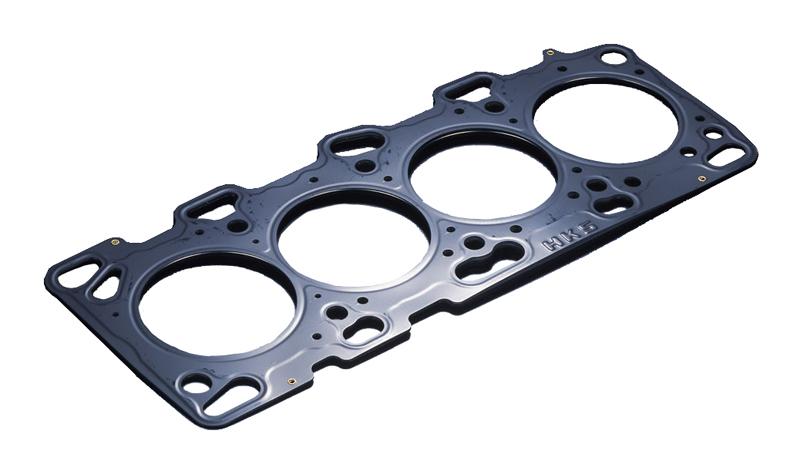

The HKS 1.2mm Stopper Head Gasket (2301-RM006) fits 1989-1999 Eagle Talon TSI models with the 4G63BT turbo engine. This gasket uses a 86mm bore design tuned for 8.6 compression ratio to handle high cylinder pressures in boosted applications. It delivers consistent sealing for reliable power gains in DSM performance setups.

Key Features

  • Stopper Ring Design: Solid stainless steel stopper surrounds the combustion chamber to resist head lift and seal extreme boost levels up to 40psi.
  • Multi-Layer Steel Build: Three-layer construction with durable stainless steel core offers reusability and long-term reliability in racing conditions.
  • 1.2mm Thickness: Compressed height maintains exact 8.6 CR on stock pistons for balanced power and detonation resistance.
  • 86mm Bore Sizing: Matches stock and light overbore 4G63 blocks for precise cylinder head alignment.
  • Nitrile Rubber Beads: Enhanced outer sealing prevents coolant and oil leaks under high heat cycles.

Product Notes

  • Confirm engine bore measures 86mm prior to installation.
  • Pair with ARP head studs for maximum clamping force.
  • Store in dry conditions to preserve rubber sealing layers.

Installation Notes

  • Professional installation recommended.
  • Machine cylinder head and block surfaces flat to 0.002 inches.
  • Torque in three stages using M12 head bolt pattern sequence.

This Part Fits

Year Make Model Submodel
1990-1994 Eagle Talon TSi Turbo AWD
1990-1994 Plymouth Laser RS Turbo AWD
1990-1994 Mitsubishi Eclipse GSX Turbo AWD
1995-1999 Mitsubishi Eclipse GSX Turbo AWD
1989-1999 Eagle Talon TSi 4G63BT Turbo

Why Choose HKS?

  • Proven in Japanese motorsports since 1973.
  • Engineered for turbocharged 4G63 platforms worldwide.
  • Factory-direct tolerances ensure leak-free operation.

Frequently Asked Questions

  • Q: Will this gasket fit 2G Eclipse GSX models?
    A: Yes, it installs directly on 1995-1999 Mitsubishi Eclipse GSX with 4G63T engines using 86mm bore.
  • Q: What materials are used in construction?
    A: Three-layer stainless steel core with stainless stopper ring and nitrile rubber for combustion sealing.
  • Q: Does installation require head milling?
    A: Resurface to OEM flatness specs. no milling needed if maintaining 8.6 CR with stock pistons.

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: In stock - ships same or next business day
  • Packaging: Flat protective envelope 12in x 12in x 0.5in
  • Weight: 0.35 lbs
