HKS 91-98 Nissan 180SX RPS13 SR20DET Step 2 264 Intake Camshaft HKS HKS22002-AN028
HKS 91-98 Nissan 180SX RPS13 SR20DET Step 2 264 Intake Camshaft HKS HKS22002-AN028
Click to zoom in

HKS 91-98 Nissan 180SX RPS13 SR20DET Step 2 264 Intake Camshaft

HKS
HKS22002-AN028
4957266642092
Camshafts
5 Units In Stock - Ships Next Business Day
$ 290.00
FREE Ground Shipping!
$ 290.00

SKU: 22002-AN028 | UPC: 4957266642092

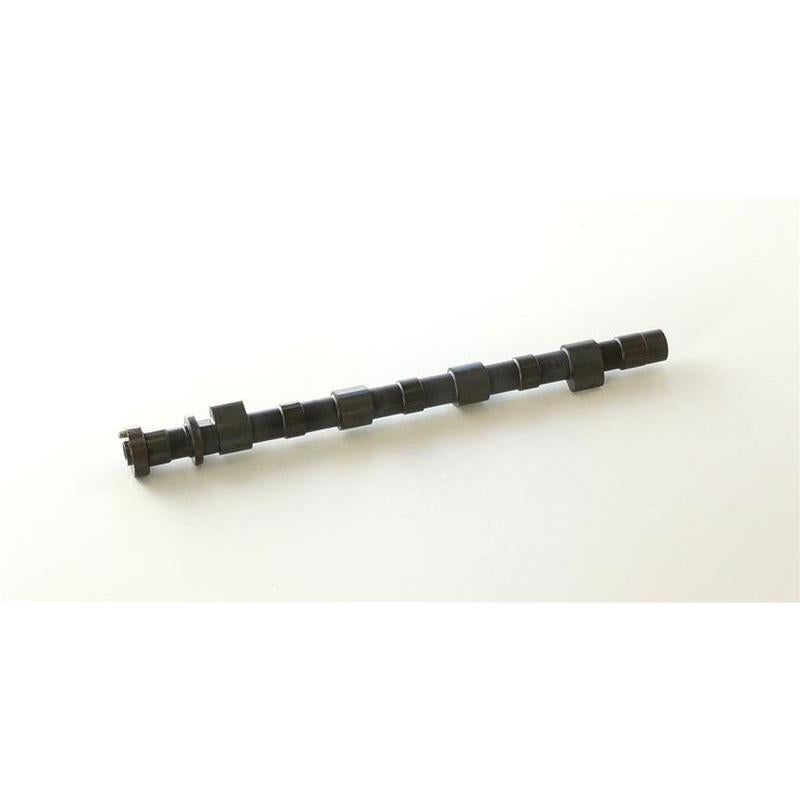

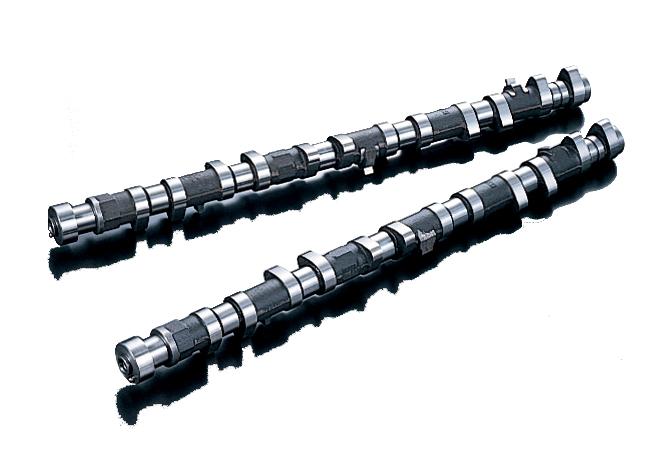

HKS 91-98 Nissan 180SX RPS13 SR20DET Step 2 264 Intake Camshaft

The HKS Step 2 264 Intake Camshaft upgrades SR20DET engines in 1991-1998 Nissan 180SX RPS13 models. With 264-degree duration and 11.15mm lift it increases airflow for stronger acceleration and top-end power in mid to high RPM ranges. This direct replacement delivers reliable gains while keeping idle stable for street driving.

Key Features

  • 264° Duration: Extends intake valve timing for better high-RPM breathing and torque throughout the powerband
  • 11.15mm Lift: Increases valve opening for more air intake improved cylinder filling and combustion
  • SCM415 Chromoly Steel: Heat-treated with nitrided surface for durability under high spring pressures and RPM
  • Precision Ground Lobes: Provides exact valve timing smooth operation and low noise vibration
  • Step 2 Profile: Balances strong power gains with everyday drivability and stable idle quality

Product Notes

  • Requires HKS valve spring kit like Super Street or Racing Pro to handle lift and avoid coil bind
  • Adjust valve clearances after installation and check during break-in
  • Arrives in protective tube packaging to protect cam lobes in transit

Installation Notes

  • Professional installation recommended.
  • Replace valve springs and retainers for safe 11.15mm lift operation
  • Uses OEM cam journals and timing belt setup verify piston-to-valve clearance

This Part Fits

Year Make Model Submodel
1991-1998 Nissan 180SX RPS13 SR20DET

Why Choose HKS?

  • Over 50 years developing JDM performance parts for racing and street
  • Dyno-tested designs proven in drift and time attack competitions
  • Japanese craftsmanship with tight tolerances for reliable fit and function

Frequently Asked Questions

  • Q: Does this camshaft fit both redtop and blacktop SR20DET engines?
    A: Yes it bolts directly into both redtop and blacktop SR20DET cylinder heads on RPS13 180SX chassis
  • Q: What material and treatment does it use?
    A: Made from SCM415 chromoly steel with nitrided surface treatment for hardness and longevity
  • Q: What warranty applies?
    A: Backed by HKS limited manufacturer warranty against defects when installed properly

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Original HKS box 22 x 4 x 4 inches
  • Weight: 4.2 lbs
