SKU: 70026-AT001 | UPC: 4957266260548

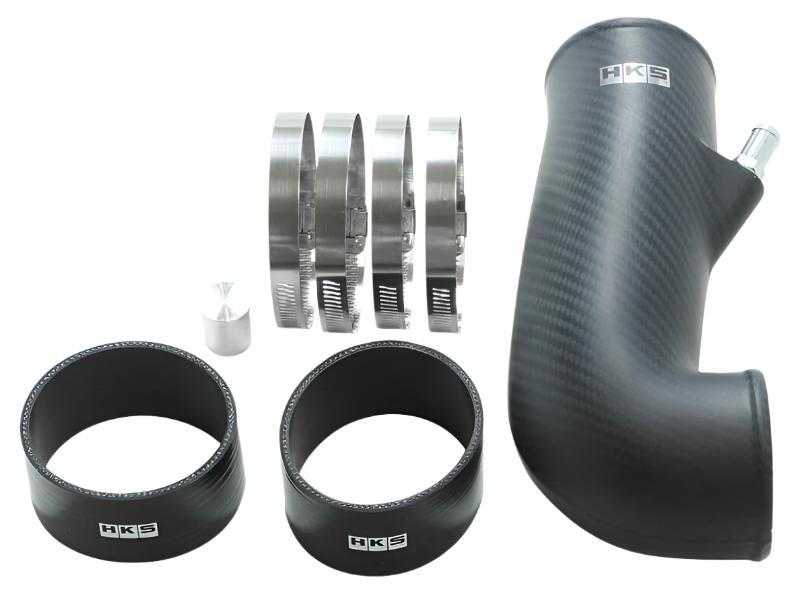

HKS DryCarbon Suction Kit ZN6/ZC6 FA20 2012-2021 Toyota 86 / Subaru BRZ / Scion FR-S
The HKS DryCarbon Suction Kit 70026-AT001 delivers high-flow air intake for ZN6 Toyota 86, ZC6 Subaru BRZ and Scion FR-S with FA20 engine from 2012 to 2021. It replaces the factory airbox with dry carbon filter and 80mm aluminum piping for increased volume and reduced resistance. Dyno results show +8 PS at 5500 rpm and +8.3 kgm at 3000 rpm with sharper throttle response.
Key Features
- Dry Carbon Filter Element: Weighs 930g light half OEM resists heat maintains 99% filtration reusable after washing
- 80mm Aluminum Suction Pipe: Smooth large-diameter design cuts turbulence pulls more air for efficient combustion
- Exclusive Silicone Connector: Flexible heat-resistant seal connects pipe to throttle body without leaks
- Bolt-On Design: Direct fit to stock throttle body no cutting or fabrication required
- Performance Gains: HKS dyno-tested +8 PS power +8.3 kgm torque improves acceleration across RPM range
Product Notes
- Pair with HKS flash editor for full power potential
- Clean dry carbon surface with soft cloth avoid abrasives
- Arrives fully assembled in protective foam-lined box
Installation Notes
- Professional installation recommended.
- Disconnect battery remove stock airbox in 30-45 minutes
- Includes all clamps hardware no additional parts needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2021 | Toyota | 86 | ZN6 FA20 (All) |
| 2013-2021 | Subaru | BRZ | ZC6 FA20 (All) |
| 2013-2016 | Scion | FR-S | ZN6 FA20 (All) |
Why Choose HKS?
- 45+ years leading JDM performance parts since 1973
- Engineered tested in Japanese motorsports for reliability
- Made in Japan with exact OEM tolerances for seamless integration
Frequently Asked Questions
-
Q: Will this fit both manual and automatic 86/BRZ/FR-S?
A: Yes compatible with all MT AT transmissions on FA20 models no variations -
Q: What makes dry carbon different from wet carbon?
A: Dry carbon uses prepreg sheets cured without excess resin for 20% less weight higher strength vs wet layup -
Q: Does installation require tuning or ECU flash?
A: Bolt-on works stock ECU gains shown optional HKS flash editor unlocks more power
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: 18 x 14 x 10 inch box with foam inserts
- Weight: 4.4 lbs shipping weight
