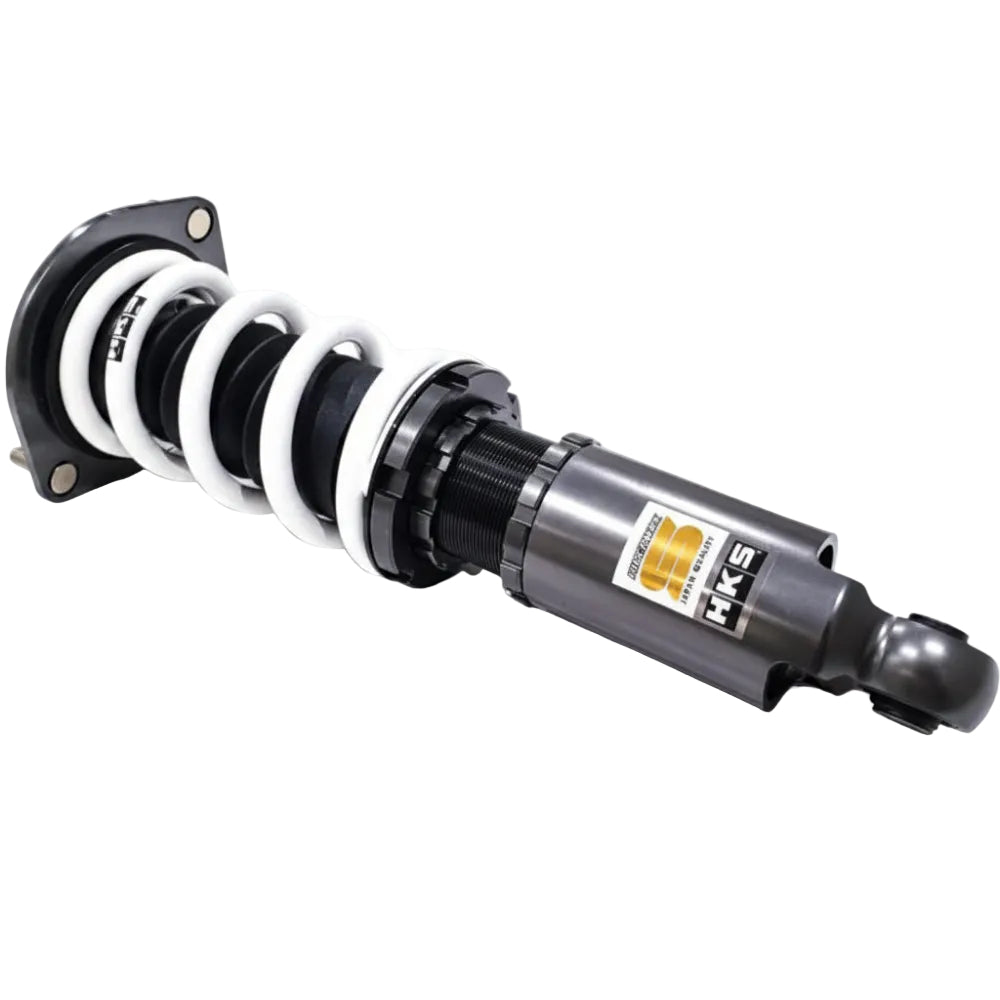

HKS HKS80300-AT010 HIPERMAX S JZA80 Full Kit image 1
Click to zoom in

HKS HIPERMAX S Coilovers for 1993-1998 Toyota Supra

HKS
HKS80300-AT010
4957266321881
Coilovers
1 Units In Stock - Ships Next Business Day
$ 1,980.00
$ 1,980.00

HKS HIPERMAX S Coilovers for 1993-1998 Toyota Supra

HKS 80300-AT010 is a vehicle-specific HIPERMAX S coilover kit for the 1993-1998 Toyota Supra JZA80 with the 2JZ-GTE engine. This discontinued kit has been superseded by the current-generation HKS 80330-AT010.

Key Features

  • 30-step front and rear damping adjustment
  • Height-adjustable lower brackets front and rear
  • Rubber upper mounts front and rear
  • Helper springs front and rear
  • Front spring rate of 137 N/mm and rear spring rate of 78 N/mm

Fitment

Vehicle Application Chassis Engine Drivetrain
1993-1998 Toyota Supra JZA80 2JZ-GTE RWD

Specifications

Detail Value
Part Number 80300-AT010
Damping Adjustment 30 steps front and rear, default setting 15
Spring Rate Front 137 N/mm, rear 78 N/mm
Spring Free Height Front 200 mm, rear 250 mm
Upper Mount Rubber front and rear
Warranty 3 years or 60,000 km

What's Included

  • Front suspension assemblies, quantity 2
  • Rear suspension assemblies, quantity 2
  • Spacers, quantity 4
  • Adjustment dial, quantity 1
  • Spanner wrench, quantity 1
  • 12.7 sq slotted spanner wrench, quantity 1
  • Warranty certificate, quantity 1
  • Installation guide, quantity 1

About HKS

HKS develops vehicle-specific performance components for street and motorsport applications.

FAQ

Does this kit fit every JZA80 Supra?

It fits the 1993-1998 Toyota Supra JZA80 with the 2JZ-GTE engine and rear-wheel drive.

Can it be used on a Supra with REAS?

It is not compatible with REAS unless the hydraulic system is removed.

Is this the current HIPERMAX S kit for the Supra?

No. This discontinued kit has a current-generation successor.

How is damping adjusted?

Each damper uses a 30-step adjustment dial. The default setting is 15 clicks back from the hardest position.

Can ride height be adjusted?

Yes. The kit uses height-adjustable lower brackets at the front and rear.

What upper mounts does the kit use?

It uses rubber upper mounts at the front and rear.

Can I change the supplied spring rate through HKS?

This kit does not offer a factory spring-rate change option.

What warranty coverage is listed for the HIPERMAX S series?

HKS lists 3 years or 60,000 km of coverage for the HIPERMAX S series.

Installation Instructions

  1. Confirm the vehicle is a 1993-1998 JZA80 Supra with a 2JZ-GTE engine.
  2. Remove or address the REAS hydraulic system before installation when equipped.
  3. Install the front and rear assemblies using the supplied guide and specified torque values.
  4. Set both damping dials equally, then perform a wheel alignment.
