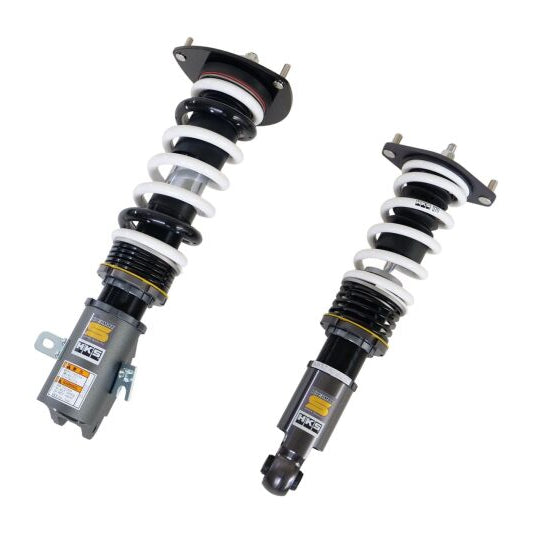

HKS Hipermax S Full Kit Coilovers for Subaru Wrx 4D(Va)
HKS part 80330-AF009, the Hipermax S Vab Full Kit, is a full coilover suspension kit engineered specifically for the Subaru Wrx 4D(Va). The Hipermax S line pairs a height-adjustable inverted damper design with 30-step damping adjustment, letting owners dial in ride height and damping stiffness for daily driving or track use while keeping a factory-style rubber upper mount for a comfortable ride.
Key Features
- Full front and rear coilover kit purpose-built for the Subaru Wrx 4D(Va), part 80330-AF009.
- 30-step damping force adjustment lets the driver tune compression and rebound feel.
- Height-adjustable lower brackets allow independent ride-height tuning at each corner.
- Inverted damper construction with a rubber upper mount for reduced NVH versus a pillow-ball setup.
- Includes stabilizer links and a damping-force adjustment dial for tool-free tuning after installation.
- Backed by HKS's one-year limited warranty against defects in materials and workmanship.
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2015-2021 | Subaru | WRX 4d(va) |
Specifications
| Detail | Value |
|---|---|
| Brand | HKS |
| Manufacturer part number | 80330-AF009 |
| Product line | Hipermax S |
| Damping force adjustment | 30 steps |
| Spring rate (front/rear) | F=88 N/mm (9.0 kgf/mm) / R=69 N/mm (7.0 kgf/mm) |
| Ride height vs. stock (front/rear) | F=-19 mm / R=-14 mm |
| Drivable ride-height range vs. stock (front/rear) | F=0 to -41 mm / R=0 to -62 mm |
| Upper mount type | Rubber |
| Damper construction | Inverted |
| Package dimensions | 560 × 290 × 390 mm, 1 box |
| Package weight | 25.7 kg |
What's Included
- Front suspension assemblies (qty 2)
- Rear suspension assemblies (qty 2)
- Stabilizer links (qty 2)
- Hook wrench with 12.7 sq drive hole (qty 1)
- M12 nuts (qty 4)
- Hook wrench (qty 1)
- Spacers (qty 4)
- Warranty registration card (qty 1)
- Damping-force adjustment dial (qty 1)
- Installation manual (qty 1)
About HKS
HKS Co., Ltd. has engineered turbo systems, engine electronics, and suspension products for Japanese performance cars since 1973. The Hipermax S full-kit coilover line, including part 80330-AF009 for the Subaru Wrx 4D(Va), brings HKS's damper tuning expertise to a height- and damping-adjustable coilover built for daily street use and light track duty.
Related Parts
- HKS HIPERMAX S GRB/GVB (STI Only) Full Kit
- HKS HIPERMAX S GDB(A-D) Full Kit
- HKS HIPERMAX S GDB(E-G) Full Kit
- HKS 2022+ Subaru BRZ Hipermax S ZD8 - Full Kit
FAQ
What vehicles does this coilover kit fit?
This kit is engineered specifically for the Subaru Wrx 4D(Va). Always confirm your exact chassis code and model year against the fitment table above before ordering.
How much does this kit lower the vehicle?
HKS lists an approximate ride-height change of F=-19 mm / R=-14 mm versus stock at the factory default damping and height setting, with a drivable adjustment range of F=0 to -41 mm / R=0 to -62 mm.
Is the damping adjustable after installation?
Yes. The kit includes 30 steps of damping adjustment via a dial, so compression and rebound firmness can be tuned without removing the coilover.
Does this kit include stabilizer links?
Yes, stabilizer links are included in the kit.
Can I use this coilover kit on a different chassis or model year?
No. This kit is designed and tested only for the specific application listed in the fitment table above. Using it on an unlisted chassis or model year is not supported.
Is professional installation required?
Yes. HKS states that installation must be performed by a professional installer using a lift or jack stands, a spring compressor, and torque specifications from the installation manual.
What is the warranty on this kit?
HKS provides a one-year warranty to the original purchaser against defects in materials and workmanship. Purchasing through an unauthorized seller may void the warranty.
Does lowering the vehicle affect factory driver-assistance systems?
It can. EyeSight may not function properly after suspension replacement. Refer to the factory user’s manual. If the front case length is 279 mm (11.0 inch) or more, use the factory stabilizer link.
Is a wheel alignment required after installation?
Yes. An alignment should be performed after installation and after any ride-height adjustment, and HKS recommends a break-in period of approximately 50 km at reduced speed before hard driving.
Installation Instructions
- Support the vehicle on an automotive lift or a garage jack with rigid jack stands. Do not use the factory vehicle jack for installation or ride-height adjustment.
- Remove the wheels and disconnect the factory strut assemblies following the vehicle manufacturer's service procedure.
- Use a spring compressor to transfer components as needed and install the HKS Hipermax S front and rear assemblies in place of the factory struts.
- Reinstall the supplied stabilizer links where applicable and torque all suspension fasteners to specification without using an impact wrench on the upper mount.
- Set the damping-force dial to the factory default position and adjust the height-adjustable lower brackets to the desired ride height within the specified range.
- Reinstall the wheels, lower the vehicle, and perform a wheel alignment.
- Drive a break-in period of approximately 50 km at reduced speed, then recheck for any contact between tires, wheels, or suspension components.
- Fine-tune the damping dial and ride height to taste once break-in is complete.
Prop 65 Warning
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
