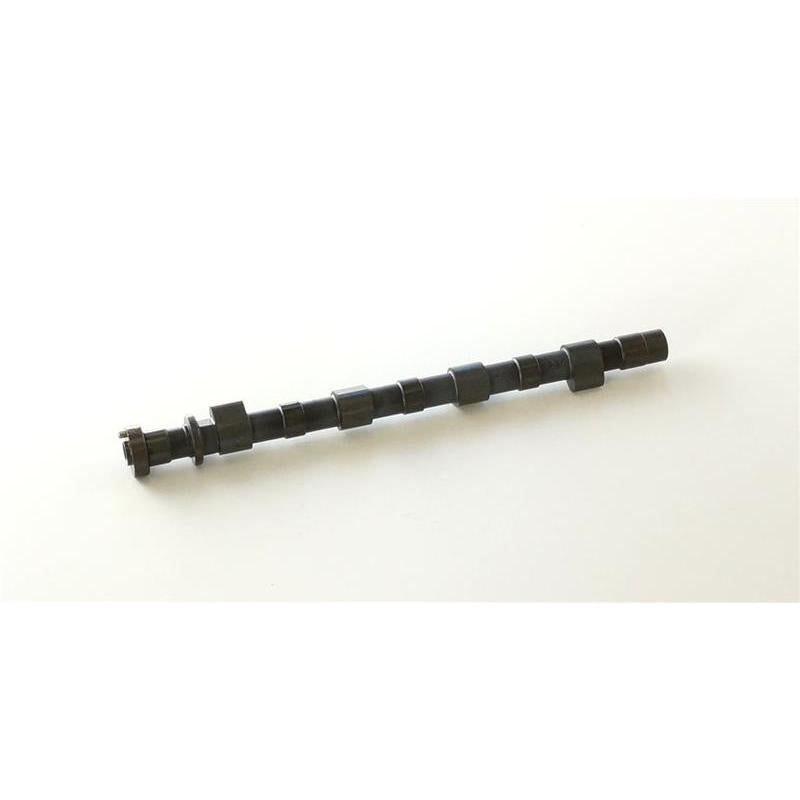

HKS Nissan S13 SR20DET 256 Intake Cam HKS HKS22002-AN025
HKS Nissan S13 SR20DET 256 Intake Cam HKS HKS22002-AN025
Click to zoom in

HKS Nissan S13 SR20DET 256 Intake Cam

HKS
HKS22002-AN025
4957266642061
Camshafts
2 Units In Stock - Ships Next Business Day
$ 270.00
FREE Ground Shipping!
$ 270.00

SKU: 22002-AN025 | UPC: 4957266642061

HKS Nissan S13 SR20DET 256 Intake Camshaft 1989-1994

The HKS 256 Intake Camshaft upgrades the Nissan S13 SR20DET engine in 1989-1994 Silvia and 180SX models. This high-angle cam delivers increased valve duration for better mid-to-high RPM power and throttle response. Pair it with matching valve springs for full potential in tuned builds.

Key Features

  • 256 Degree Duration: Extends intake valve timing to pull in more air at high RPM for stronger top-end power gains
  • 11.15mm Lift: Raises intake valves higher to improve airflow volume without excessive stress on valvetrain
  • High-Strength Steel Construction: Heat-treated and precision-ground for durability under boost and high revs
  • Direct Bolt-On Fit: Matches factory journal sizes for seamless installation on SR20DET Blacktop engines
  • Optimized Profile: Balances power delivery with drivability for street and track use

Product Notes

  • Valve spring upgrade recommended for revs over 8500 RPM to prevent coil bind
  • Verify piston-to-valve clearance before full assembly
  • Store in dry conditions to maintain surface finish

Installation Notes

  • Professional installation recommended.
  • Set intake valve lash to 0.22-0.28mm cold after install
  • Requires cam timing adjustment using HKS specs or degree wheel

This Part Fits

Year Make Model Submodel
1989-1993 Nissan 180SX SR20DET
1989-1994 Nissan Silvia S13 SR20DET
1990-1994 Nissan 240SX S13 SR20DET Swap

Why Choose HKS?

  • Proven in JDM motorsport since 1973
  • Engineered in Japan for SR20DET reliability
  • Exact tolerances from CNC grinding process

Frequently Asked Questions

  • Q: Will this cam fit my swapped SR20DET in a 240SX S13?
    A: Yes it bolts directly to SR20DET Blacktop heads in S13 chassis with no modifications
  • Q: What material is the cam made from?
    A: Billet steel with special hardening treatment for heat and wear resistance
  • Q: Do I need upgraded valve springs?
    A: HKS Super Intake Springs recommended for safe operation above 8000 RPM

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Protective tube inside box 24 x 4 x 4 inches
  • Weight: 2.6 lbs
