SKU: 23001-AT003 | UPC: 4957266643068

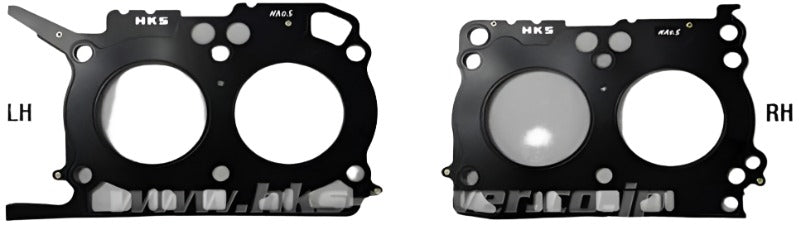

HKS SMG/K FA20 t=0.7 Head Gasket 2013-2024 Subaru BRZ Scion FR-S Toyota 86 GR86
The HKS SMG/K FA20 t=0.7 is a multi-layer steel head gasket engineered for FA20 engines in Subaru BRZ Scion FR-S and Toyota 86 GR86 models. Its 0.7mm thickness reduces combustion chamber volume to raise compression ratios for increased power output. This gasket delivers reliable sealing in naturally aspirated and boosted setups handling extreme heat and cylinder pressures.
Key Features
- 0.7mm Thickness: Compresses engine displacement less than stock 1.0mm gaskets to deliver higher compression and power gains in performance builds
- Multi-Layer Steel Construction: Three stainless steel layers with elastomer coating provide durable sealing against high boost levels over 30 psi and temperatures exceeding 1000 degrees C
- 86mm Bore Matching: Precisely sized for FA20 cylinders to prevent blowout and maintain even clamping force across the deck surface
- High-Pressure Resistance: Engineered to withstand detonation and pressure spikes common in tuned FA20 engines with cams pistons or turbochargers
- Direct Fit Design: Matches OEM bolt patterns and dimensions for straightforward replacement without machining or modifications
Product Notes
- Confirm piston-to-valve clearance before installation due to reduced gasket thickness
- Pair with ARP head studs for optimal clamping in high-boost applications
- Handle carefully to avoid creasing the sealing layers during transport
Installation Notes
- Professional installation recommended.
- Torque head bolts to HKS specifications in sequence using moly paste on threads
- Requires new OEM or ARP head bolts. reuse of old bolts not advised
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2021 | Subaru | BRZ | Base Limited Premium tS |
| 2013-2016 | Scion | FR-S | Base 5 Series 10 Series |
| 2017-2021 | Toyota | 86 | Base GT Hakone Edition |
| 2022-2024 | Toyota | GR86 | Base Premium Premium+ Trueno Edition |
Why Choose HKS?
- Motorsport heritage with wins in Super GT and rally series
- Premium materials tested in Japanese domestic racing
- Precision manufacturing ensures consistent performance gains
Frequently Asked Questions
-
Q: Will this fit 2022+ Toyota GR86 models?
A: Yes it fits all 2022-2024 Toyota GR86 models equipped with the FA20 engine including Base Premium and special editions -
Q: What materials are used in construction?
A: Three layers of 301 stainless steel with Viton rubber-aceramic bead sealing for heat and pressure resistance -
Q: What warranty coverage applies?
A: HKS offers a one-year limited warranty against manufacturing defects when installed by certified technicians
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Original HKS box 9 x 9 x 1.5 inches
- Weight: 0.35 lbs
