Secure Wheel Mounting with the Correct Stud Dimensions

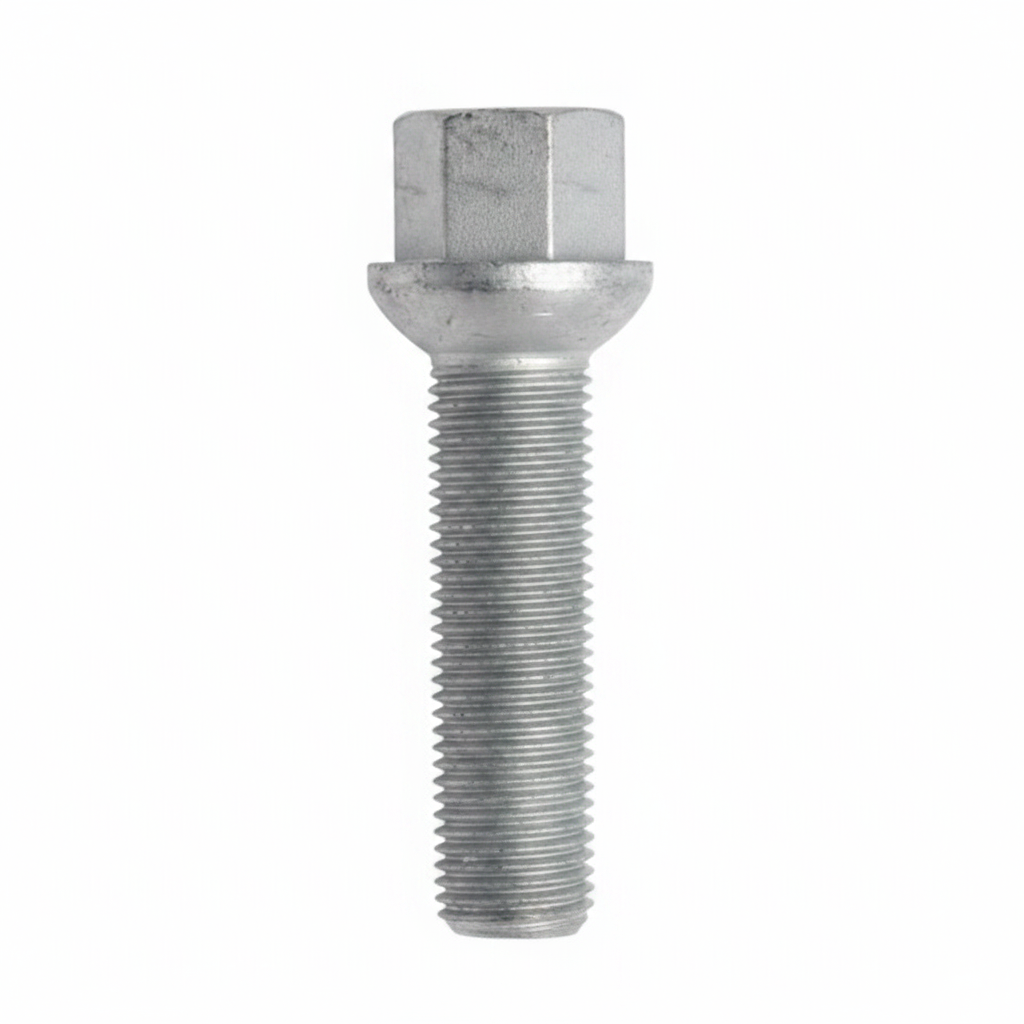

This H and R wheel stud is for universal applications that require an M12x1.5 thread, a 35mm thread length, and a 14.35mm knurl diameter. The 1253554 configuration is sold as one stud, so confirm the hub and wheel hardware specifications before ordering.
Key Features
- H and R wheel stud for compatible wheel hubs
- M12x1.5 thread specification
- 35mm thread length
- 14.35mm knurl diameter
- Silver finish as listed for this configuration
- Single stud package for replacement or custom wheel hardware work
Fitment
| Years | Make | Model | Position | Requirements |
|---|---|---|---|---|
| Universal | Any | Compatible vehicle | Wheel hub | Requires M12x1.5 thread and 14.35mm knurl. Confirm factory specifications. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 1253554 |
| Thread | M12x1.5 |
| Thread Length | 35mm |
| Knurl Diameter | 14.35mm |
| Finish | Silver |
| Package Quantity | 1 wheel stud |
What's Included
- One H and R wheel stud
About H and R
H and R develops wheel fastening and suspension components for motorsport, performance, and street applications. Its wheel hardware range uses application specific thread, seat, and dimensional specifications that must be matched to the vehicle hub.
FAQ
What is the 1253554?It is a wheel stud with the dimensions shown in the specifications table.
What thread does this stud use?The stud uses an M12x1.5 thread.
How long is the threaded section?The listed thread length is 35mm.
What knurl diameter is required?The listed knurl diameter is 14.35mm.
How many studs are included?The package contains one wheel stud.
Is this a vehicle specific part?No. It is a universal hardware component. Match the thread, knurl, length, and hub design before purchase.
Can it replace any wheel stud?No. The replacement must match the original hub design and the required thread and knurl dimensions.
What should be checked before installation?Confirm the hub bore, thread engagement, knurl fit, wheel clearance, and the vehicle manufacturers installation procedure.
Installation Instructions
- Verify the thread, length, knurl diameter, and hub requirements against the vehicle service information.
- Support the vehicle safely and remove the wheel and any hardware blocking access to the hub.
- Remove the original stud using the approved service method for the hub.
- Clean the stud bore and inspect the hub for damage or distortion.
- Install the replacement stud squarely so the knurl seats fully without damaging the hub.
- Reinstall the wheel and compatible nuts, then tighten them in the vehicle manufacturers specified sequence and torque.
- Lower the vehicle and recheck fastener torque after the initial road test according to the service procedure.
