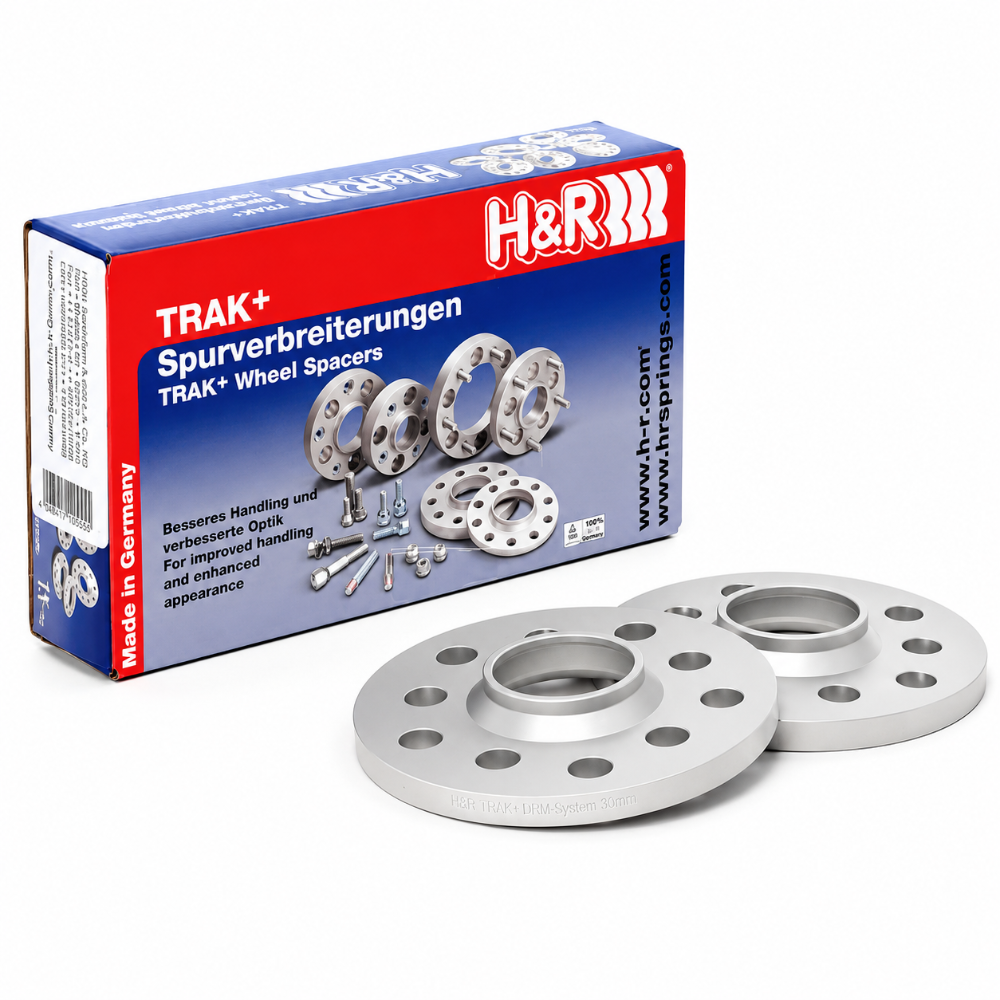

Push Any 5/112 Wheel Outward 15mm with H&R Trak+ DR Wheel Spacers
The H&R HRS30556650 Trak+ 15mm DR Wheel Spacers are a universal-fit solution for vehicles running a 5/112 bolt pattern with a 66.5mm center bore and 14x1.5 lug thread pitch. Each spacer adds 15mm of outward wheel offset per side, moving the wheels toward flush with the fenders for a more purposeful, dialed-in stance. Machined from H&R's proprietary high-strength alloy with greater tensile strength than standard 6061-T6 billet aluminum, the HRS30556650 uses the DR (Dual Retention) design for a secure, hub-centric installation. Hub-centric 66.5mm bore ensures a vibration-free fit at all speeds. Sold as a pair with a limited lifetime warranty.
Key Features
- 15mm wheel offset increase per side for any 5/112 bolt-pattern vehicle
- DR (Dual Retention) design for secure hub and wheel retention
- Machined from H&R proprietary alloy with greater tensile strength than 6061-T6
- Hub-centric 66.5mm bore for vibration-free operation at all speeds
- Bolt Pattern: 5/112 | Center Bore: 66.5mm | Thread: 14x1.5
- Sold as a pair (2 spacers)
- Limited lifetime warranty
Specifications
| Detail | Value |
|---|---|
| Part Number | 30556650 |
| Brand | H&R Special Springs |
| Type | Trak+ DR Wheel Spacer |
| Thickness | 15mm per side |
| Bolt Pattern | 5/112 |
| Center Bore | 66.5mm |
| Thread | 14x1.5 |
| Quantity | Pair (2) |
| Warranty | Limited Lifetime |
What Is Included
- 2x H&R Trak+ 15mm DR wheel spacers (HRS30556650)
- Installation hardware
Frequently Asked Questions
What vehicles are compatible with the HRS30556650?The HRS30556650 fits any vehicle with a 5/112 bolt pattern, 66.5mm center bore, and 14x1.5 lug thread. Common platforms include many Mercedes-Benz, Audi, Volkswagen, and certain BMW models. Always confirm your specific hub bore and thread pitch before purchasing.
How much total track width do I gain from the 15mm spacers?Each HRS30556650 adds 15mm per side for a total track width increase of 30mm (approximately 1.18 inches) across one axle when both spacers are installed.
Are H&R DR spacers hub-centric?Yes. The HRS30556650 is machined to a 66.5mm center bore that seats precisely on the factory hub for a vibration-free, hub-centric fit.
What is the DR (Dual Retention) system?DR means the spacer uses a dual-point retention approach to independently secure the spacer to the hub and the wheel to the spacer. This prevents relative movement at either interface and produces a stable, secure installation.
Do I need to re-torque after installation?Yes. Re-torque all wheel fasteners after the first 50 to 100 miles of driving to verify fasteners remain at the specified torque value.
How many sets do I need for all four corners?Each set contains 2 spacers covering one axle. Two sets are required to equip all four wheels of the vehicle.
Can I use these spacers with aftermarket wheels on a 5/112 vehicle?Yes. The HRS30556650 accepts any 5/112 bolt-pattern wheel on the outboard face. Confirm your aftermarket wheel's center bore is compatible with the spacer before purchasing.
Are these spacers suitable for high-performance driving?H&R Trak+ DR spacers are engineered for street and performance use. For track or motorsport applications, follow a diligent re-torque schedule and verify that the additional track width complies with any applicable regulations.
Installation Instructions
- Safely raise and support the vehicle on jack stands.
- Remove wheels and thoroughly clean hub face and wheel mating surfaces.
- Mount the HRS30556650 spacer onto the hub and secure using the inboard retention hardware. Torque to the factory specification in a star pattern.
- Mount the wheel onto the spacer's outboard face and thread on the outboard lug hardware.
- Torque to the vehicle manufacturer's wheel specification in a star pattern.
- Lower the vehicle and perform a final torque check at ride height.
- Re-torque after 50 to 100 miles of driving.
- Verify clearance at full steering lock and full suspension compression before normal driving.
