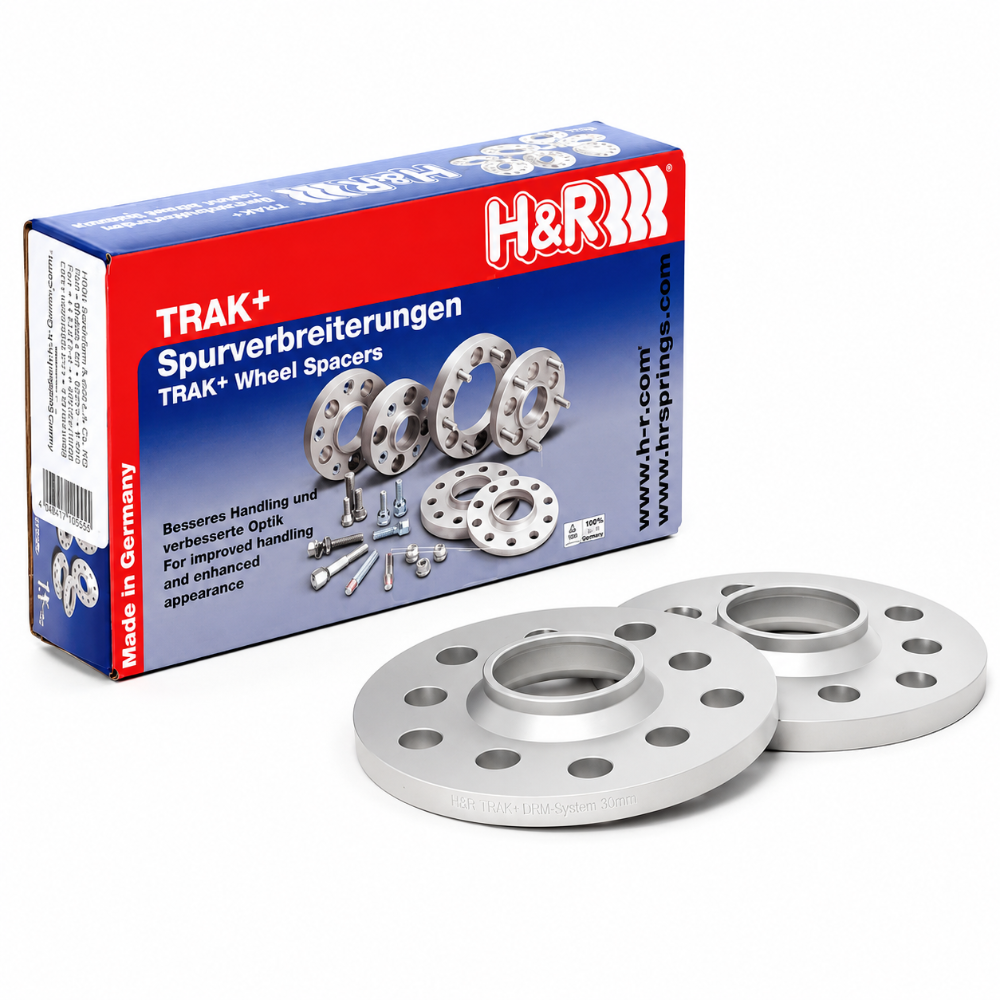

Widen the Track on Your 2022-2026 Hyundai Ioniq 5 with H&R Trak+ 15mm DRM Wheel Adaptors
The H&R HRS30656730 Trak+ 15mm DRM Wheel Adaptors are precision-machined for the 2022-2026 Hyundai Ioniq 5, pushing the wheels 15mm outward per side for a cleaner, more planted stance. Machined from H&R's proprietary high-strength alloy with greater tensile strength than standard 6061-T6 billet aluminum, the HRS30656730 uses the DRM (Dual Retention Method) to independently secure the adaptor to the hub and the wheel to the adaptor. The hub-centric 67.1mm bore provides a precise, vibration-free fit at all speeds. Bolt pattern: 5/114.3. Thread: 12x1.5. Sold as a pair with a limited lifetime warranty.
Key Features
- 15mm wheel offset increase per side for the 2022-2026 Hyundai Ioniq 5
- DRM (Dual Retention Method) dual-locking design for independent hub and wheel retention
- HRS30656730 machined from H&R proprietary alloy exceeding 6061-T6 tensile strength
- Hub-centric 67.1mm bore eliminates vibration at all speeds
- Bolt Pattern: 5/114.3 | Center Bore: 67.1mm | Thread: 12x1.5
- Sold as a pair (2 adaptors)
- Limited lifetime warranty
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2022-2026 | Hyundai | Ioniq 5 | SE Standard Range |
| 2022-2026 | Hyundai | Ioniq 5 | SE |
| 2022-2026 | Hyundai | Ioniq 5 | SEL |
| 2022-2026 | Hyundai | Ioniq 5 | Limited |
| 2022-2026 | Hyundai | Ioniq 5 | XRT |
| 2024-2026 | Hyundai | Ioniq 5 | N |
Specifications
| Detail | Value |
|---|---|
| Part Number | 30656730 |
| Brand | H&R Special Springs |
| Type | Trak+ DRM Wheel Adaptor |
| Thickness | 15mm per side |
| Bolt Pattern | 5/114.3 |
| Center Bore | 67.1mm |
| Thread | 12x1.5 |
| Quantity | Pair (2) |
| Warranty | Limited Lifetime |
What Is Included
- 2x H&R HRS30656730 Trak+ 15mm DRM wheel adaptors
- Installation hardware (lug bolts/nuts)
Frequently Asked Questions
What is the total track width increase from the HRS30656730 on the Ioniq 5?Each HRS30656730 adds 15mm per side for a total track width increase of 30mm (approximately 1.18 inches) across one axle when both adaptors are installed.
What is the difference between the HRS30656730 and the HRS30656730SW?Both adaptors are identical in specification, adding 15mm per side and fitting the 2022-2026 Hyundai Ioniq 5 with the same 5/114.3 bolt pattern, 67.1mm center bore, and 12x1.5 thread. The HRS30656730SW has a black anodized finish; the HRS30656730 has a natural silver finish.
Are these adaptors hub-centric for the Hyundai Ioniq 5?Yes. The HRS30656730 is machined to a 67.1mm center bore matching the Ioniq 5 factory hub specification for a vibration-free, hub-centric fit at both the vehicle side and the wheel side.
What does DRM (Dual Retention Method) mean?DRM means the adaptor is independently secured to the hub using inboard lug hardware and the wheel is independently secured to the adaptor using outboard lug hardware. The two retention systems operate independently, which prevents relative movement at either interface.
Do H&R DRM adaptors require re-torquing?Yes. Re-torque all lug hardware after the first 50 to 100 miles of driving to confirm fasteners remain at the specified torque value.
Do I need two sets for all four corners?Yes. Each set contains 2 adaptors covering one axle. Two sets are required for all four wheels of the vehicle.
Is the Ioniq 5 N compatible with the HRS30656730?Yes. The 2024-2026 Hyundai Ioniq 5 N shares the same 5/114.3 bolt pattern, 67.1mm center bore, and 12x1.5 thread pitch, making the HRS30656730 a direct fit.
Can these adaptors be used with aftermarket wheels on the Ioniq 5?Yes. The HRS30656730 accepts any 5/114.3 bolt-pattern wheel on the outboard face. Confirm your aftermarket wheel's center bore is compatible with the adaptor's outboard bore before purchasing.
Installation Instructions
- Safely raise and support the vehicle on jack stands at all four corners.
- Remove wheels and thoroughly clean hub face and wheel mating surfaces.
- Mount the HRS30656730 adaptor onto the hub using the inboard lug hardware. Torque to the factory specification in a star pattern.
- Mount the wheel onto the adaptor's outboard face using the included outboard lug hardware.
- Torque outboard lug hardware to the vehicle manufacturer's wheel specification in a star pattern.
- Lower the vehicle and perform a final torque check at ride height.
- Re-torque after 50 to 100 miles of driving.
- Verify clearance at full steering lock and full suspension compression before normal driving.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
