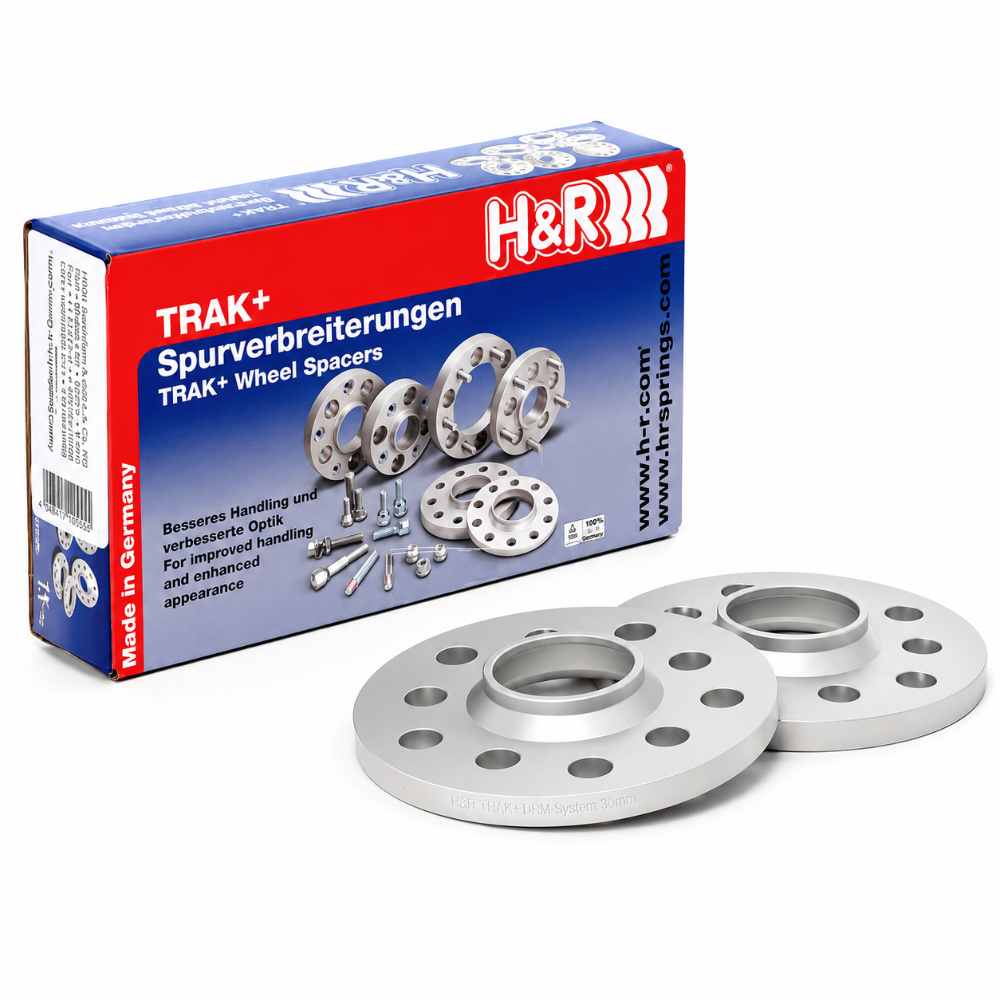

Dial In Your 2024-2025 Toyota Land Cruiser Stance with H&R Trak+ 23mm DRM Wheel Adaptors
The H&R HRS46106950 Trak+ 23mm DRM Wheel Adaptors push the wheels of your 2024-2025 Toyota Land Cruiser outward by 23mm per side, giving you a wider track and a more planted, aggressive look without exceeding typical fender clearance limits. Machined from H&R's proprietary high-strength alloy that surpasses standard 6061-T6 billet aluminum in tensile strength, each adaptor uses the DRM (Dual Retention Method) to lock the spacer to the hub and the wheel to the spacer simultaneously. A hub-centric 95mm bore ensures a precise, vibration-free fit. Bolt pattern: 6/139.7. Thread pitch: 14x1.5. Sold as a pair with a limited lifetime warranty.
Key Features
- 23mm wheel offset increase per side for the 2024-2025 Toyota Land Cruiser
- DRM (Dual Retention Method) dual-locking design secures adaptor at hub and wheel faces
- HRS46106950 machined from H&R proprietary alloy with greater tensile strength than 6061-T6
- Hub-centric 95mm bore eliminates vibration at all speeds
- Bolt Pattern: 6/139.7 | Center Bore: 95mm | Thread: 14x1.5
- Sold as a pair (2 adaptors)
- Limited lifetime warranty
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2024-2025 | Toyota | Land Cruiser | 1958 |
| 2024-2025 | Toyota | Land Cruiser | First Edition |
Specifications
| Detail | Value |
|---|---|
| Part Number | 46106950 |
| Brand | H&R Special Springs |
| Type | Trak+ DRM Wheel Adaptor |
| Thickness | 23mm per side |
| Bolt Pattern | 6/139.7 |
| Center Bore | 95mm |
| Thread | 14x1.5 |
| Quantity | Pair (2) |
| Warranty | Limited Lifetime |
What Is Included
- 2x H&R HRS46106950 Trak+ 23mm DRM wheel adaptors
- Installation hardware (lug bolts/nuts)
Frequently Asked Questions
How much total track width does the HRS46106950 add?Each HRS46106950 adds 23mm per side, increasing total track width by 46mm (approximately 1.81 inches) when fitted on both sides of an axle.
What is the difference between the 46106950, 50106950, and 60106950 for the Land Cruiser?All three fit the 2024-2025 Toyota Land Cruiser with the same 6/139.7 bolt pattern, 95mm center bore, and 14x1.5 thread. The HRS46106950 adds 23mm per side, the HRS50106950 adds 25mm per side, and the HRS60106950 adds 30mm per side. Choose based on your desired offset and available wheel well clearance.
Are H&R DRM adaptors hub-centric for the 2024-2025 Toyota Land Cruiser?Yes. The HRS46106950 is machined to a 95mm center bore to match the Land Cruiser hub exactly, centering the adaptor and eliminating vibration at both the vehicle side and the wheel side.
What does DRM (Dual Retention Method) mean on H&R wheel adaptors?DRM means the adaptor uses lug hardware on both the inboard face (securing the adaptor to the hub) and the outboard face (securing the wheel to the adaptor). This dual-locking approach prevents adaptor movement independently of the wheel and eliminates the need for threading the adaptor directly onto existing studs.
Do I need to re-torque after installation?Yes. Re-torque all lug hardware at the correct specification after the first 50 to 100 miles of driving to confirm all fasteners remain properly seated.
How many sets do I need for all four corners of the Land Cruiser?Each set contains 2 adaptors and covers one axle. You will need two sets to equip all four wheels of the vehicle.
Will these adaptors fit aftermarket wheels for the 2024-2025 Land Cruiser?The HRS46106950 is designed to accept a 6/139.7 bolt-pattern wheel. Confirm your aftermarket wheel uses the 6/139.7 pattern and a compatible center bore before purchasing.
Are H&R Trak+ DRM adaptors street legal?H&R Trak+ adaptors are designed and engineered for street use. Confirm local regulations regarding wheel spacer and adaptor use in your area, as rules vary by jurisdiction.
Installation Instructions
- Safely raise and support the vehicle on jack stands at all four corners.
- Remove wheels and thoroughly clean hub face and wheel mounting surfaces of any rust or debris.
- Mount the HRS46106950 adaptor onto the hub using the inboard lug hardware. Torque to the factory lug specification in a star pattern.
- Mount the wheel onto the adaptor's outboard face and thread on the outboard lug hardware.
- Torque outboard lug hardware to the vehicle manufacturer's wheel specification in a star pattern.
- Lower the vehicle and perform a final torque check at ride height.
- Re-torque after 50 to 100 miles of driving.
- Verify clearance at full steering lock and full suspension compression before normal driving.
