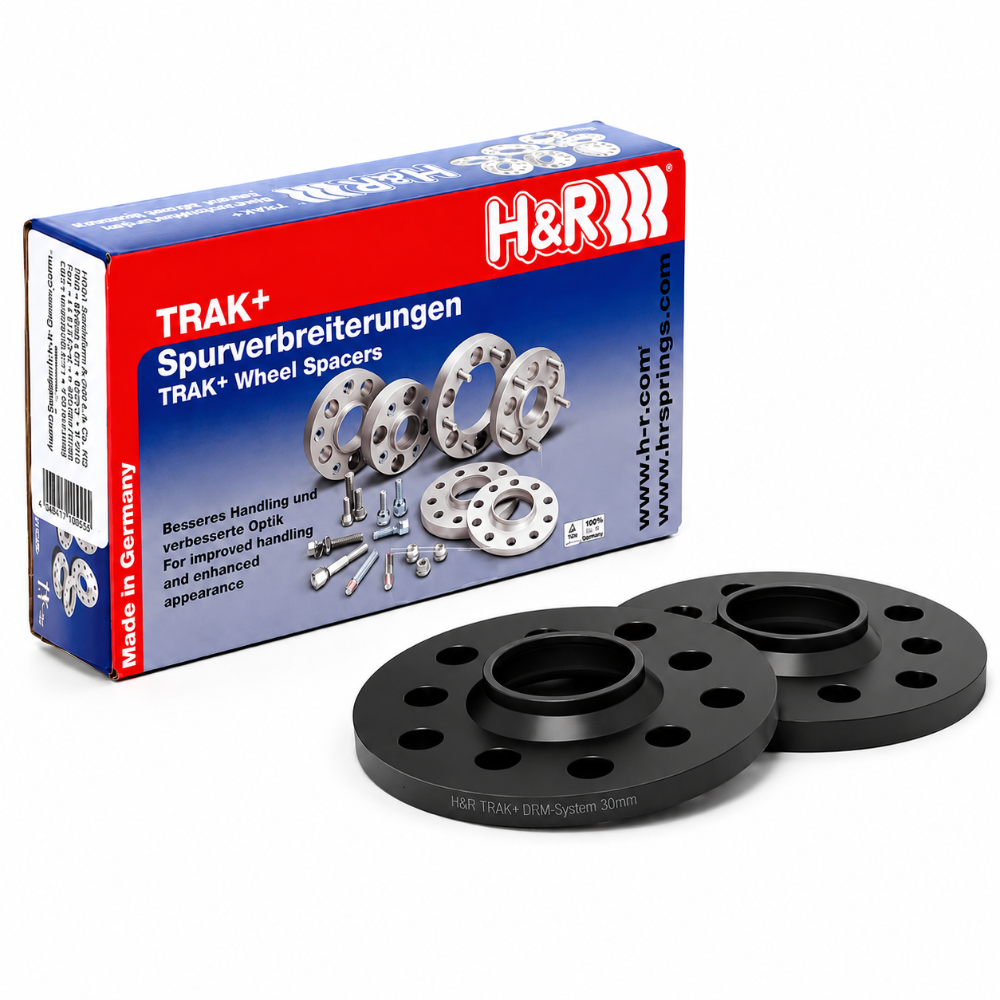

Add 30mm of Wheel Offset to Any 5/114.3 Vehicle with H&R Trak+ Black DRM Wheel Adaptors
The H&R HRS6065673SW Trak+ 30mm Black DRM Wheel Adaptors are a universal-fit solution for vehicles running a 5/114.3 bolt pattern with a 67.1mm center bore and 12x1.5 thread pitch. Each adaptor adds 30mm of outward wheel offset per side, moving your wheels closer to flush with the fenders for an aggressive, wide-body stance. The black anodized finish adds a clean, stealth look to the wheel area. Machined from H&R's proprietary high-strength alloy with greater tensile strength than standard 6061-T6 billet aluminum, the DRM (Dual Retention Method) uses lug hardware on both faces to independently secure the adaptor to the hub and the wheel to the adaptor. Sold as a pair with a limited lifetime warranty.
Key Features
- 30mm wheel offset increase per side for any 5/114.3 bolt-pattern vehicle
- Black anodized finish for a stealth, track-inspired appearance
- DRM (Dual Retention Method) dual-locking design for independent retention at hub and wheel
- Machined from H&R proprietary alloy with greater tensile strength than 6061-T6
- Hub-centric 67.1mm bore for a vibration-free fit
- Bolt Pattern: 5/114.3 | Center Bore: 67.1mm | Thread: 12x1.5
- Sold as a pair (2 adaptors)
- Limited lifetime warranty
Specifications
| Detail | Value |
|---|---|
| Part Number | 6065673SW |
| Brand | H&R Special Springs |
| Type | Trak+ DRM Wheel Adaptor |
| Finish | Black Anodized |
| Thickness | 30mm per side |
| Bolt Pattern | 5/114.3 |
| Center Bore | 67.1mm |
| Thread | 12x1.5 |
| Quantity | Pair (2) |
| Warranty | Limited Lifetime |
What Is Included
- 2x H&R Trak+ 30mm Black DRM wheel adaptors (HRS6065673SW)
- Installation hardware (lug bolts/nuts)
Frequently Asked Questions
What vehicles are compatible with the HRS6065673SW?These adaptors fit any vehicle with a 5/114.3 (5x114.3mm) bolt pattern, 67.1mm center bore, and 12x1.5 lug thread pitch. Common applications include many Toyota, Lexus, Nissan, Infiniti, Mitsubishi, Mazda, Hyundai, and Kia models. Always verify your vehicle's exact hub bore before purchasing.
How much total track width do I gain from the 30mm DRM adaptor?Each adaptor adds 30mm per side, for a total track width increase of 60mm (approximately 2.36 inches) when both adaptors are installed on one axle.
What is the difference between these and the 22mm and 20mm versions in the same series?All three use the same 5/114.3 bolt pattern, 67.1mm center bore, and 12x1.5 thread. The HRS6065673SW adds 30mm per side, the HRS4465673SW adds 22mm per side, and the HRS4065673SW adds 20mm per side. Choose based on your desired offset and available fender clearance.
Are H&R DRM adaptors hub-centric?Yes. The HRS6065673SW is machined with a 67.1mm center bore on the vehicle side, which registers on the factory hub for a vibration-free, hub-centric fit.
What does DRM (Dual Retention Method) mean?DRM means the adaptor is secured to the hub with its own inboard lug hardware, and the wheel is secured to the adaptor with separate outboard lug hardware. The two retention systems are independent, providing a redundant and highly secure installation.
Do I need to re-torque DRM adaptors after installation?Yes. Re-torque all lug hardware after the first 50 to 100 miles of driving to confirm all fasteners remain at the correct torque specification.
How many sets do I need for all four wheels?Each set contains 2 adaptors and covers one axle. Purchase two sets to equip all four corners of the vehicle.
What wheel bolt pattern do my replacement wheels need?Because this is an adaptor that uses the same 5/114.3 bolt pattern on both the hub side and the wheel side, your replacement wheels must also be 5/114.3. Confirm wheel center bore compatibility before purchasing.
Installation Instructions
- Safely raise and support the vehicle on jack stands.
- Remove wheels and thoroughly clean hub face and wheel mating surfaces.
- Mount the DRM adaptor onto the hub using the inboard lug hardware. Torque to the factory specification in a star pattern.
- Mount the wheel onto the adaptor's outboard face using the included outboard lug hardware.
- Torque outboard lug hardware to the vehicle manufacturer's wheel specification in a star pattern.
- Lower the vehicle and perform a final torque check at ride height.
- Re-torque after 50 to 100 miles of driving.
- Verify clearance at full steering lock and full suspension compression before normal driving.
