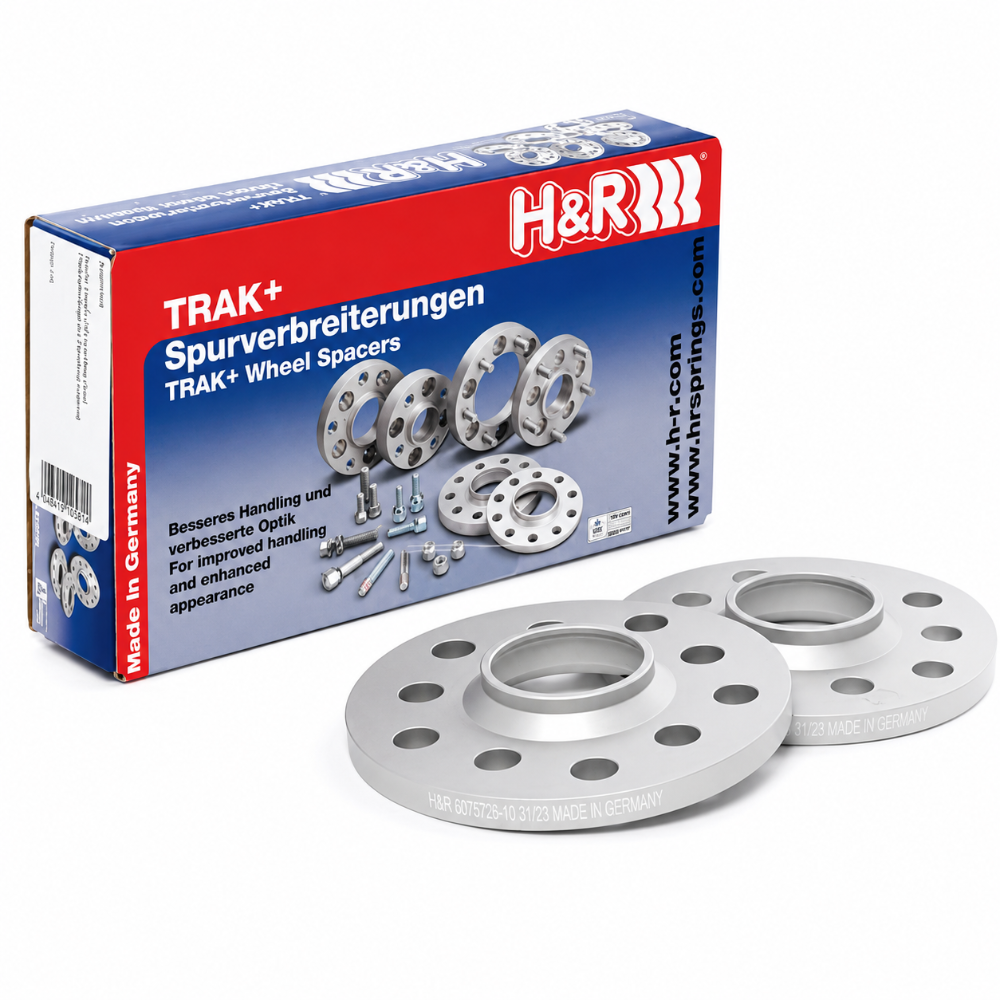

The H&R HRS3014580 TRAK+ DR 15mm Wheel Spacers 4x98 Bolt Pattern 58mm Centerbore is a wheel spacers & adapters for the normalized year, make, and model applications shown below. Match manufacturer part number 3014580, vehicle or wheel configuration, dimensions, position, included hardware, and package quantity before ordering.
Key Features
- New bolt length = original bolt length plus spacer thickness (15mm).
- DR system: spacer fits between wheel and hub using existing bolt holes.
- 2x H&R TRAK+ DR 15mm wheel spacers (one pair, covers one axle).
- Not compatible with steel rims.
- Hub length at the car must not exceed the specification noted in the TUV certificate.
- Longer wheel bolts required not included, order separately.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2012-2019 | Fiat | 500 | Confirm trim, drivetrain, axle load, factory suspension, body style, and exact H&R application |
Specifications
| Brand | H&R |
|---|---|
| Manufacturer Part Number | 3014580 |
| Product Type | Wheel Spacers & Adapters |
| Fitment Type | Vehicle Specific |
| Condition | New |
| H&R Part Number | 3014580 |
| System | DR Series |
| Spacer Thickness | 15mm per side |
| Track Widening Per Axle | 30mm |
| Bolt Pattern | 4x98 |
| Centerbore | 58mm |
| Thread Size | M12x1.25 |
| Fastener Type | Bolt (longer bolts required, not included) |
| Finish | Silver anodized |
| Material | Proprietary aluminum/magnesium alloy |
What's Included
One new H&R wheel spacers & adapters package identified by manufacturer part number 3014580, in the size and quantity stated by the title. Springs, dampers, mounts, bushings, end links, spacers, adapters, bolts, studs, nuts, tools, and other installation hardware are included only when expressly listed for this exact part number.
About H&R
H&R develops vehicle-specific lowering springs, lift springs, coilovers, sway bars, suspension components, Trak+ wheel spacers, adapters, and wheel hardware.
Related H&R Products
- Shop all H&R products
- H&R Trak+ 25mm DRM Wheel Adaptor Bolt 4/98 Center Bore 58.5 Stud Thread 12x1.25 Fiat 500/Abarth
- H&R Trak+ 5mm DR Wheel Adaptor Bolt 4/98 Center Bore 58 Bolt Thread 12x1.5
- H&R 11-21 Dodge Durango / Jeep Grand Cherokee DRS-MZ Wheel Spacer Pair - 18mm Width
Frequently Asked Questions
How do I confirm this spacer fits my vehicle and wheels?
Match bolt pattern, center bore, thickness, hub lip, thread pitch, attachment method, wheel-pocket depth, and the exact H&R part number.
Will I need longer wheel bolts or different hardware?
Hardware requirements depend on spacer type and thickness. Use the exact bolts, studs, or nuts specified by H&R and verify full thread engagement without interference behind the hub.
Do wheel spacers require a torque recheck?
Follow the current H&R and vehicle torque procedure and recheck the hardware after the initial service interval. Stop immediately if vibration, looseness, or contact is detected.
Installation Instructions
Follow current H&R instructions and the vehicle service manual for part number 3014580. Use the correct lifting, spring-compression, and torque procedures, replace specified one-time-use hardware, verify wheel, tire, brake-line, sensor, steering, and suspension-travel clearance, then complete an alignment and required fastener rechecks before normal driving.
