SKU: K53166
ICON 2007-2021 Toyota Tundra 1.63-3in Stage 2 3.0 Suspension System

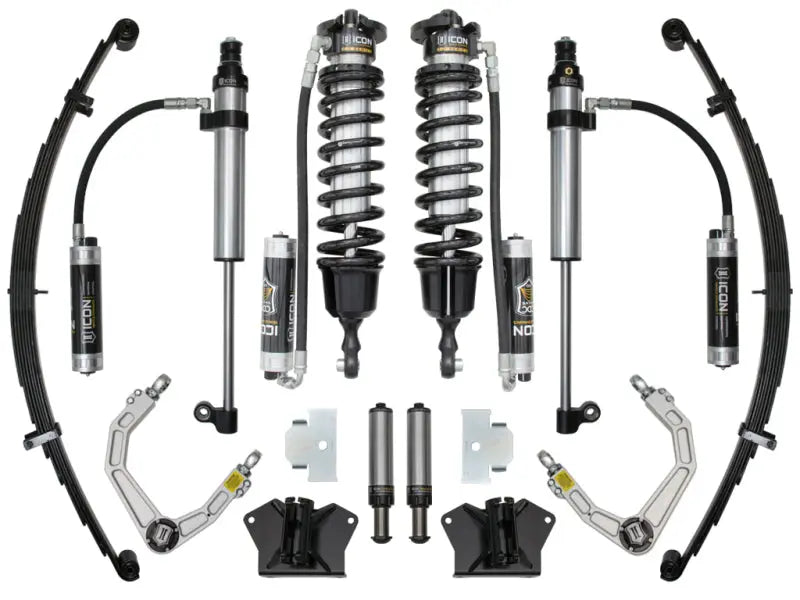

This full suspension upgrade kit fits 2007-2021 Toyota Tundra models including SR, SR5, Limited, Platinum, TRD Pro, 1794 Edition, Base, and Trail. It provides 1.63 to 3 inches of front lift with 3.0 Series coilover shocks featuring internal reservoirs and tubular Delta Joint upper control arms. Rear 3.0 Series remote reservoir shocks improve heat dissipation and damping for trails or highways.
Key Features
- 3.0 Series Front Coilovers: 2.5-inch diameter body with internal reservoirs delivers consistent damping through extended travel and high-speed off-road use.
- Tubular Delta Joint UCAs: Heavy-duty steel arms restore proper alignment and caster after lift with patented Delta Joint for smooth articulation and durability.
- Rear 3.0 Remote Reservoir Shocks: Adjustable reservoirs manage fluid temps during long runs with vehicle-specific tuning for Tundra rear suspension geometry.
- Dual-Rate Coil Springs: Progressive spring rates offer plush ride on pavement and firm control for loaded or aggressive driving conditions.
- Bolt-On Components: Includes all hardware brackets and fittings for direct installation without fabrication on 2WD and 4WD Tundras.
Product Notes
- Requires front strut spacer removal on factory-equipped trucks for proper fit.
- Regular shock maintenance extends service life in dusty or wet environments.
- Kit weighs 118 lbs and ships freight due to size.
Installation Notes
- Professional installation recommended.
- 4-6 hours labor with standard tools and alignment after install.
- Compatible with factory or aftermarket wheels 17-inch minimum diameter.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2021 | Toyota | Tundra | 1794 Edition |
| 2007-2013 | Toyota | Tundra | Base |
| 2007-2021 | Toyota | Tundra | Limited |
| 2013-2021 | Toyota | Tundra | Platinum |
| 2014-2021 | Toyota | Tundra | SR |
| 2007-2011,2014-2021 | Toyota | Tundra | SR5 |
| 2021 | Toyota | Tundra | Trail |
| 2015-2017,2019-2021 | Toyota | Tundra | TRD Pro |
Why Choose ICON?
- Engineered with input from professional off-road racing teams.
- 6061 aircraft-grade aluminum components resist corrosion and fatigue.
- CDCV or multi-stage valving options for custom damping adjustment.
Frequently Asked Questions
-
Q: Does K53166 fit 2019-2021 Toyota Tundra TRD Pro?
A: Yes it fits 2015-2017 and 2019-2021 TRD Pro models with bolt-on installation preserving factory ride dynamics. -
Q: What materials are used in the shocks and UCAs?
A: Shocks feature 6061 aluminum bodies and steel reservoirs UCAs use 1.25-inch DOM tubing with PTFE-lined Delta Joints. -
Q: What warranty covers this suspension system?
A: ICON provides limited lifetime warranty on coilovers and UCAs against manufacturing defects for original owner.
Shipping & Handling
- Method: UPS Freight or LTL carrier
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 42in x 18in x 14in
- Weight: 118 lbs
