ICON 2024 Land Cruiser 250 Series 1.25-3in Lift Stage 5 Suspension System - Tubular UCA

ICON
ICOK53365T
Coilovers
1 Units In Stock - Ships Next Business Day
$ 4,648.21
$ 4,648.21

SKU: K53365T

ICON 2024+ Land Cruiser 250 Series 1.25-3in Lift Stage 5 Suspension System - Tubular UCA

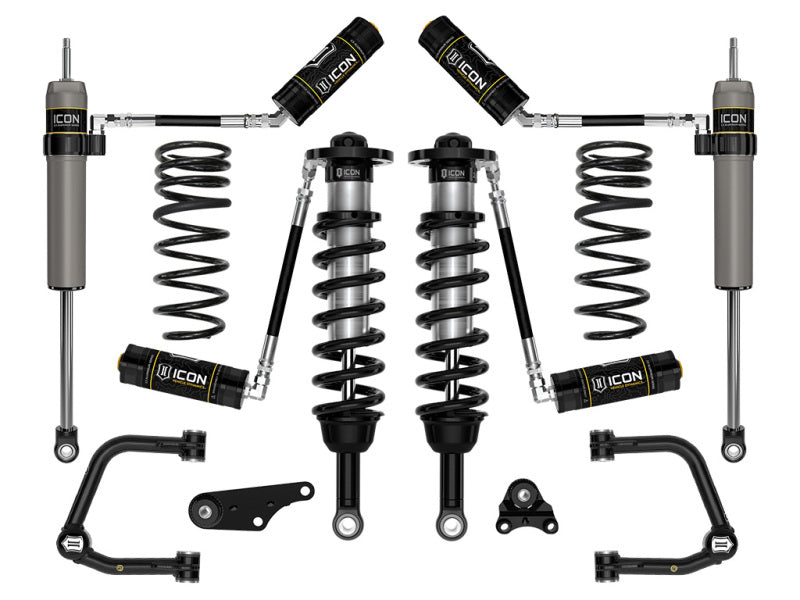

ICON Vehicle Dynamics Stage 5 suspension system delivers performance for 2024+ Toyota Land Cruiser 250 Series drivers. It increases wheel travel and damping ability for vehicle control and ride quality on and off-road. The kit includes 2.5 Series coilover shocks with remote reservoirs and engineered coil springs plus tubular upper control arms.

Key Features

  • 2.5 Series Remote Reservoir Coilover Shocks: Vehicle-specific tuning provides cooling through increased oil volume and heat dissipation to prevent fade during extended hard use
  • Height Adjustable 1.25-3in Front Lift: Allows larger wheel and tire setups while maintaining front suspension geometry and travel
  • Tubular Upper Control Arms (55520DJ): Increases alignment adjustability and strength with Delta Joint at ball joints for precise handling
  • Front Differential Drop Brackets (55168DJ): Matches coilover lengths to maximize front travel and eliminate CV joint bind
  • Polyurethane Differential Bushings: Replaces soft factory bushings to reduce movement under acceleration braking and cornering loads

Product Notes

  • Requires trimming of front bumper valence for maximum tire clearance
  • Coilovers use CDN valving tuned for Land Cruiser 250 weight and dynamics
  • Rear includes pair of 2.5 Series remote reservoir shocks (57846RJ) for 2in lift

Installation Notes

  • Professional installation recommended.
  • Front installation requires removal of OEM upper control arms and differential cradle.
  • Includes all necessary hardware. rear shocks bolt-on with no modifications.

This Part Fits

Year Make Model Submodel
2024+ Toyota Land Cruiser 250 Series

Why Choose ICON?

  • Engineered and tested for Land Cruiser 250 platform dynamics
  • Components built with 6061 aircraft grade aluminum and EDP coating
  • Backed by limited lifetime warranty on shocks and select parts

Frequently Asked Questions

  • Q: Will this fit 2024 Toyota Land Cruiser 250 Premium models?
    A: Yes designed for all 2024+ Land Cruiser 250 Series models including base and Premium with no modifications to fitment.
  • Q: What materials are used in construction?
    A: Shocks feature 6061 aluminum reservoirs and bodies with 17-4 stainless steel internals. UCAs are cadmium plated tubular steel.
  • Q: What is the warranty coverage?
    A: ICON provides limited lifetime warranty on coilover shafts and sleeves 1 year on other components against manufacturing defects.

Shipping & Handling

  • Method: Truck freight due to size and weight
  • Availability: In stock - ships same or next business day
  • Packaging: Ships in 4 boxes (largest 44x18x12 inches)
  • Weight: 118 lbs
