SKU: K93131T

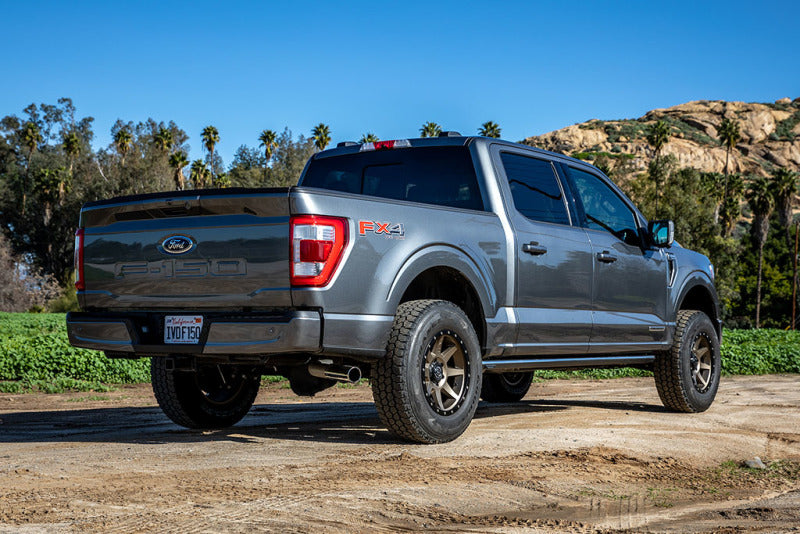

ICON 21-23 Ford F150 4WD 2.7in To 3.5in Stage 1 Suspension System

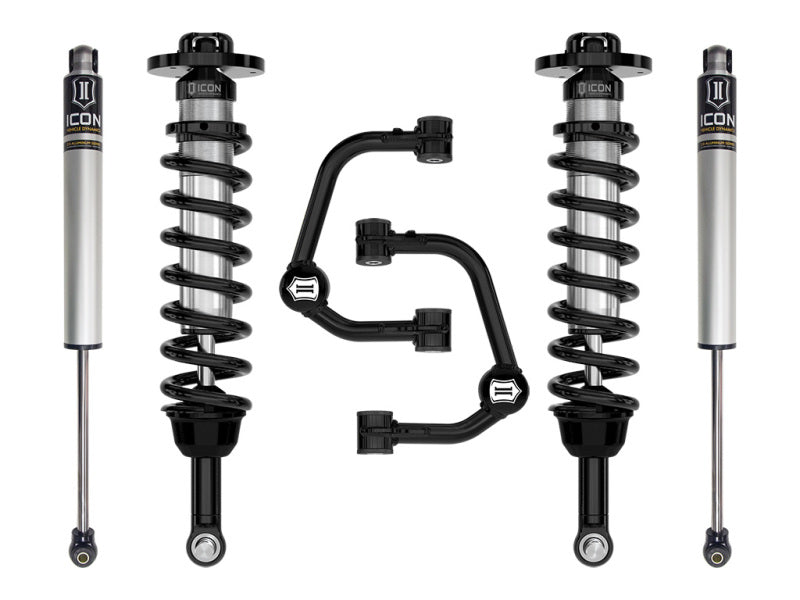

ICON Stage 1 Suspension System upgrades 2021-2023 Ford F-150 4WD trucks with 2.7 to 3.5 inches of front lift using bolt-on Delta Joint PRO upper control arms and 2.0 Performance Series shocks front and rear. This kit combines factory-style ball joint durability with motorsports-level strength and 90 degrees of articulation for bind-free movement across full suspension travel. Built for daily driving and off-road demands, it includes tubular steel UCAs, front coilover shocks, and rear extended travel shocks.
Key Features

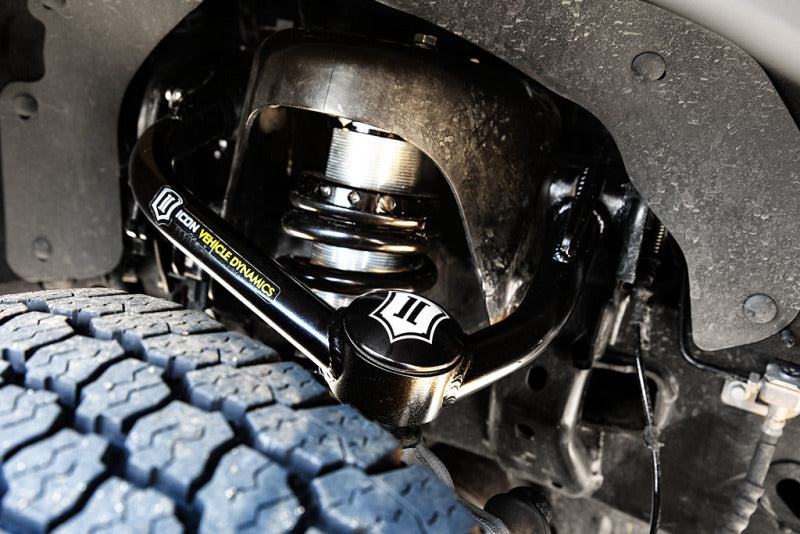

- Delta Joint PRO Upper Control Arms: Patented joint with chromoly ball and shaft hardened to Rockwell C55, 56 percent more bearing surface, graphite-impregnated sintered metal races, and rebuildable design for component replacement without buying a new joint
- 90 Degrees Articulation: 14 percent more range of motion than original Delta Joint for maximum suspension travel without binding, enabling full droop to compression
- 2.0 Performance Series Front Coilovers (52004): Threaded spring preload adjusters for 2.7-3.5in lift height, internal valving for balanced ride on and off pavement, uses factory mount locations
- 2.0 Performance Series Rear Shocks (52021): Aluminum body with 2.0in diameter for heat dissipation, extended travel lengths match front lift, velocity-sensitive damping
- Tubular Steel UCAs (58547DJ): Lighter and stronger than OEM cast arms, correct caster alignment for lifted setups, greaseable and serviceable
Product Notes
- Excludes Raptor and Tremor models which require specific kits
- Perform alignment after installation to ensure proper caster and camber settings
- Ships in one oversized box via freight carrier
Installation Notes
- Professional installation recommended.
- Bolt-on design with all hardware included, no welding required
- Reuse factory hardware where specified, torque to ICON specs during assembly
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2023 | Ford | F-150 | 4WD (excludes Raptor) |
Why Choose ICON?
- Engineered and tested for desert racing and street use
- Made in the USA with high-strength materials
- Proven design from professional off-road teams
Frequently Asked Questions
-
Q: Does this kit fit 2022 F-150 Lariat 4WD with 3.5L EcoBoost?
A: Yes, fits all 2021-2023 F-150 4WD models including XL XLT Lariat King Ranch Platinum Limited with 2.7L 3.5L or 5.0L engines, excludes only Raptor -
Q: What materials are used in the Delta Joint PRO?
A: Chromoly steel ball and shaft hardened to Rockwell C55, replaceable graphite-impregnated sintered metal races, improved grease channels and seals -
Q: What warranty coverage is provided?
A: ICON limited lifetime warranty on manufactured parts against defects in materials or workmanship
Shipping & Handling
- Method: UPS Freight or ground for heavy items
- Availability: In stock - ships same or next business day
- Packaging: Single oversized box 44in x 16in x 10in
- Weight: 92 lbs
