SKU: K93171
ICON 21-24 Ford F-150 Raptor 2-2.25in Lift Stage 1 Suspension System
ICON Vehicle Dynamics Stage 1 suspension system fits 2021-2024 Ford F-150 Raptor models equipped with factory OE shock absorbers. Front coil springs provide 2.25 inches of lift on standard Raptors and 2 inches on Raptor R models while rear coil springs add 2-2.5 inches of lift. This setup keeps full electronic shock control enhances on-road comfort and off-road capability and delivers precise handling with an aggressive stance.
Key Features

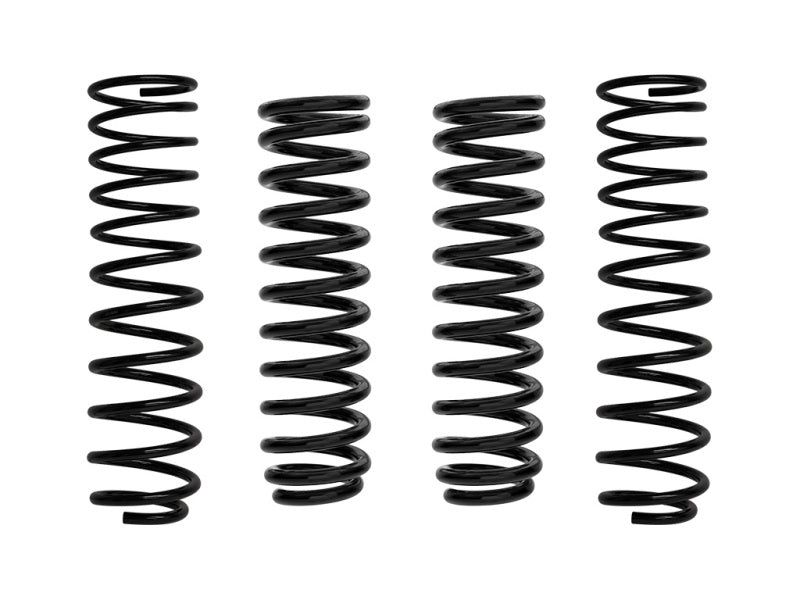

- Front Coil Springs (59550DJ): Raptor-specific design with linear spring rate raises front end 2.25in on standard models or 2in on Raptor R for better ground clearance and consistent damping with OE shocks
- Rear Coil Springs (45210): 2.0 Performance Series springs tuned for Raptor platform deliver 2-2.5in lift improve ride quality and support heavier loads without sacrificing control
- OE Shock Retention: Works with factory FOX Live Valve shocks front and rear preserving electronic ride control speed-sensitive damping and OEM ride height sensors
- High-Tensile Steel Construction: Springs built from premium chrome silicon steel resist sagging ensure long-term durability and maintain performance under extreme off-road conditions
- 37in Tire Compatibility: Clears up to 37in diameter tires on stock wheels increases approach angles and supports aggressive wheel travel for superior trail performance
Product Notes
- Front crossmember trimming required for proper coil spring clearance
- Inspect springs annually for wear and ensure proper torque on mounting hardware
- Kit weighs 50 lbs and ships freight or UPS depending on location
Installation Notes
- Professional installation recommended.
- Trim front crossmember to allow full droop and prevent spring bind
- Compatible with factory upper control arms shocks and electronic sensors no additional hardware needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2024 | Ford | F-150 | Raptor |
| 2023-2024 | Ford | F-150 | Raptor R |
Why Choose ICON Vehicle Dynamics?
- USA-made components with race-proven designs from King of the Hammers and Baja racing
- Vehicle-specific tuning delivers balanced ride quality on pavement and dirt
- Direct-to-consumer pricing and lifetime limited warranty on coil springs
Frequently Asked Questions
-
Q: Will this fit 2023-2024 F-150 Raptor R models?
A: Yes it provides 2in front lift and 2-2.5in rear lift on Raptor R while retaining OE shocks and sensors for full compatibility -
Q: What material are the springs made from?
A: High-tensile chrome silicon steel with dual-stage powder coat finish for corrosion resistance and fatigue strength -
Q: What is the warranty and install time?
A: Limited lifetime warranty on springs 6-10 hours install time with standard tools professional alignment required after install
Shipping & Handling
- Method: UPS Ground or Freight for oversized package
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 30in x 18in x 12in dimensions
- Weight: 50 lbs
