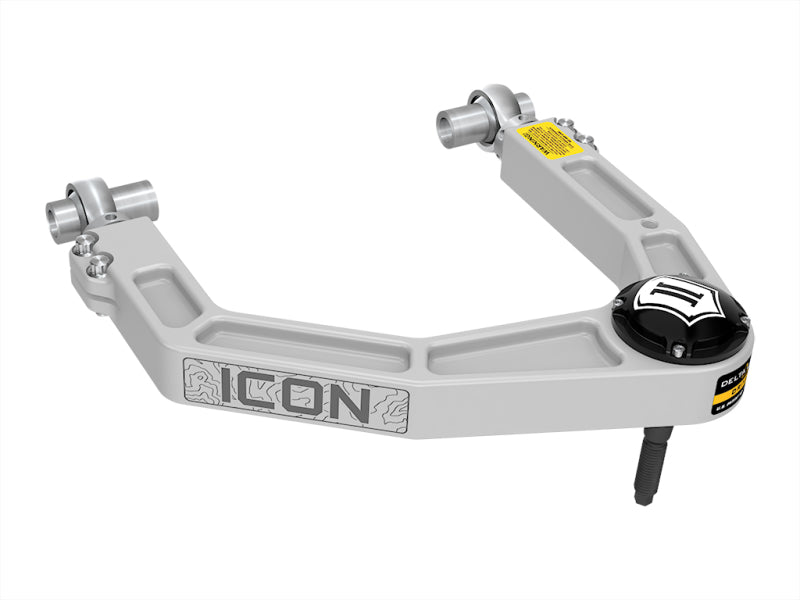

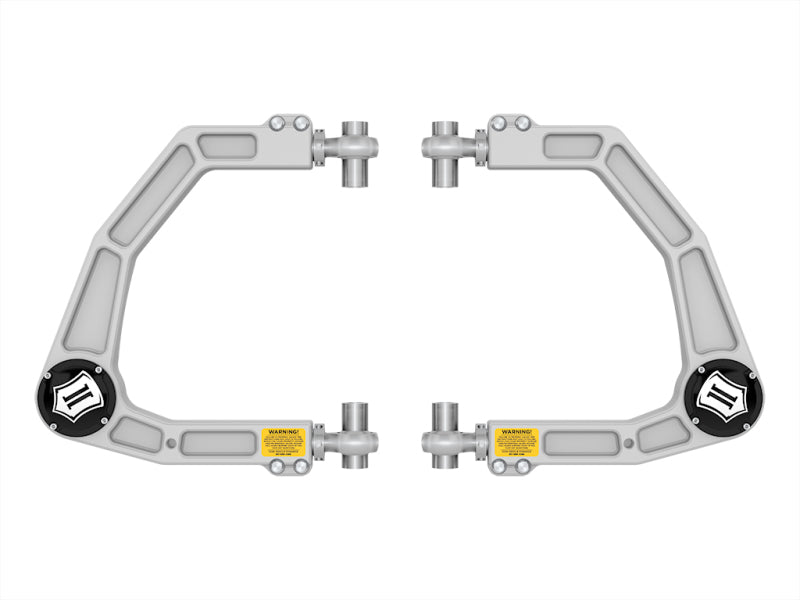

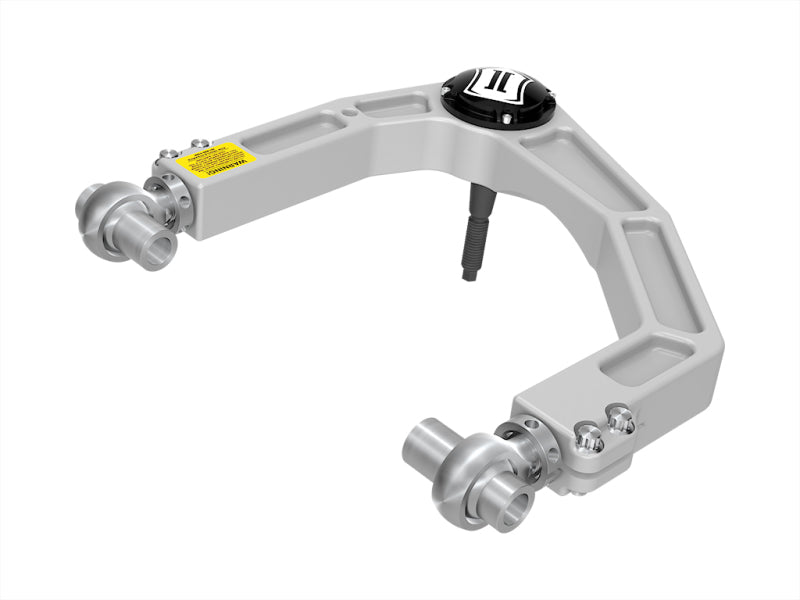

ICON 22-23 Toyota Land Cruiser 300 Billet Upper Control Arm Delta Joint Pro Kit
The ICON 58571DJ Delta Joint PRO Kit upgrades billet upper control arms on 2022-2023 Toyota Land Cruiser 300 Series vehicles. This kit replaces the standard Delta Joint with a performance joint delivering 90 degrees of articulation for bind-free suspension travel. It combines factory-style longevity with motorsports-grade strength for demanding off-road use.
Key Features
- Rebuildable Design: Serviceable components allow removal inspection and replacement without buying a new joint
- Larger Ball Bearing: 56 percent more bearing surface than standard Delta Joint with improved lubrication sealing for extended durability
- 90 Degrees Articulation: 14 percent greater range of motion than original Delta Joint for full suspension travel without bind
- Chromoly Construction: Ball and shaft hardened to Rockwell C 55 with graphite-impregnated sintered metal races for precise metal-to-metal interface
- Redesigned Lubrication: Efficient grease channels distribute lubricant without compromising bearing seals
Product Notes
- Upgrade kit designed for ICON billet upper control arms like 58570 on Land Cruiser 300
- Regular greasing with high-performance suspension grease extends joint life
- Clearance item with special order handling
Installation Notes
- Professional installation recommended.
- Disassemble ICON billet UCA to access and replace Delta Joint per ICON instructions
- Compatible with ICON 58570 upper control arms torque to factory specs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2023 | Toyota | Land Cruiser | 300 Series |
Why Choose ICON?
- Industry leader with proven off-road suspension systems
- High-strength chromoly and aluminum components built for abuse
- Engineered for precise fit and maximum articulation on Toyota platforms
Frequently Asked Questions
-
Q: Which vehicles and ICON parts does this kit install on?
A: Fits ICON billet UCAs like 58570 on 2022-2023 Toyota Land Cruiser 300 Series all trims -
Q: What materials are used in the Delta Joint PRO?
A: Chromoly steel ball and shaft hardened to Rockwell C 55 graphite-impregnated sintered metal races -
Q: What warranty coverage applies?
A: Covered under ICON Limited Lifetime Warranty against manufacturing defects
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure ICON box 9.5 x 7.5 x 3.5 inches
- Weight: 2.65 lbs
