SKU: 51210 | UPC: 00840103421742

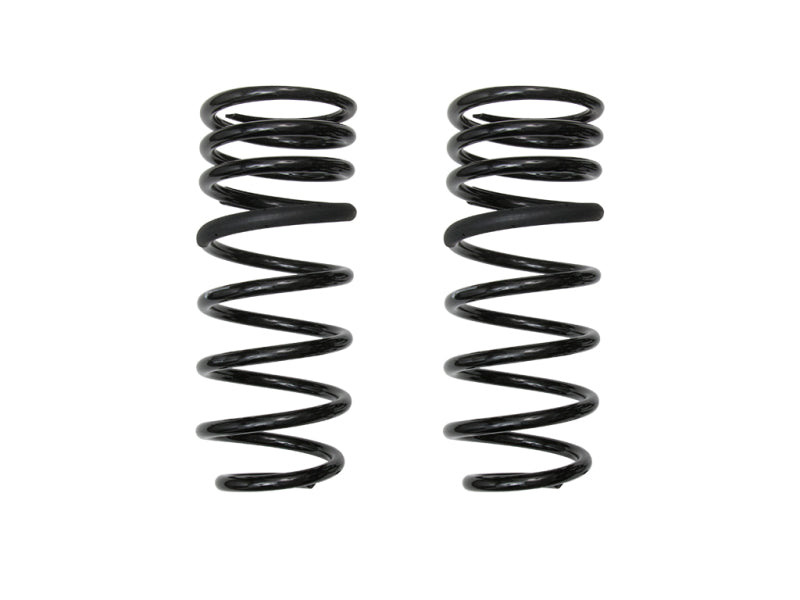

ICON 22-23 Toyota Tundra .5in Lift Triple Rate Rear Coil Spring Kit
ICON Triple Rate rear coil springs upgrade the suspension on 2022-2023 Toyota Tundra models including 1794 Edition Capstone Limited Platinum SR SR5 and TRD Pro. They add 0.5 inches of rear lift to non-TRD Tundras or hold original height on TRD-equipped trucks while improving ride comfort and off-road capability. Pair with ICON shocks for full suspension performance gains and lasting durability.
Key Features
- Triple-Rate Design: Softer initial rates for smooth ride and droop travel plus firm overload rate for bottoming resistance on rough terrain
- Precise Lift: Nets 0.5" rear lift on standard Tundra or 0" on TRD suspension package to match OE height with enhanced dynamics
- Chrome Silicone Steel Construction: Shot-peened and dual-stage ground for fatigue resistance and consistent spring rates over time
- ICON Engineering: Dyno-tested and vehicle-specific tuning for 2022-2023 Tundra rear suspension optimization
- Lifetime Guarantee: Covers sagging and breakage to ensure long-term reliability in daily or extreme use
Product Notes
- Designed for use with ICON shocks and control arms for complete rear suspension setup
- Inspect springs regularly for debris buildup to maintain performance
- Boxed for protection with 16in x 16in x 16in dimensions and 28lb shipping weight
Installation Notes
- Professional installation recommended.
- Requires removal of factory coils and compatible upper/lower control arms
- Uses factory mounting hardware torque to ICON specifications for secure fit
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2023 | Toyota | Tundra | 1794 Edition |
| 2022-2023 | Toyota | Tundra | Capstone |
| 2022-2023 | Toyota | Tundra | Limited |
| 2022-2023 | Toyota | Tundra | Platinum |
| 2022-2023 | Toyota | Tundra | SR |
| 2022-2023 | Toyota | Tundra | SR5 |
| 2022-2023 | Toyota | Tundra | TRD Pro |
Why Choose ICON?
- Proven in desert racing and overland builds for real-world durability
- USA-made components with rigorous quality control standards
- Vehicle-specific development for exact fit and tuned performance
Frequently Asked Questions
-
Q: Does this fit TRD Pro Tundra models with factory suspension?
A: Yes it provides 0" lift on TRD suspension package Tundras including TRD Pro to retain OE height while upgrading ride and control -
Q: What material are the coils made from?
A: High-strength chrome silicone steel with shot-peening and dual-stage grinding for extended spring life and consistent rates -
Q: What is the warranty coverage?
A: Lifetime guarantee against sagging or breakage when installed and used as directed on compatible 2022-2023 Toyota Tundra
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 16in L x 16in W x 16in H
- Weight: 28 lbs
