Sku: 38820
KEY FEATURES
- 100 pct. Digital Wideband Air/Fuel Ratio Technology
- 4 BAR MAP Sensor; Pressure Range -29 inHG to 43.5 PSI; -1 to 3BAR
- All-In-One; Intelligent Boost Control/Wideband AFR Gauge

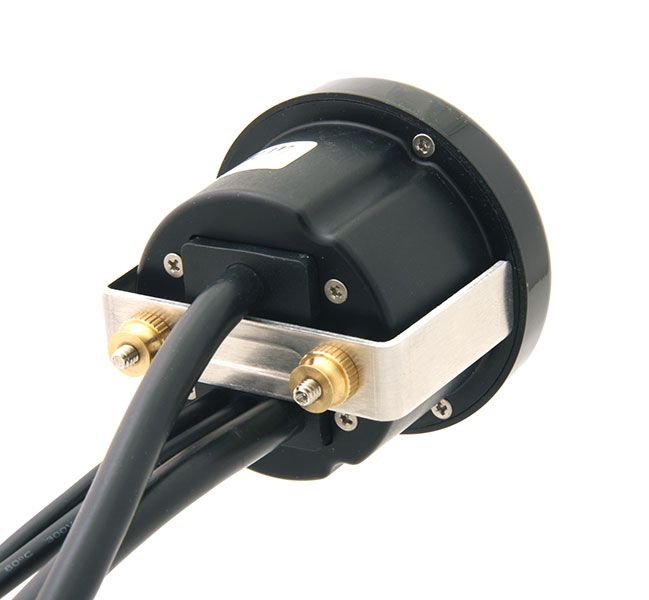

- Controller and Display House In 52mm [2-1/16 in.] Dia. Gauge Body
- Incl. High Resolution Solenoid
- Interchangeable Bezels; Black and Silver Included
- Interchangeable Faceplates; Black and White Included
- No PC Required For Configuration
- OLED User Configurable Display; Boost; Shift Light; AFR
- Patented DirectDigital™ Wideband Sensor Control
RANGE
- 29 inHG to 43.5 PSI (-1 to 3 BAR) / 7.4:1 - 22.4:1 AFR (0.5 - 1.5 LAMBDA)
Weight 4.0 lbs

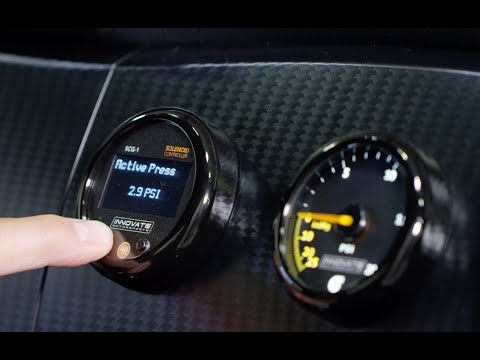

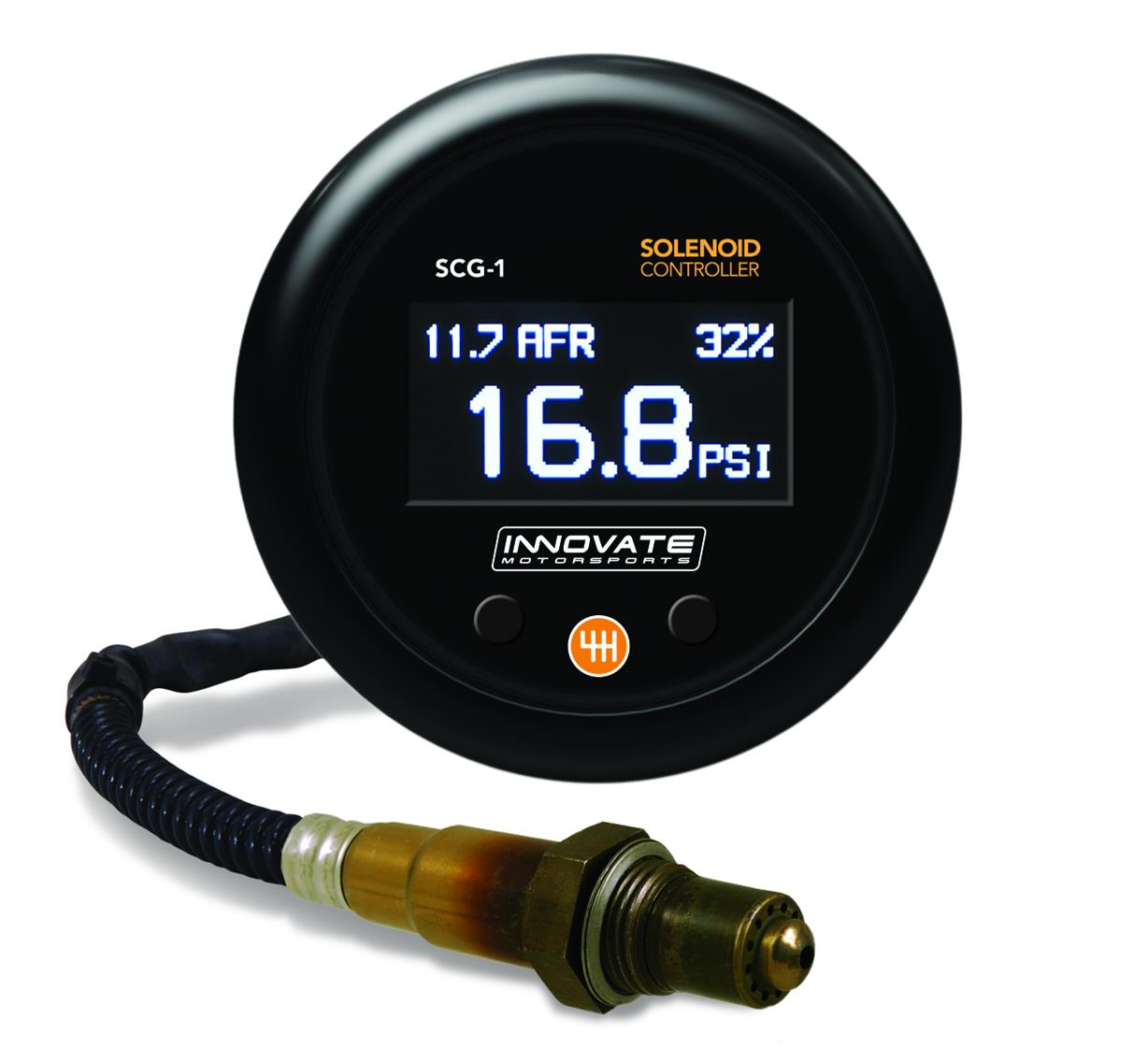

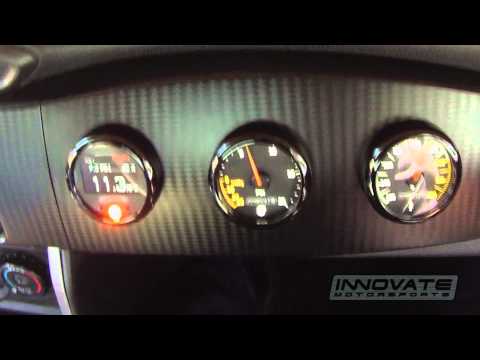

The Innovate Motorsports SCG-1 is a revolutionary approach to boost control that integrates an advanced standalone boost controller with Innovate’s industry leading DirectDigital™ wideband air fuel ratio technology. When Innovate Motorsports decided to build a boost controller, they knew they had to offer more capabilities than other products available today, while still maintaining the user friendly functionality demanded by their customers. Instead of repackaging the same boost control technology that has been used for decades, Innovate choose to pair their advanced O2 sensor control technology with an all-new, proprietary solenoid control that provides superior boost control accuracy, response and safety. Innovate also added a user programmable shift light and housed the entire package in a compact gauge body for ease of installation and use. As with all Innovate Motorsports air/fuel ratio products, the SCG-1 utilizes our 100% digital wideband air/fuel ratio technology to provide real time feedback to the SCG-1. This air/fuel information is displayed on an integrated OLED display along with manifold pressure and wastegate duty status. The air/fuel ratio information is also used to provide a user definable boost cut that enhances the safety margin over most competitors offerings that only rely on over boost threshold. The SCG-1 has a full-programmable analog output ideal for applications using standalone ECU’s, piggy-back ECU’s or external data loggers. The SCG-1 also has a digital input/output for integration with our other Modular Tuning System (MTS) devices. This same digital output can be used to record air/fuel ratio, solenoid duty cycle, engine speed and manifold pressure with our free LogWorks PC software to help you dial in a perfect boost curve.
The Innovate Motorsports SCG-1 is a revolutionary approach to boost control that integrates an advanced standalone boost controller with Innovate’s industry leading DirectDigital™ wideband air fuel ratio technology. When Innovate Motorsports decided to build a boost controller, they knew they had to offer more capabilities than other products available today, while still maintaining the user friendly functionality demanded by their customers. Instead of repackaging the same boost control technology that has been used for decades, Innovate choose to pair their advanced O2 sensor control technology with an all-new, proprietary solenoid control that provides superior boost control accuracy, response and safety. Innovate also added a user programmable shift light and housed the entire package in a compact gauge body for ease of installation and use. As with all Innovate Motorsports air/fuel ratio products, the SCG-1 utilizes our 100% digital wideband air/fuel ratio technology to provide real time feedback to the SCG-1. This air/fuel information is displayed on an integrated OLED display along with manifold pressure and wastegate duty status. The air/fuel ratio information is also used to provide a user definable boost cut that enhances the safety margin over most competitors offerings that only rely on over boost threshold. The SCG-1 has a full-programmable analog output ideal for applications using standalone ECU’s, piggy-back ECU’s or external data loggers. The SCG-1 also has a digital input/output for integration with our other Modular Tuning System (MTS) devices. This same digital output can be used to record air/fuel ratio, solenoid duty cycle, engine speed and manifold pressure with our free LogWorks PC software to help you dial in a perfect boost curve.
California Residents: Prop 65 WARNING
KIT INCLUDES
SCG-1 gauge, 4 BAR Map sensor, Custom MAC Boost Solenoid w/bracket, Vacuum hose kit, Silver & Black Bezels, White & Black Faceplates, LSU 4.9 O2 Sensor, 8 Ft. Sensor Cable, 1" Exhaust Bung, Program Cable, and Manual.
INSTALLATION AND SETUP
Installation of the SCG-1: Boost Control & Wideband Air/Fuel Ratio Gauge Kit, ALL-IN-ONE is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Innovate also has a great network of local dealers, tuners, race shops, and dyno shops that can assist you in choosing, installing and getting the most out of your Innovate products. Click here to find a dealer near you.
