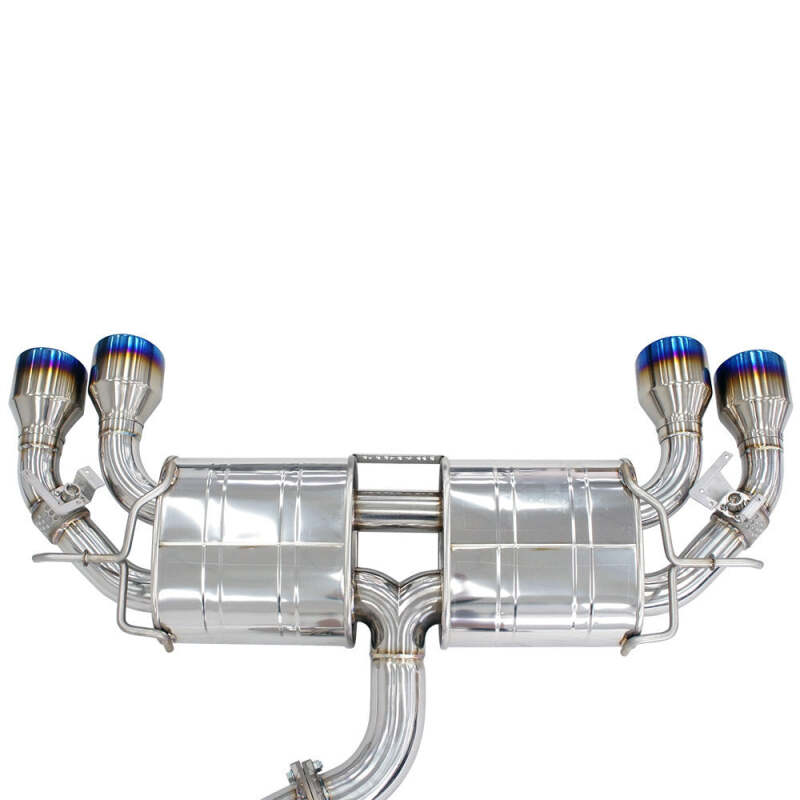

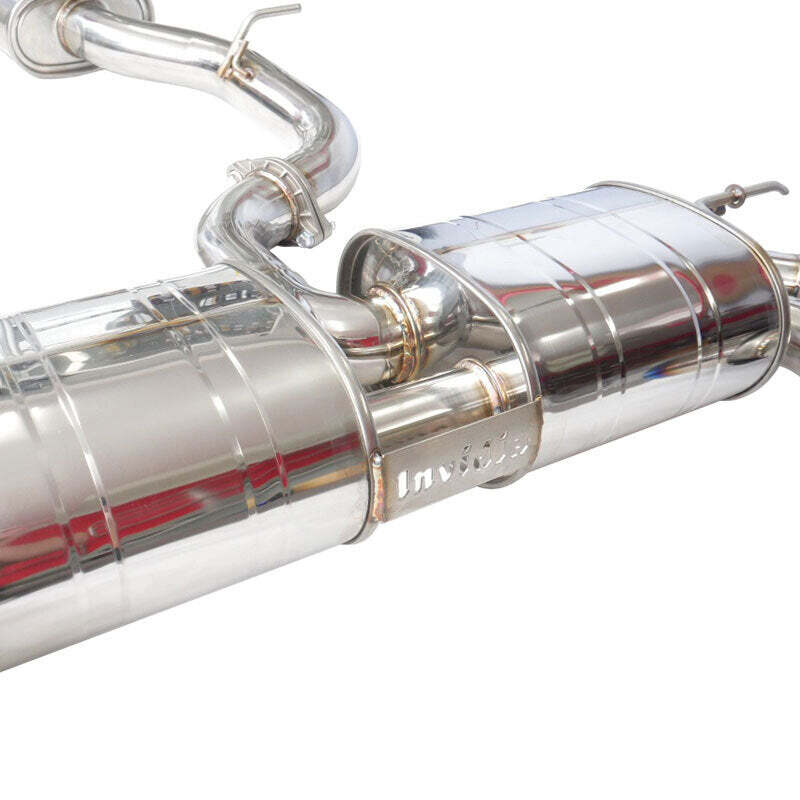

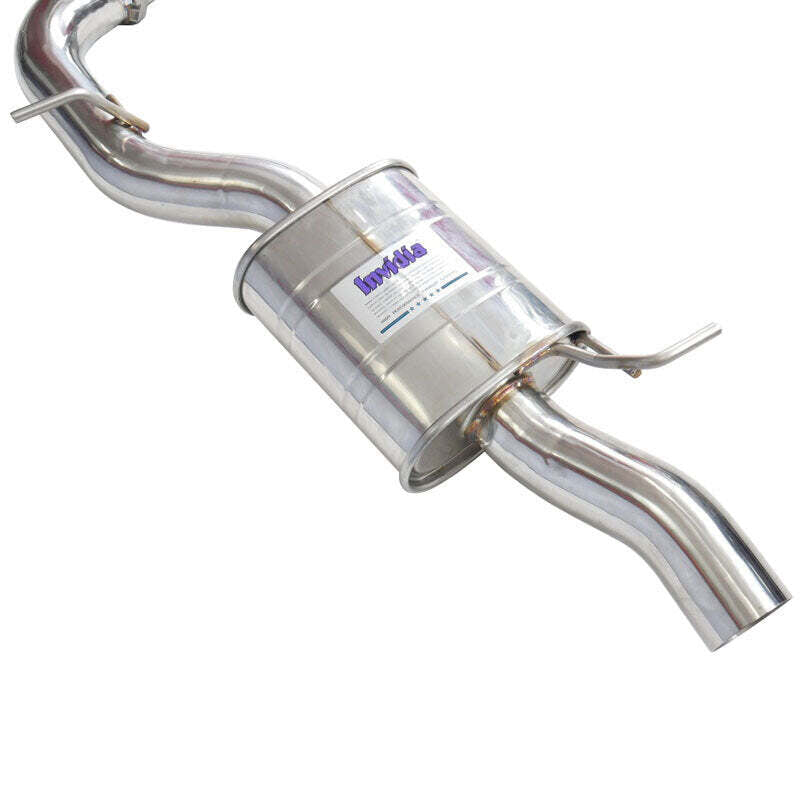

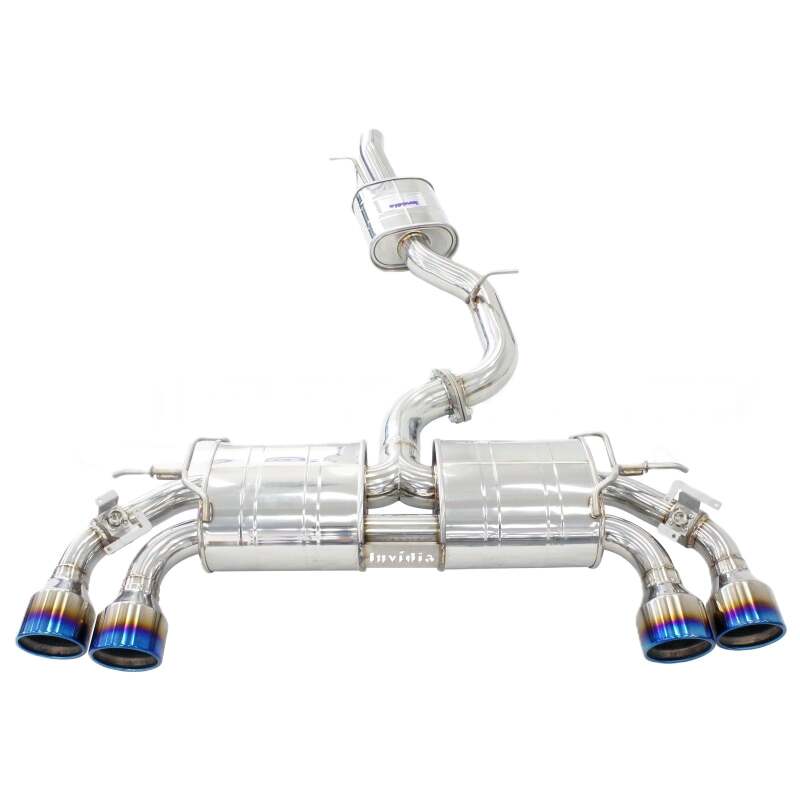

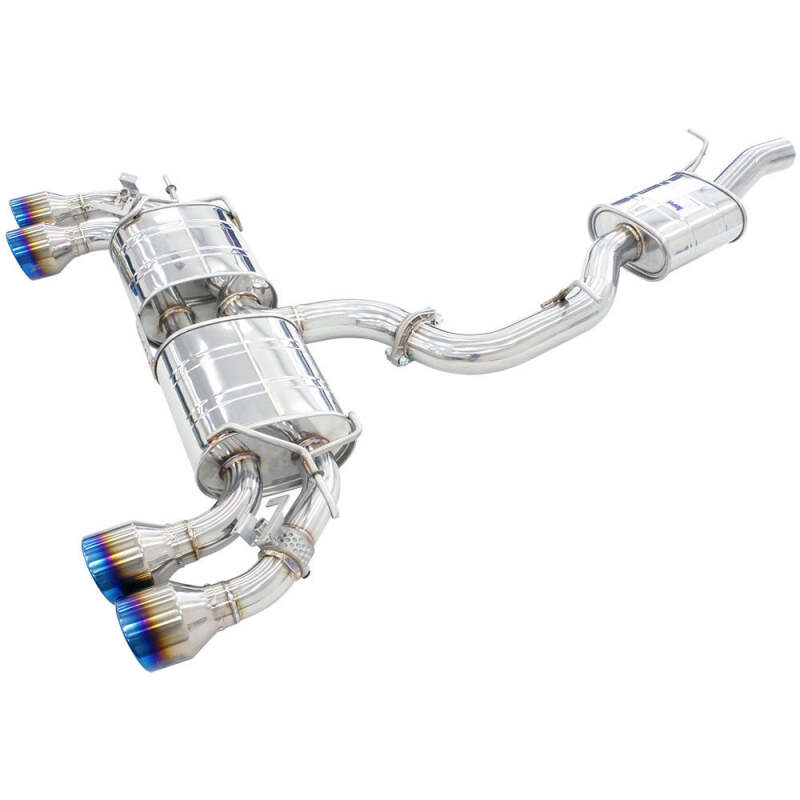

The Invidia R400 valved cat back exhaust for the 2022-2024 Volkswagen Golf R MK8 uses 76mm polished 304 stainless steel piping with cast stainless steel flanges for a precise, leak free fit. The R400 muffler design fills the sound gap between Invidia's Q300 and N1 systems, producing an aggressive exhaust note while minimizing harsh cabin noise at highway speeds. This version features four 101mm rolled edge titanium tips with a burnt finish.
| Year | Make | Model |
|---|---|---|
| 2022-2024 | Volkswagen | Golf R |
| Detail | Value |
|---|---|
| Manufacturer part number | HS22GFR8GV4RT |
| Piping diameter | 76mm |
| Piping thickness | 1.5mm |
| Piping material | 304 stainless steel, polished |
| Flange material | Cast 304 stainless steel |
| Muffler style | R400 valved, resonated |
| Exit configuration | Dual exit, 4 tips |
| Tip material | Titanium |
| Tip finish | Burnt titanium, rolled edge |
| Tip diameter | 101mm |
Invidia engineers performance exhaust systems using 3D scanning and cast flanges to ensure precise, leak free fitment, backed by dyno and sound testing to balance exhaust flow with a refined cabin experience.
Yes, it reuses the OEM exhaust valve system, which is not included with this exhaust and must be transferred from the factory exhaust.

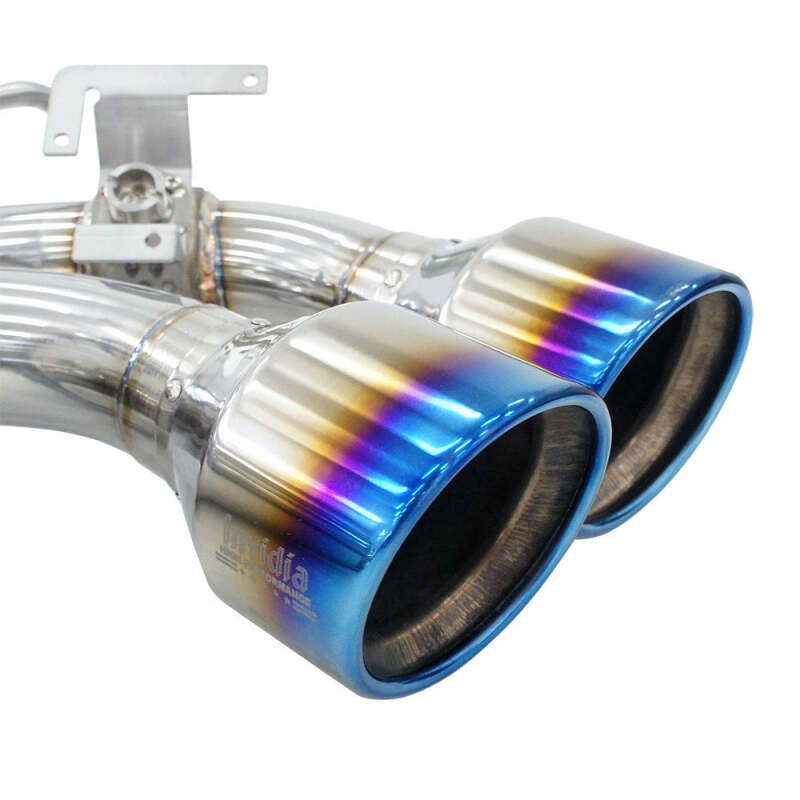

What tip style does this version use?This version uses four 101mm rolled edge titanium tips with a burnt finish.
Is this exhaust resonated?Yes, the R400 muffler design is resonated to balance an aggressive tone with reduced highway cabin noise.
What material is the piping made from?The piping is 76mm polished 304 stainless steel with a 1.5mm wall thickness.
Does this exhaust include installation hardware?Yes, gaskets and nuts and bolts are included.
Will this fit a Golf R MK7 or MK7.5?No, this exhaust is designed specifically for the 2022-2024 Golf R MK8 and is not compatible with the MK7 or MK7.5 platform.
What flange material does this exhaust use?It uses cast 304 stainless steel flanges for a leak free, precise fit.
Is professional installation recommended?Yes, professional installation is recommended to ensure a proper fit and to correctly transfer the factory valve control components.
