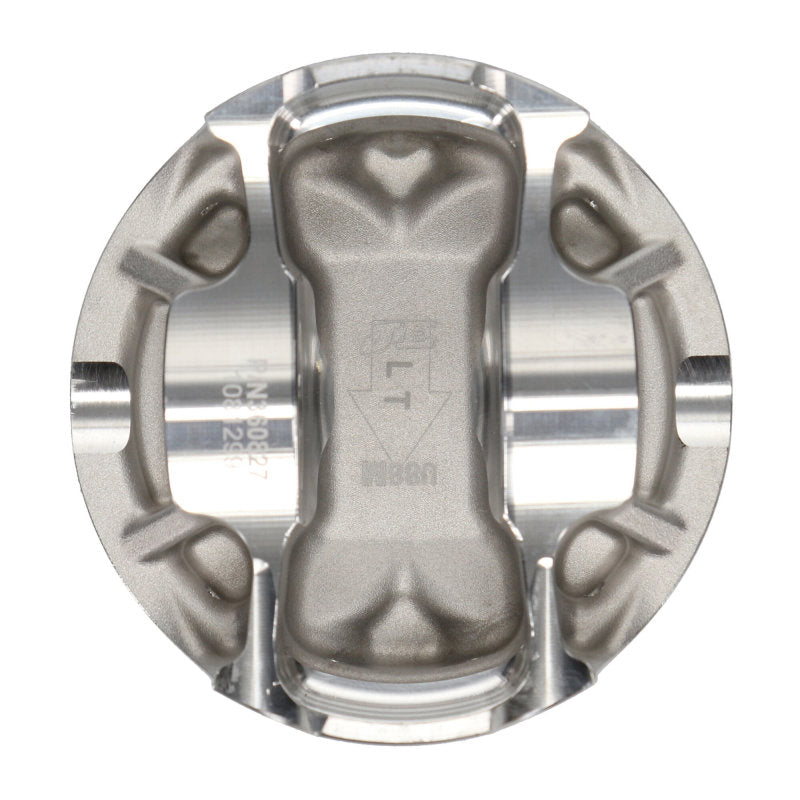

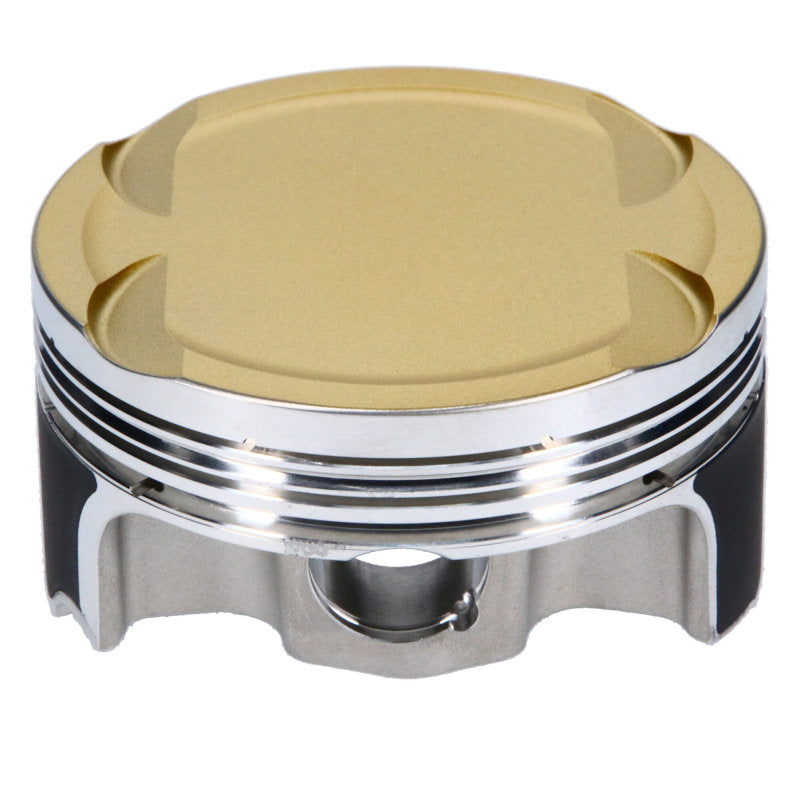

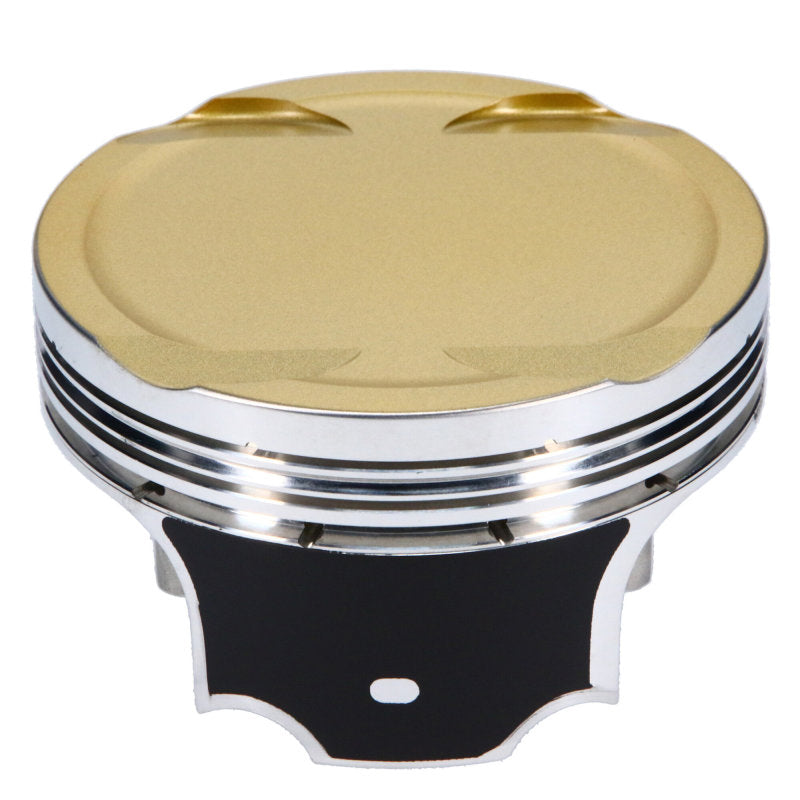

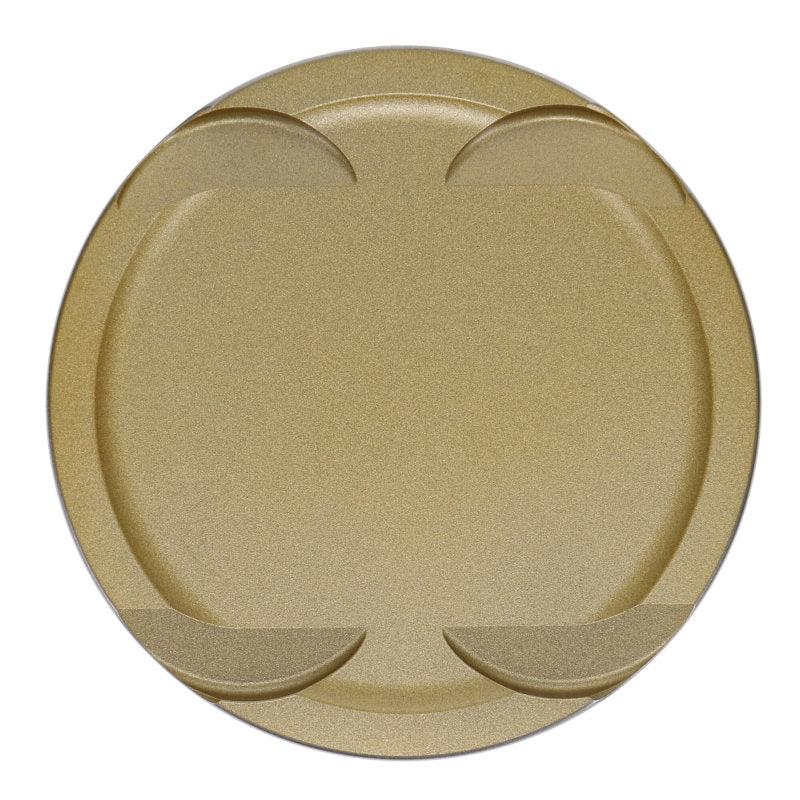

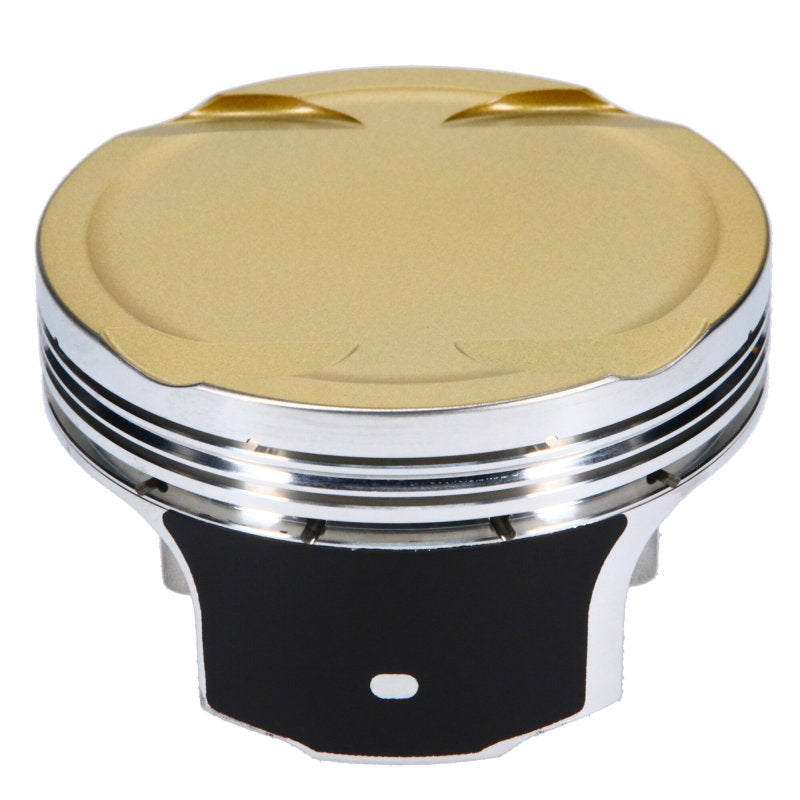

The JE Pistons forged piston kit identified by manufacturer part number 360833 is designed to provide the piston geometry, material, and compression configuration for a specific performance-engine build. Final compatibility depends on the complete engine combination and measured dimensions, not the part title alone.
Key Features
- JE Pistons Ultra Series pistons combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2018-2020 | Ford | F-150 | Verify engine code and all build dimensions |
| 2018-2023 | Ford | Mustang | Verify engine code and all build dimensions |
Specifications
| Brand | JE Pistons |
|---|---|
| Manufacturer Part Number | 360833 |
| Product Type | Forged Piston Kit |
| Fitment Type | Vehicle Specific |
| Condition | New |
| GTIN | 00193564031099 |
| Piston Series | JE Ultra Series |
| Cylinder Head | MODULAR 5.0L COYOTE GEN 3 |
| Bore Diameter | 3.661 IN |
| Piston Head Type | Dome |
| Compression Height | 1.168 IN |
| Piston Volume | 1.36 CC |
| Piston Material | 2618 |
| Forging Type | FSR |
| Compression Ratio | 11:1 |
| Ring Set Included | No |
| Top Compression Ring Thickness | 0.0395 IN |
| Second Compression Ring Thickness | 0.0480 IN |
| Oil Ring Thickness | 0.111 IN |
| Wrist Pin Outer Diameter | 0.866 IN |
| Wrist Pin Wall Thickness | 0.230 IN |
| Wrist Pin Material | 9310 Nickel Carbon Steel Alloy |
What's Included
One new JE Pistons forged piston kit identified by manufacturer part number 360833 in the quantity and configuration stated by the official specifications. Rings, pins, locks, coatings, and installation components are included only when expressly listed for this exact part number.
About JE Pistons
JE Pistons engineers forged racing pistons, piston rings, wrist pins, locks, and related engine components for measured domestic, import, European, and professional motorsport builds.
Related JE Pistons Products
- Shop all JE Pistons products
- JE Pistons 18+ Ford Coyote Gen 3 3.661in Bore 11:1 CR 1.4cc Dome Pistons - Set of 8
- JE Pistons 18+ Ford Coyote Gen 3 3.661in Bore 12.0:1 CR 7.0cc Dome Pistons - Set of 8
- JE Pistons Gen 3 Coyote 5.0L 3.701in Bore 12:1 CR 5.86cc Dome Pistons - Set of 8 Pistons
Frequently Asked Questions
Will JE Pistons 360833 fit my 2018-2020 Ford F-150?
That year, make, and model range is listed. Confirm the exact engine code, bore, stroke, rod length, pin size, cylinder head, compression target, and machine-shop measurements before ordering.
Are piston rings included with this 3.661 IN JE piston kit?
The official JE specification lists Ring Set Included as No. Confirm pins, locks, quantity, and any upgraded pin option in the What's Included section before assembly.
What must the machine shop measure before final assembly?
Verify finished bore diameter, piston-to-wall clearance, ring end gaps, deck height, piston-to-valve clearance, pin fit, bearing clearances, and final compression ratio for the intended fuel, boost, and power level.
Installation Instructions
Use the current JE Pistons instructions for part number 360833 and the engine builder's measured assembly specifications. A qualified machine shop must verify bore finish, clearances, ring gaps, pin fit, lock installation, orientation, balance, deck height, valve clearance, compression ratio, lubrication, and break-in before operation.
