SKU: 367218 | UPC: 193564217950

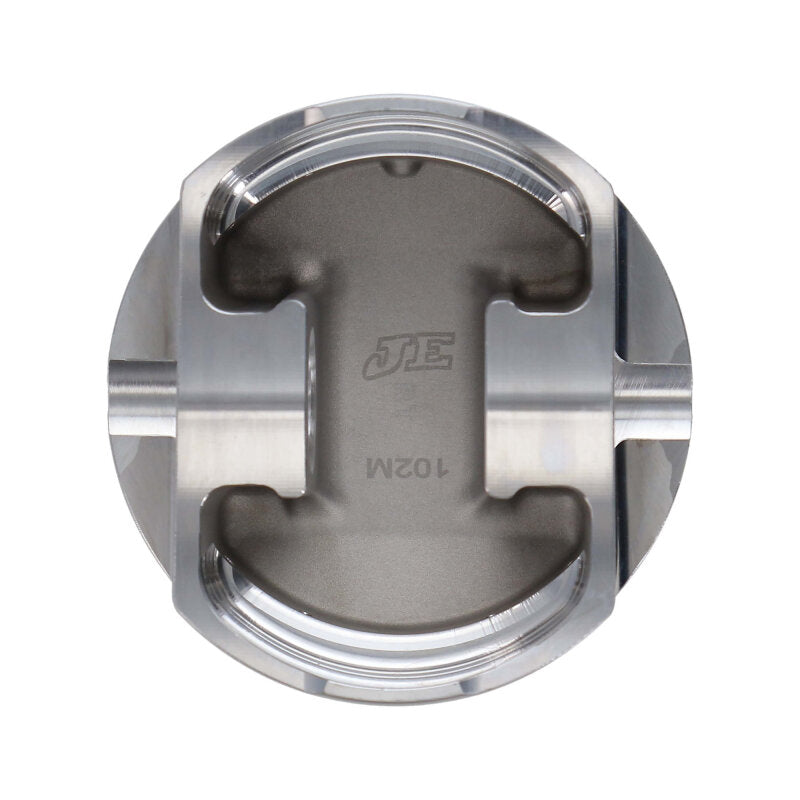

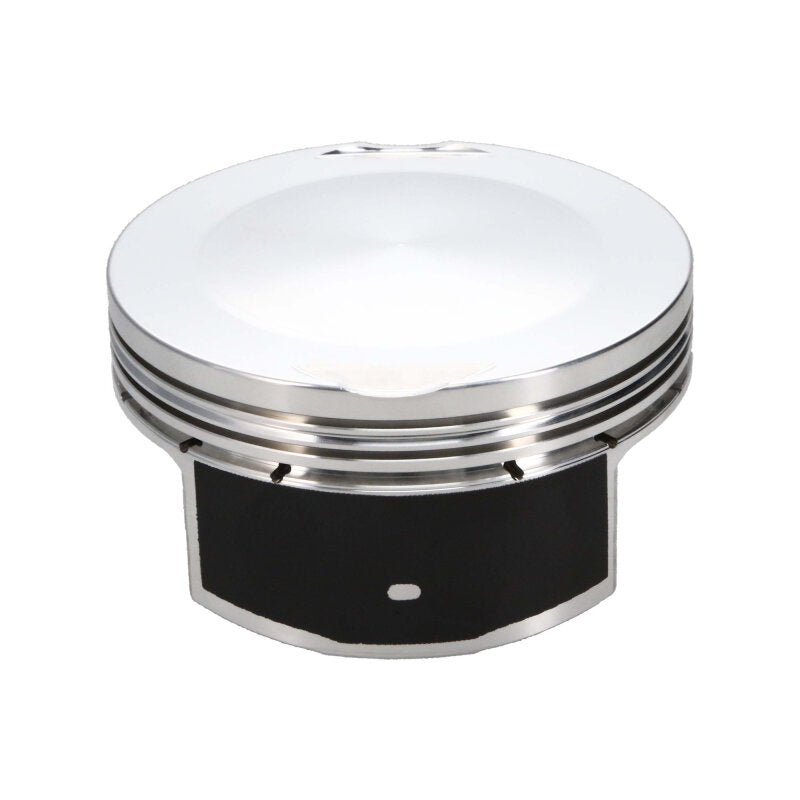

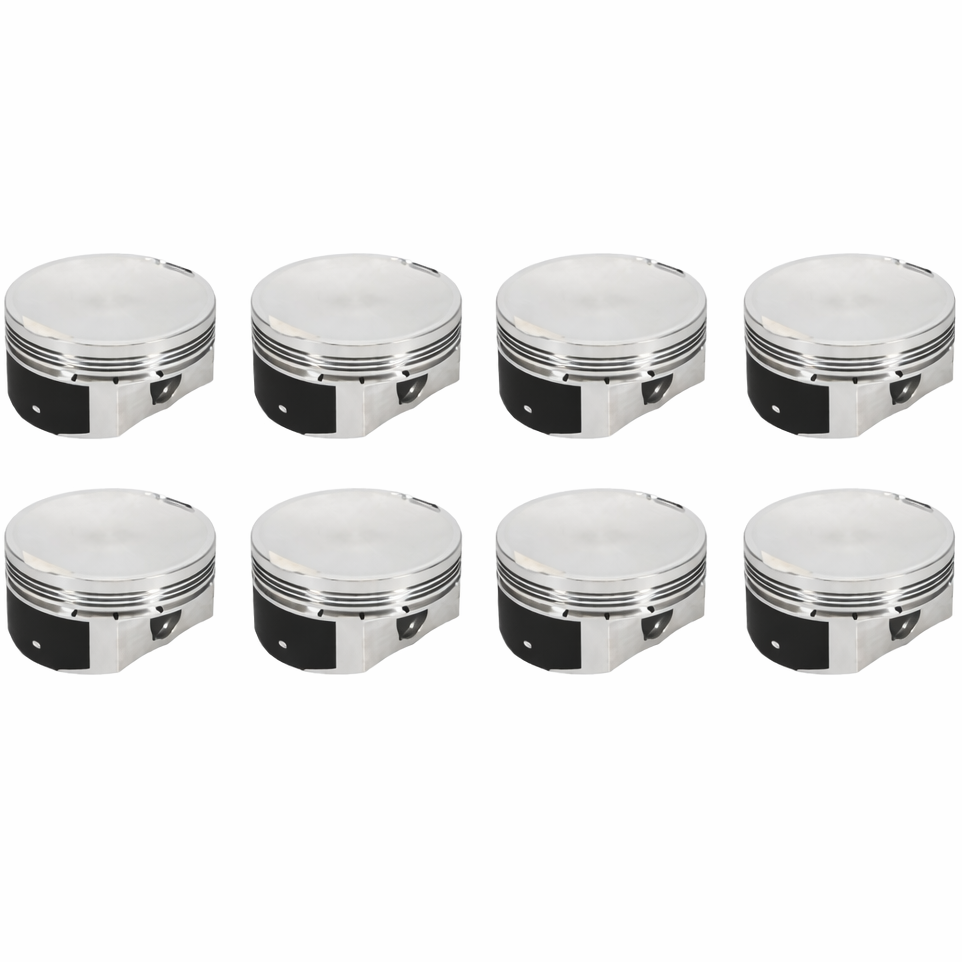

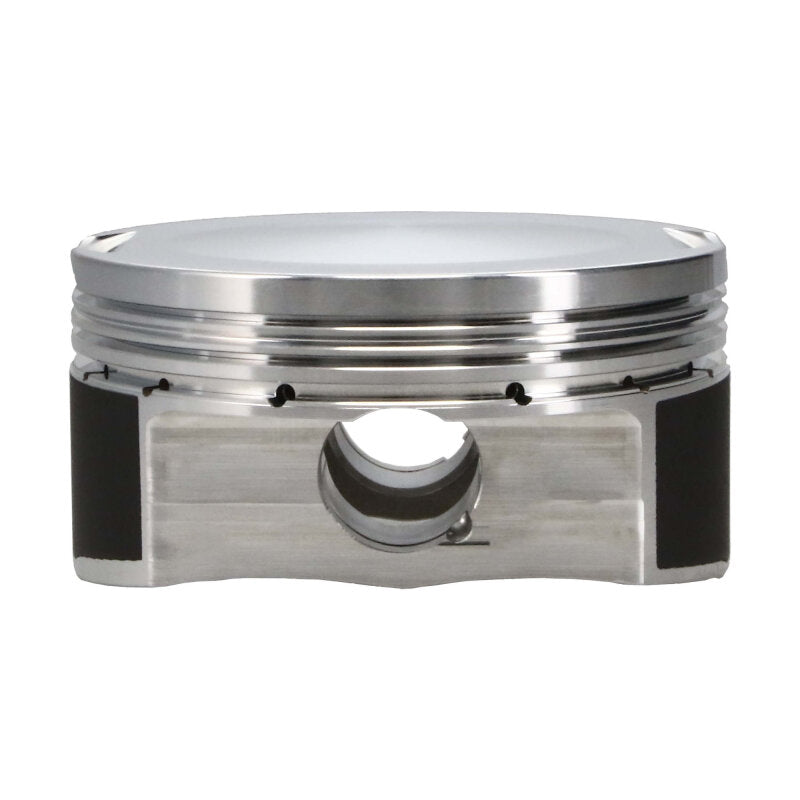

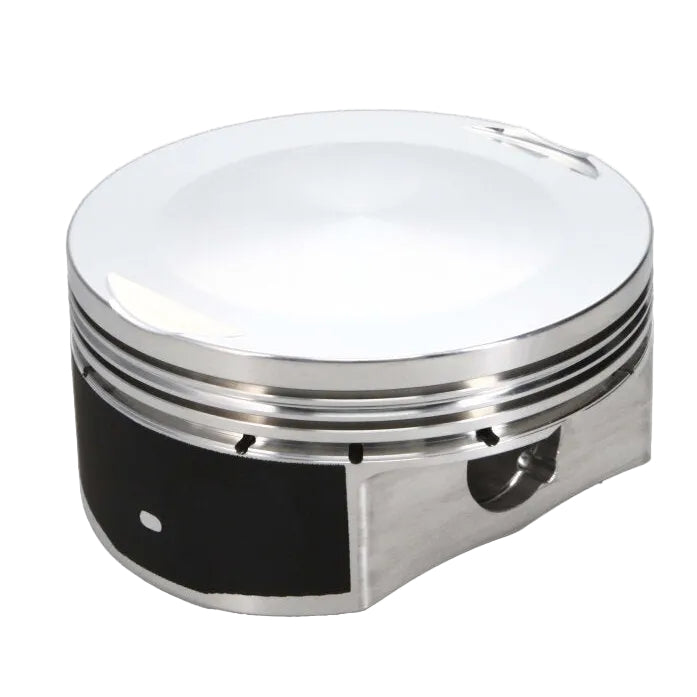

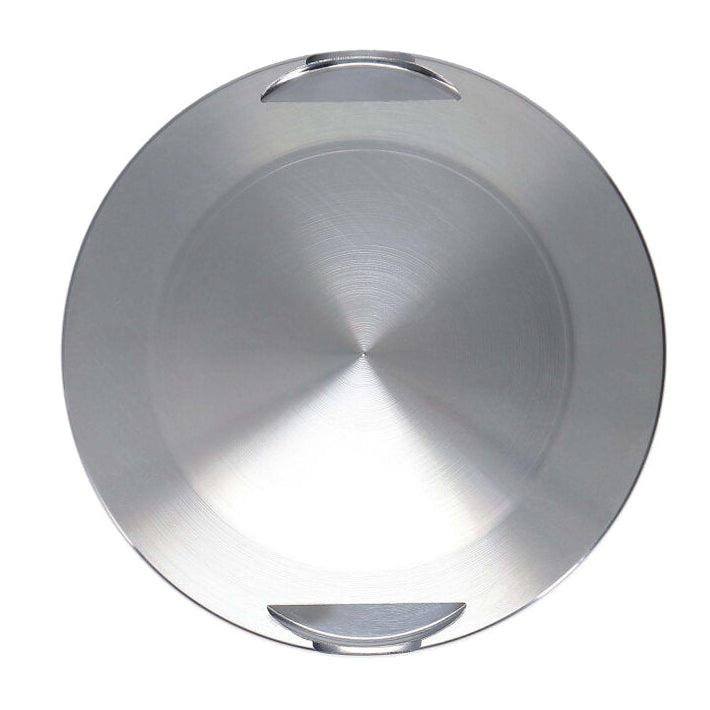

JE Pistons Forged Piston Kit – Gen 3 HEMI 6.4L Apache, 4.100" Bore (Set of 8)
The JE Pistons Forged Piston Kit is a premium set of eight forged pistons engineered specifically for the Gen 3 HEMI 6.4L Apache engine. Forged from high-strength 2618 aluminum in the USA, these pistons deliver the durability and performance required for high-horsepower naturally aspirated or boosted applications.
The kit features a dish design with a -5.20cc volume, 1.210" compression height, and 0.927" wrist pin diameter. Proprietary Forged Side Relief (FSR) design reduces skirt width and friction while allowing the use of a shorter, lighter wrist pin. Accumulator grooves help control ring flutter, and the pistons are coated on the skirts (where applicable) to reduce wear and noise.
This set does not include rings or wrist pins, allowing you to choose the exact components for your build. Ideal for street, track, or heavily modified 6.4L Apache HEMI engines.
Key Features
- 2618 Forged Aluminum – High tensile strength for demanding performance applications
- Dish Design – -5.20cc volume optimized for the 6.4L Apache combustion chamber
- FSR Forging Technology – Reduced skirt width minimizes friction and power loss
- Accumulator Grooves – Reduce ring flutter and improve ring seal for consistent power
- Skirt Coating – Reduces friction, wear, and operating noise
- Made in the USA – 100% engineered, forged, and machined in America
| Spec | Detail |
|---|---|
| Part Number | 367218 |
| Brand | JE Pistons |
| Type | Forged Piston Kit (Set of 8) |
| Compatibility | Gen 3 HEMI 6.4L Apache |
| Bore Diameter | 4.100 inches |
| Compression Height | 1.210 inches |
| Piston Volume | -5.20 cc (Dish) |
| Wrist Pin Diameter | 0.927 inches |
| Wrist Pin Material | 9310 Nickel Carbon Steel Alloy |
| Material | 2618 Forged Aluminum |
| Piston Average Weight | 442 grams |
| Ring Set Included | No |
| Country of Origin | United States |
| Warranty | JE Pistons Limited Warranty |
Whats Included
- Set of 8 JE Forged Pistons for 6.4L Apache HEMI
- Installation instructions
Product Notes
- Designed specifically for the Gen 3 HEMI 6.4L Apache engine
- Does not include piston rings or wrist pins (sold separately)
- Professional engine builder installation recommended with proper clearance and assembly procedures
Installation Notes
- Requires professional engine assembly with precise measuring of piston-to-wall clearance, ring end gaps, and wrist pin fit
- Estimated time: Performed during full engine rebuild
This Part Fits
| Year Range | Make | Model | Engine | Notes |
|---|---|---|---|---|
| Various | Dodge / Chrysler / Jeep | Various Models | Gen 3 HEMI 6.4L Apache | Forged Piston Kit (Set of 8) |
Why Choose JE Pistons?
- Over 75 years of experience in forged racing pistons
- 100% engineered, forged, and machined in the USA
- Proven in victory lane across all forms of motorsport
Frequently Asked Questions
-
Q: Does this piston kit fit the 6.4L Apache HEMI?
A: Yes, it is designed specifically for the Gen 3 HEMI 6.4L Apache engine. -
Q: Are rings and wrist pins included?
A: No, rings and wrist pins must be purchased separately to match your specific build requirements. -
Q: Is professional installation required?
A: Yes, these pistons should be installed by an experienced engine builder with proper clearances and assembly techniques.
Shipping & Handling
- Method: Ground UPS or FedEx (oversize may apply)
- Availability: Typically ships in 3 weeks or less
- Packaging: Secure JE Pistons retail packaging
