SKU: PS-3001 | UPC: 024844287441

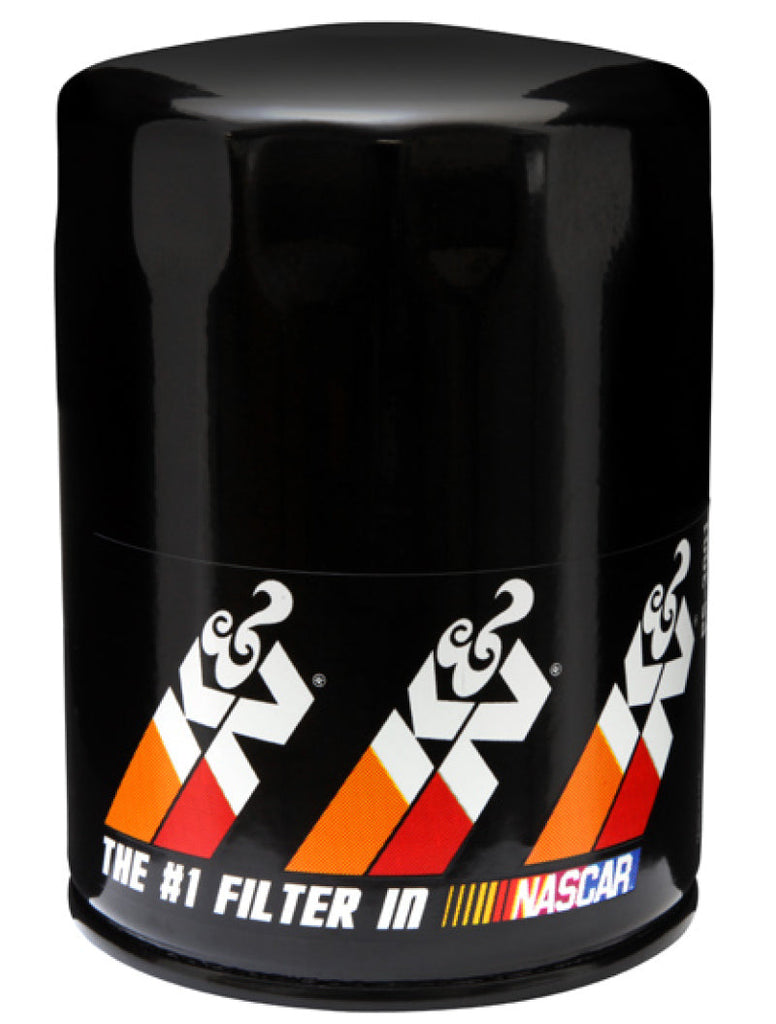

K&N Oil Filter for Ford/Audi/VW/Toyota/Mercury/Mazda/Nissan/Dodge/Lincoln/Volvo 3.656in OD
K&N PS-3001 Performance Silver Oil Filter delivers high flow rates to reduce oil restriction and support engine performance in Ford F-Series trucks, Broncos, Econolines, Rangers, and select Audi, VW, Toyota, Mazda, Nissan, and other models from 1980 to 2001. Engineered with premium pleated cellulose media, it provides excellent filtration for synthetic, conventional, or blended oils while handling extended service intervals. The fluted canister allows easy removal with standard oil filter wrenches used by professionals.
Key Features
- High Flow Design: Reduces oil filter restriction to maintain oil pressure and enhance engine response during operation.
- Premium Filtration Media: Pleated cellulose construction traps contaminants effectively with high dirt-holding capacity for longer protection.
- Fluted Canister Shape: Enables secure grip and removal using common oil filter wrenches for quick service.
- Anti-Drainback Valve: Prevents dry starts by holding oil in the filter to protect engine bearings on startup.
- Bypass Valve (15-20 PSI): Ensures oil flow during cold starts or high loads if media becomes restricted.
Product Notes
- Compatible with all motor oil grades including synthetic, conventional, and blends per OEM recommendations.
- Suitable for extended oil change intervals when following vehicle and oil manufacturer guidelines.
- Canister-style filter with 3/4 In. - 16 thread size, 3.656 in height and outside diameter.
Installation Notes
- Professional installation recommended.
- Lubricate gasket with clean oil before installing to prevent sticking.
- Hand-tighten plus 3/4 turn after gasket contact. torque to 17-20 ft-lbs if using tool.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1980-1981 | Ford | Bronco | Ranger XLT |
| 1990-1996 | Ford | Bronco | XL |
| 1982-1983 | Ford | Bronco | XLS |
| 1984-1992 | Ford | Bronco | XLT |
| 1980-1981 | Ford | F-150 | Ranger Lariat |
| 1982-1996 | Ford | F-150 | XL |
| 1980-1983 | Ford | E-100 Econoline Club Wagon | Custom |
| 1980-1982 | Ford | E-150 Econoline | Base |
| 1980-1983 | Ford | E-250 Econoline | Custom |
| 1980-1982 | Ford | E-350 Econoline | Base |
| 1980-1986 | Mercury | Grand Marquis | Base |
| 1980-1986 | Ford | LTD | Crown Victoria |
| 1980-1988 | Aston Martin | V-8 | Base |
| 1982-1983 | Audi | 4000 | S |
| 1980-1983 | Audi | 5000 | Base |
| 1980 | Ferrari | 308 GTS | Base |
| 1980 | Ford | Pinto | Base |
| 1983-1996 | Ford | Ranger | Base |
| 1987-1992 | Land Rover | Range Rover | Base |
| 1980-1986 | Toyota | Land Cruiser | Base |
| 1980-1986 | Nissan | 720 | Base |
| 1980-1981 | Volkswagen | Dasher | Base |
| 1994-1997 | Mazda | B2300 | Base |
| 1995-1998 | Audi | A6 | Base |
| 1991-2001 | Ford | Explorer | XL |
Why Choose K&N?
- Built for professional service with durable construction that withstands demanding shop use.
- Engineered media traps more dirt than standard filters for reliable engine safeguarding.
- Precise fitment verified for thousands of applications across Ford trucks and imports.
Frequently Asked Questions
-
Q: Does PS-3001 fit my 1985 Ford F-150 4.9L?
A: Yes, it fits 1980-1996 Ford F-150 with 4.9L inline-6, F-250, F-350, and similar 300 CID engines using 3/4-16 thread. -
Q: What filter media is used?
A: High-capacity pleated cellulose media designed for synthetic and conventional oils with excellent contaminant capture. -
Q: What is the warranty?
A: 1-year limited warranty covers defects in materials or workmanship under normal use.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact retail box approximately 3.8 x 3.8 x 4.3 inches
- Weight: 0.9 lb
