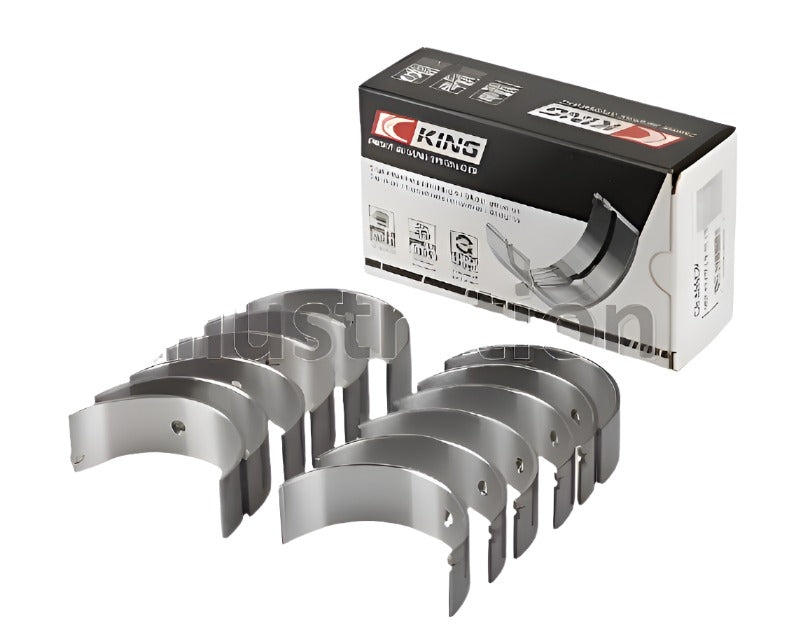

King Engine Bearings CR6857SM is the exact connecting rod bearings set shown in this listing. Select it by engine application, bearing position, measured crankshaft journal and housing bore, size designation, material or coating, and manufacturer part number. Engine machining measurements must be confirmed before ordering.
Key Features
- CONNECTING ROD BEARING SET For CHRYSLER PENTASTAR 3.6L ERB V6; bimetal (strengthened aluminum).
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2011-2017 | Chrysler | 200 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2022 | Chrysler | 300 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2016 | Chrysler | Town & Country | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2014 | Dodge | Avenger | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2022 | Dodge | Challenger | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2022 | Dodge | Charger | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2015 | Dodge | Durango | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2020 | Dodge | Grand Caravan | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2019 | Dodge | Journey | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2011-2016 | Jeep | Grand Cherokee | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2012-2017 | Jeep | Wrangler | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2018 | Jeep | Wrangler JK | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2013-2019 | Ram | 1500 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2019-2022 | Ram | 1500 Classic | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2012-2015 | Ram | C/V | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2014-2021 | Ram | ProMaster 1500 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2014-2021 | Ram | ProMaster 2500 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
| 2014-2021 | Ram | ProMaster 3500 | Confirm engine code, displacement, journal size, bearing position, and machining specification |
Specifications
| Brand | King Engine Bearings |
|---|---|
| Manufacturer Part Number | CR6857SM |
| Bearing Type | Connecting Rod Bearings |
| Size | STD |
| Finish or Coating | Bearing construction identified by exact part number |
| Condition | New |
What's Included
One new King Engine Bearings connecting rod bearings set in the exact size and configuration identified by part number CR6857SM. Gaskets, fasteners, assembly lubricant, measuring tools, and machine work are not included unless expressly listed.
About King Engine Bearings
King has specialized in engine bearings since 1960 and produces OE replacement and performance main, connecting rod, camshaft, and thrust bearing solutions. Correct selection depends on exact engine application, journal and housing measurements, material, coating, clearance target, and part-number suffix.
Related King Engine Bearings Products
- Shop all King Engine Bearings products
- King 03-05 Dodge Neon SRT4 2.4L (Size STD) Performance Rod Bearing Set
- King 07-09 Mazdaspeed 3 L3-VDT MZR DISI (t) Duratec High Performance Rod Bearing Set - Size (STD)
- King 08-10 Ford Powerstroke 6.4L (Size STD) Connecting Rod Bearing Set
Frequently Asked Questions
Will King Engine Bearings CR6857SM fit my engine?
Match the listed year, make, and model where available, then confirm the exact engine code, displacement, crankshaft journal dimensions, housing bore, bearing position, thrust location, and part-number suffix.
Does King Engine Bearings CR6857SM fit a standard-size crankshaft?
The listed size designation is STD. Do not assume standard size from the vehicle application. Measure every journal and compare the finished crankshaft dimensions with the exact bearing specification before ordering.
How should bearing clearance be checked for King CR6857SM?
Have a qualified engine builder measure the housing bore and each crankshaft journal with calibrated tools, install the dry bearing shells in their correct positions, torque the caps to specification, and verify oil clearance against the engine and bearing requirements.
Installation Instructions
Installation requires qualified engine-machining and assembly practices. Identify every cap and bearing position, inspect and measure housing bores and crankshaft journals, verify surface finish and thrust clearance, clean all oil passages, install each shell without contamination or damage, align oil holes and locating features, lubricate as specified, torque fasteners in the correct sequence, verify oil clearance and crankshaft rotation, then prime the lubrication system before initial startup.
