Kleinn 6450 is the Model 6450: Universal Ultra Heavy-Duty 150PSI 5-Gal Onboard Air System with Tire Inflation Kit. Match the exact manufacturer part number, configuration, voltage, pressure, dimensions, connections, included components, and vehicle application before ordering.
Key Features
- It includes a high performance, higher CFM output, 150 psi, 100% duty cycle compressor and a 5 gallon air tank that can power your air horns as well as other accessories like air bags and small air tools.
- The kit also includes a quick-connect tire inflation kit with a 30 coil hose with tire chuck and storage case.
Fitment
| Fitment Status | Universal only by exact specifications |
|---|---|
| Required Verification | Voltage, pressure, flow, duty cycle, dimensions, ports, air-line size, wiring, mounting, and companion components |
Specifications
| Brand | Kleinn Air Horns |
|---|---|
| Manufacturer Part Number | 6450 |
| Product Type | Onboard Air Systems |
| Fitment Type | Universal |
| Condition | New |
| GTIN | 819147010090 |
| Part Number | Model 6450RC |
| Warranty | 2-Year Extended |
| Max Pressure | 200 PSI |
| Duty Cycle | 100% @ 100 PSI |
| Flow Rate | 2.1 CFM @ 0 PSI |
| Compressor Type | Waterproof Sealed, Oil-less |
| Voltage | 12V DC |
| Motor Type | Permanent Magnetic |
| Max Tank Size | 7 Gallon |
| Max Amp Draw | 23 Amps |
| Dimensions | 11.25” x 4” x 6.5” |
| Mounting Holes | 8.9” x 3.31” |

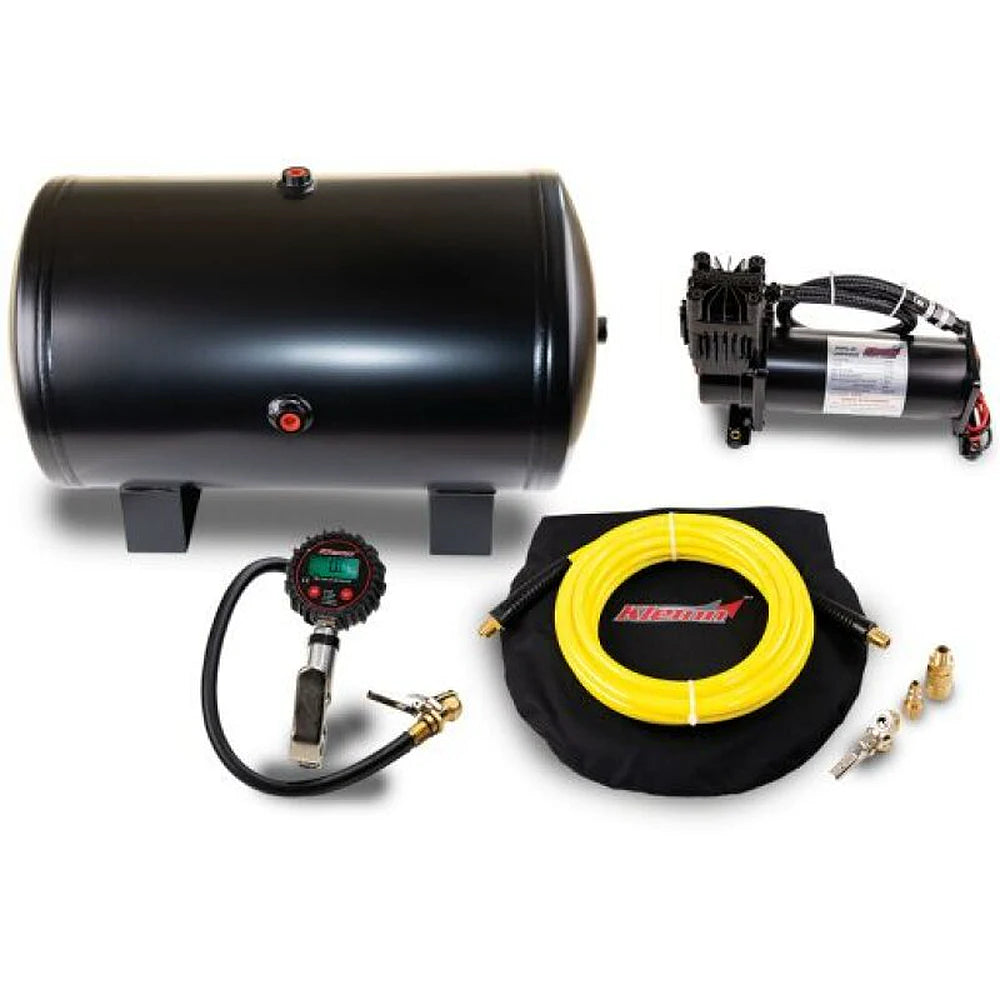

What's Included
- 6450RC: 200 PSI elite waterproof air compressor (100% continuous duty cycle)
- Snorkel Kit: Remote air intake filter relocation system with 12' of 3/8" airline
- 6450RT: 5-gallon steel air tank with premium internal anti-corrosion coating
- INF-1 Kit: 24' heavy-duty extension hose, quick-connect fittings, luminescent gauge tire inflator, and canvas storage case
- Fitting Pack: Pre-calibrated sealed pressure switch, safety blow-off valve, and brass drain port valve
- Installation Kit: Full wiring harness, heavy-duty airline, thread sealant, and all required high-strength mounting hardware fasteners
About Kleinn Air Horns
Kleinn develops vehicle-specific and universal train horns, air horns, onboard-air systems, compressors, tanks, valves, controls, and remote-start systems. Every pressure, electrical, dimensional, and vehicle requirement remains exact-part specific.
Related Kleinn Air Horns Products
- Shop all Kleinn Air Horns products
- Kleinn Air System w/ 150 PSI Waterproof/ 100 Percent Duty Cycle Air Compressor / 3.0 gal Air Tank
- Kleinn Air System w/ 150 PSI Waterproof/ 100 Percent Duty Cycle Air Compressor / 3.0 gal Air Tank
- Kleinn Air System w/ 150 PSI Air Compressor / 1.5 gal Air Tank
Frequently Asked Questions
What must match before installing Kleinn 6450?
Confirm voltage, pressure, flow, duty cycle, port and air-line sizes, dimensions, mounting orientation, wiring load, and compatibility with every connected component.
Is Kleinn 6450 compatible with my existing air system?
Match the exact voltage, pressure range, duty cycle, port thread, air-line diameter, current draw, dimensions, and mounting requirements. Similar-looking components are not automatically interchangeable.
What should be checked after installing Kleinn 6450?
Leak-test every pneumatic connection, verify electrical protection and operating pressure, secure all wiring and air line, and recheck mounting hardware after the first operating cycle.
Installation Instructions
Confirm Kleinn part number 6450 and the complete application before beginning. Mount every component in the specified orientation, use correctly sized fused wiring and protected grounds, route air line away from heat and moving parts, seal only the approved threads, leak-test the system, verify cut-in and cut-out pressure, and confirm safe operation before driving.
