Gloss Black with Red Tinted Clearcoat 5-Spoke Wheel Engineered for Sport Compact and Performance Sedan Applications

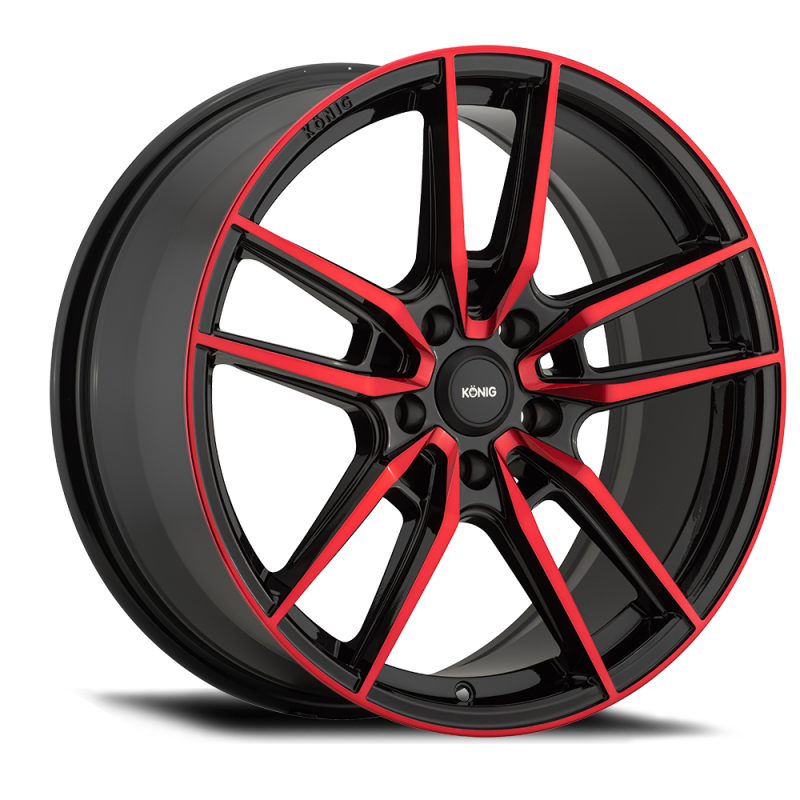

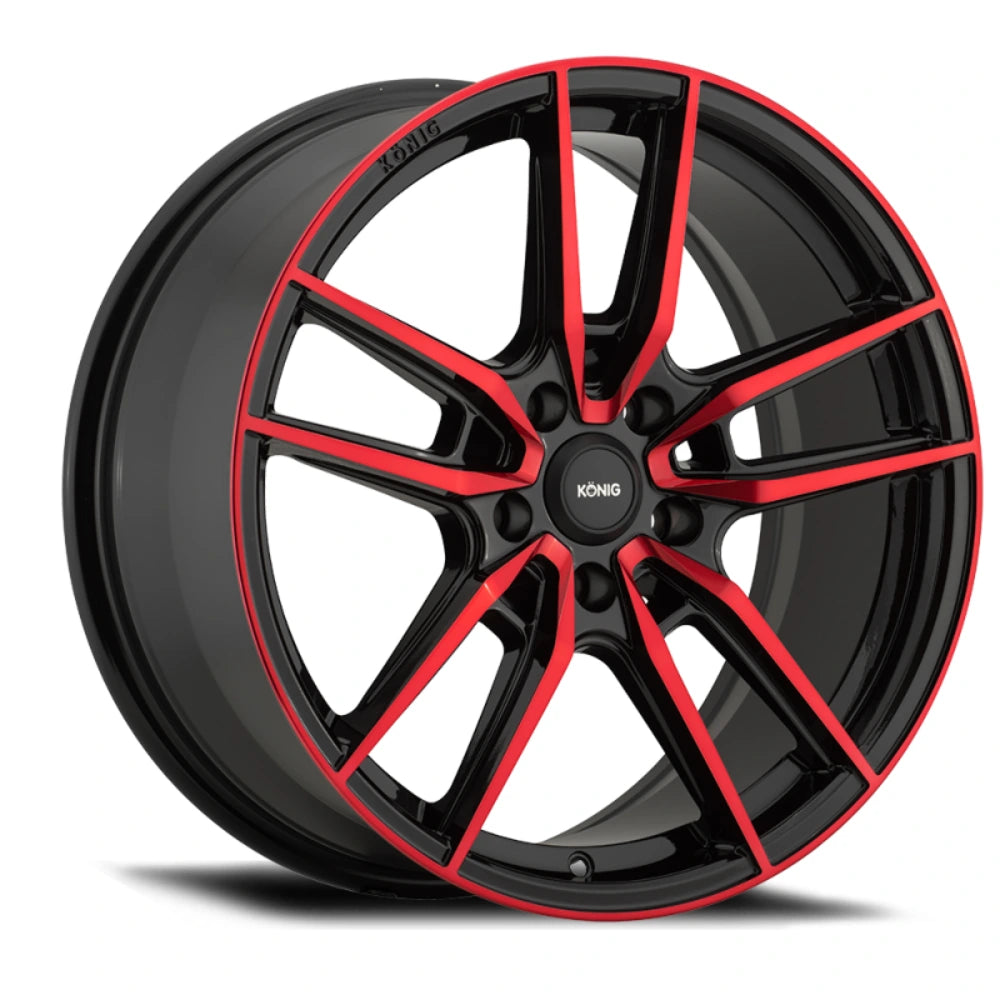

The Konig Myth KNGMY8951440R is a 19x8.5 cast aluminum wheel finished in gloss black with a red tinted clearcoat, available in a 5x114.3 bolt pattern at ET40 offset. The Myth features a 5-spoke design with deep concave face geometry that fills out wide fender arches and provides aggressive visual presence without requiring custom fabrication or spacers for most sport compact and performance sedan fitments in this bolt pattern family. The KNGMY8951440R center bore is 73.1mm with a hub-centric fit when used with the correct hub rings. Konig manufactures the Myth to strict dimensional tolerances for runout and balance, and the wheel ships with a limited warranty against manufacturer defects. Verify fitment using your vehicle's bolt pattern, offset range, and center bore diameter before ordering.
Key Features
- 19x8.5 cast aluminum wheel in 5x114.3 bolt pattern at ET40 offset
- Gloss black finish with red tinted clearcoat accent
- 5-spoke deep concave face design for aggressive visual presence
- 73.1mm center bore with hub-centric fit when used with correct hub rings
- Balanced and inspected to strict dimensional tolerances at the factory
- Sold individually (1 wheel per listing)
- Limited manufacturer warranty
Specifications
| Detail | Value |
|---|---|
| Part Number | MY8951440R |
| Brand | Konig |
| Diameter | 19 inches |
| Width | 8.5 inches |
| Bolt Pattern | 5x114.3mm |
| Offset | ET40mm |
| Center Bore | 73.1mm |
| Finish | Gloss Black with Red Tinted Clearcoat |
| Construction | Cast Aluminum |
| Sold As | Single Wheel |
| Warranty | Limited Manufacturer Warranty |
| UPC | N/A |
What's Included
- 1 x Konig Myth 19x8.5 5x114.3 ET40 wheel in gloss black with red tinted clearcoat (KNGMY8951440R)
About Konig Wheels
Konig is a performance wheel brand known for producing lightweight, affordable cast and flow-formed wheels for sport compact, performance sedan, and daily driver applications. Konig has manufactured wheels since 1979 and distributes across North America and Europe. The Myth is one of Konig's more popular 5-spoke designs, offered in multiple finishes and sizing options for a wide range of vehicle fitments in the 5x100, 5x112, and 5x114.3 bolt pattern families.
Frequently Asked Questions
What is the Konig KNGMY8951440R?The Konig KNGMY8951440R is the Myth wheel in 19x8.5, 5x114.3 bolt pattern, ET40 offset, finished in gloss black with a red tinted clearcoat. The Myth is a cast aluminum 5-spoke wheel with a deep concave face profile. It is sold as a single wheel.
What vehicles does the 5x114.3 bolt pattern fit?The 5x114.3 bolt pattern is one of the most common in North American automotive applications, fitting a wide range of sport compact, performance sedan, crossover, and truck platforms including models from Honda, Acura, Toyota, Mazda, Hyundai, Kia, Mitsubishi, Nissan, Subaru, Ford Mustang (2015+), Dodge Charger, and many others. Verify your specific year, make, model, and trim fitment before ordering to confirm offset and center bore compatibility.
Is the center bore 73.1mm hub-centric?Yes. The Konig Myth has a 73.1mm center bore. Vehicles with a factory hub diameter smaller than 73.1mm require hub-centric rings to achieve a hub-centric fit. Hub rings are inexpensive and strongly recommended to eliminate vibration and reduce load on the wheel studs at highway speeds.
What is ET40 offset and is it compatible with my vehicle?ET40 means the wheel's mounting face is 40mm inboard from the wheel centerline. Whether ET40 works for your vehicle depends on your specific suspension geometry, brake caliper clearance, and fender clearance. Consult your vehicle's approved offset range and check with a wheel fitment specialist before ordering if you are uncertain.
Is the Konig Myth sold in sets of 4 or individually?The KNGMY8951440R is sold as a single wheel. Purchase 4 units to equip all four corners of the vehicle. Verify that all 4 units arrive with consistent finish quality before mounting.
What lug nuts are required for the Konig Myth?The Konig Myth uses the seat type specified in the wheel's technical data sheet. Most aftermarket wheels require a 60-degree conical (tapered) seat lug nut rather than the factory ball-seat or flat-seat hardware used on OEM wheels. Verify the required seat type for the Myth before purchasing lug nuts or reusing factory hardware.
Does the Konig KNGMY8951440R require a TPMS sensor?TPMS sensors from the original wheels can typically be transferred to new aftermarket wheels if the sensor type and band style are compatible with the new wheel's valve stem configuration. Consult your tire shop or wheel installer before mounting to confirm TPMS compatibility and transfer procedures.
What warranty does Konig provide?Konig provides a limited manufacturer warranty against defects in materials and workmanship on the Myth wheel. The warranty does not cover damage from road hazards, improper installation, excessive loads, or cosmetic wear from use. Register the wheel with Konig after purchase for warranty service procedures.
Installation Instructions
- Verify the 5x114.3 bolt pattern, 73.1mm center bore compatibility, and ET40 offset clearance against your vehicle's specifications before mounting.
- Install hub-centric rings if your vehicle's hub diameter is smaller than 73.1mm to achieve a hub-centric fit and prevent vibration.
- Clean the vehicle hub face and wheel mounting surface thoroughly to remove rust, debris, and old anti-seize compound before installation.
- Seat the wheel on the hub with the hub ring in place, then hand-thread the lug nuts using the correct conical seat lug nuts in the star pattern.
- Torque lug nuts to the vehicle manufacturer's specification in a star pattern. Do not use an impact wrench without a torque stick.
- Have the wheels professionally balanced after mounting tires before driving on the vehicle.
- Re-torque lug nuts after the first 50-100 miles of driving to account for initial seating.
