Click to zoom in
Classic spoke styling with the dimensions compact builds depend on

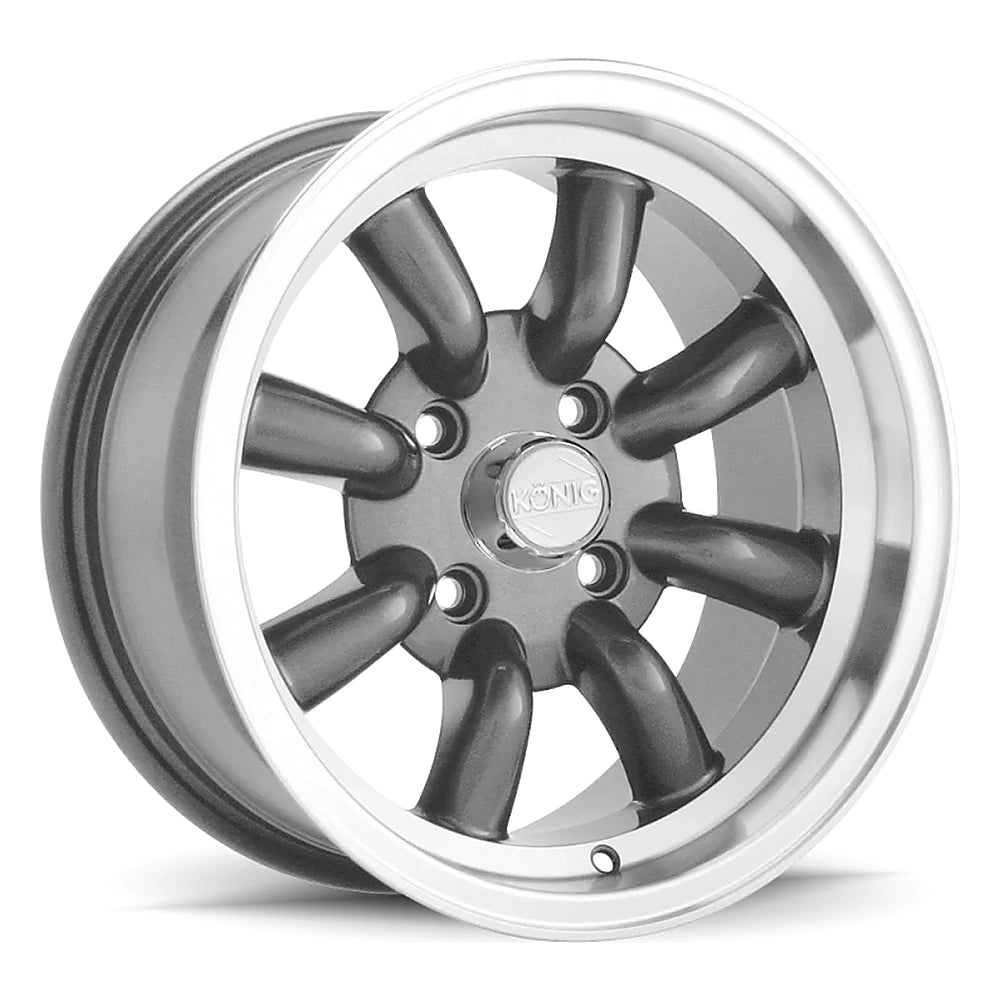

Konig RW75100406 combines a graphite center and machined lip with a light 13.4-pound, one-piece 15x7-inch layout that remains a familiar choice for street and Spec E30-inspired builds.
Key Features
- 15x7-inch one-piece cast-aluminum wheel
- 4x100 mm bolt pattern with +40 mm offset
- 73.1 mm center bore
- Graphite center with a machined outer lip
- 13.4-pound manufacturer-listed net weight
- Exact-retailer-listed 1,518-pound load rating
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | No year-make-model fitment applies. Requires a vehicle that accepts a 4 x 100 mm bolt pattern, 15 x 7 in-inch wheel, +40 mm offset, and 73.1 mm center bore, with verified brake, hub, suspension, fender, tire, load, lug-seat, and TPMS clearance. Hub-centric rings and compatible conical-seat lug nuts may be required. |
Specifications
| Detail | Value |
|---|---|
| Brand | Konig |
| Manufacturer Part Number | RW75100406 |
| Product Type | Wheels - Cast |
| Model | Rewind |
| Quantity | One wheel |
| Wheel Size | 15 x 7 in |
| Bolt Pattern | 4 x 100 mm |
| Offset | +40 mm |
| Center Bore | 73.1 mm |
| Finish | Graphite with machined lip |
| Construction | One-piece cast aluminum |
| Net Weight | 13.4 lb |
| UPC | 043482133118 |
| Beadlock | No |
| Installation | Professional test-fit, tire mounting, balancing, TPMS service, and torque verification recommended |
| Warranty | Konig limited lifetime warranty against structural defects, subject to current manufacturer terms |
| Load Rating | 1,518 lb |
What's Included
- One Konig Rewind 15 x 7 in wheel
- Konig center cap
- Not included: Tire, TPMS sensor, hub-centric ring, lug nuts, valve stem, mounting, balancing, and installation labor
About Konig
Konig has developed performance-oriented aftermarket wheels for more than 40 years. Its wheel programs combine application-focused dimensions, multipoint quality-control inspection, motorsport-influenced design, and a limited lifetime structural warranty under the manufacturer's current terms.
Related Parts
- Use only tires, TPMS components, hub-centric rings, conical-seat lug nuts, and wheel-service parts verified for these exact dimensions and the intended vehicle.
FAQ
What is the RW75100406?It is one Konig Rewind 15 x 7 in graphite with machined lip wheel with a 4 x 100 mm bolt pattern, +40 mm offset, and 73.1 mm center bore.
Is this wheel sold individually?Yes. This listing is for one wheel, so order the quantity needed for the planned setup.
Does this wheel have year-make-model fitment?No universal year-make-model claim applies. Fitment depends on every listed wheel dimension plus brake, hub, suspension, tire, fender, and load clearance.
What bolt pattern and center bore must the vehicle accept?The vehicle must accept a 4 x 100 mm bolt pattern and a 73.1 mm center bore arrangement, including a correctly sized hub-centric ring when required.
What offset does this wheel use?This exact wheel uses a +40 mm offset. Offset changes inner suspension clearance and outer fender position, so it must be verified before mounting.
Are tires and lug nuts included?No. The tire, TPMS sensor, valve stem, hub-centric ring, lug nuts, mounting, and balancing are not included.
What lug-seat style should be used?Use compatible conical-seat lug nuts in the correct thread size for the vehicle, and verify engagement and torque before driving.
What warranty applies?Konig lists a limited lifetime warranty against structural defects, subject to its current warranty terms, exclusions, and proof-of-purchase requirements.
Installation Instructions
- Confirm wheel diameter, width, bolt pattern, offset, center bore, load capacity, brake clearance, suspension clearance, and tire requirements against the vehicle before mounting a tire.
- Test-fit the bare wheel on the intended hub and verify caliper, hub, stud, suspension, and fender clearance through the full steering and suspension range.
- Install any required hub-centric ring, a compatible tire and TPMS sensor, then balance the assembly using professional wheel-service equipment.
- Mount the wheel with compatible conical-seat lug nuts and tighten them in a star pattern to the vehicle manufacturer's torque specification.
- Recheck lug-nut torque after the initial driving interval recommended by the vehicle and wheel service provider.
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
