Maximum Flow, Full Emissions Compliance: Long Tube Power Without the Compromise

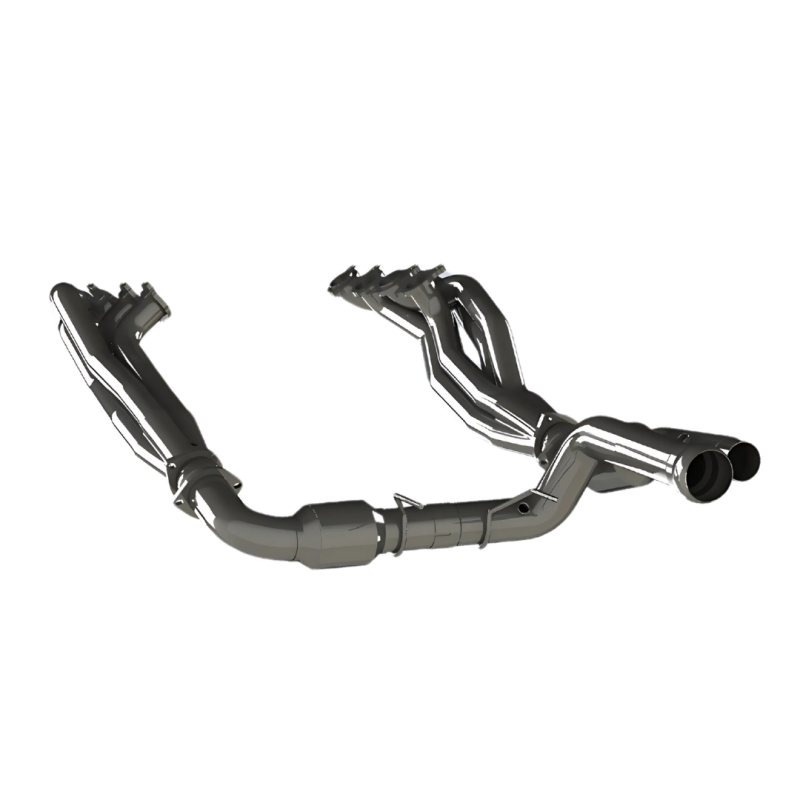

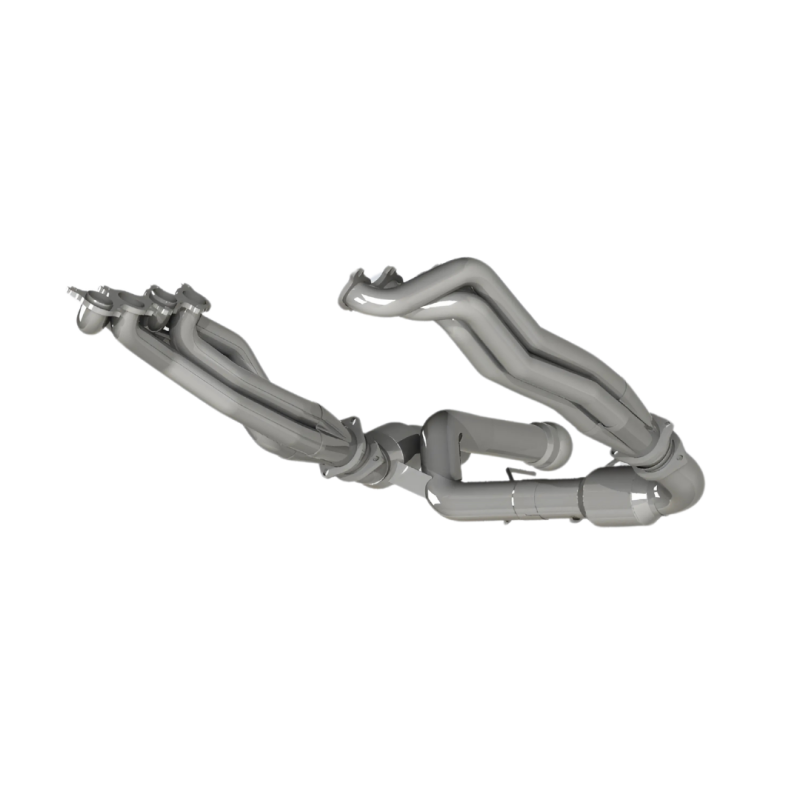

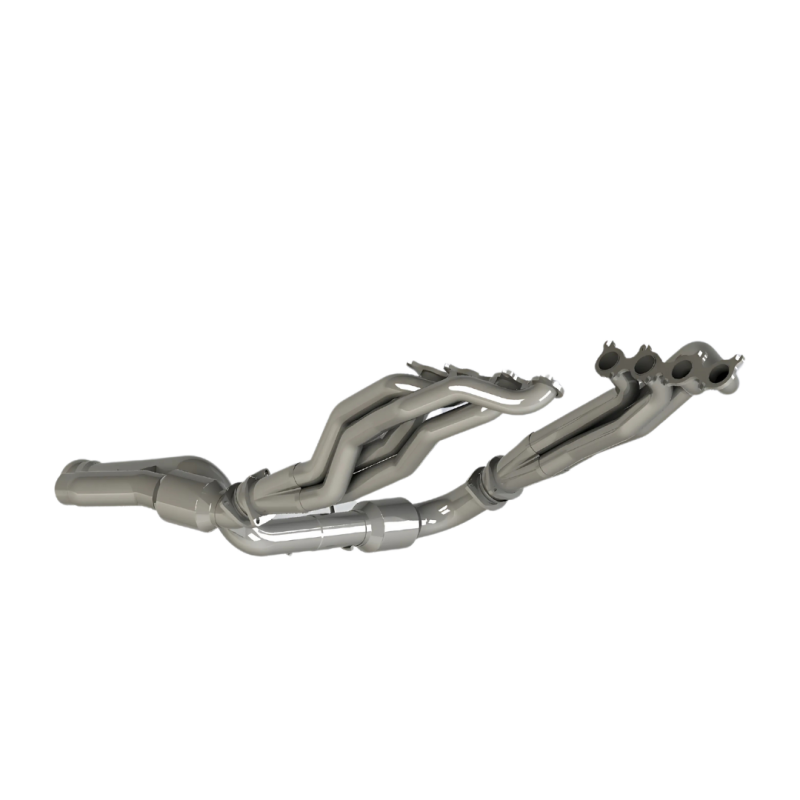

The Kooks 1-7/8" long tube headers with high-flow green catted connection pipes deliver the highest flowing design available for the Raptor R's supercharged 5.2L Predator V8. Hand-built from 304 stainless steel with merged collectors and 200-cell metallic green catalysts, this system provides massive mid-range torque gains, reduced backpressure, and a deeper supercharged growl while maintaining street legality in most states through CARB-compliant high-flow cats.
Key Features
- 1-7/8" Long Tube Primaries: Stepped design maximizes scavenging and torque on supercharged applications.
- Merged Spike Collectors: Proprietary Kooks design improves exhaust pulse separation.
- High-Flow Green Cats: 200-cell metallic substrate with OEM+ heat shields and highest flow while controlling emissions.
- Full 3" Connection Pipes: Connects directly to factory or aftermarket cat-back exhaust.
- 100% 304 Stainless Steel: TIG-welded with 3/8" thick flanges for zero leaks.
- O2 Sensor Provisions: Factory locations plus extensions included.
- Gains: +50-70 hp / +60-80 lb-ft documented on tuned Raptor R (with tune).
- Made in USA: Hand-crafted in North Carolina with lifetime warranty to original purchaser.
Product Notes
- Complete system includes headers, green catted connection pipes, gaskets, bolts, and O2 extensions.
- Part number: 1372H430 (Raptor R specific).
- Green cats are CARB EO pending and 50-state legal when approved.
- Fits 2022+ Raptor R only (5.2L supercharged).
- No tune required but strongly recommended to maximize gains and prevent CEL.
- Total system weight approximately 42-46 lbs (vs. factory ~65+ lbs).
What's Included

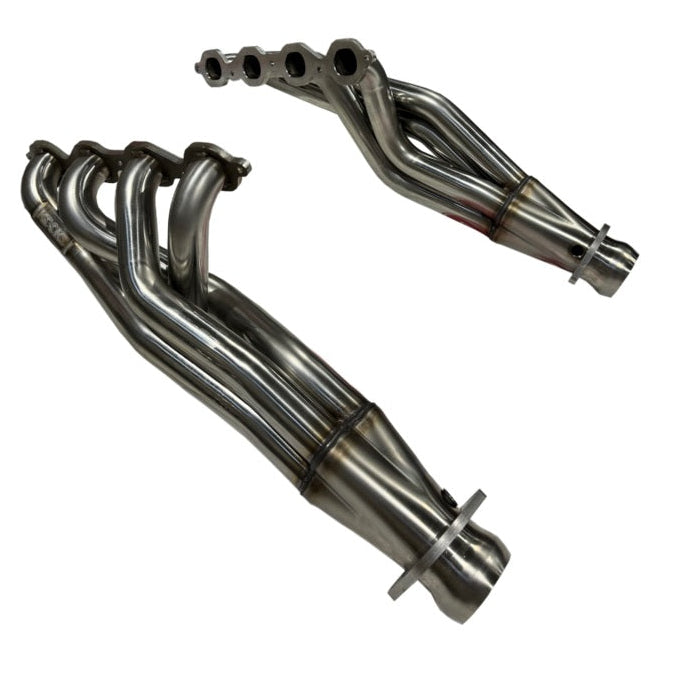

- Kooks Long Tube Header Set (Left and Right)
- Connection Pipes
- Oxygen Sensor Bungs
- Installation Hardware and Gaskets
- Kooks Installation Instructions
This Part Fits
| Year | Make | Model | Engine |
|---|---|---|---|
| 2022 | Ford | F-150 Raptor R | 5.2L Supercharged V8 |
| 2023 | Ford | F-150 Raptor R | 5.2L Supercharged V8 |
| 2024 | Ford | F-150 Raptor R | 5.2L Supercharged V8 |
| 2025 | Ford | F-150 Raptor R | 5.2L Supercharged V8 |
Why Choose Kooks?
- 60+ years of American header manufacturing with race-winning designs.
- Every header hand-built and leak-tested in-house.
- Trusted by top Raptor R builders and record-holding supercharged trucks.
Frequently Asked Questions
- Q: Will this throw a check engine light?
- A: Possible rear O2 CEL without tune most owners use custom tune to resolve.
- Q: Is a tune required?
- A: Not required for operation but strongly recommended for full power gains and drivability.
- Q: Does it clear the factory supercharger?
- A: Yes, engineered specifically for Raptor R 5.2L supercharged layout.
-
Q: Do these Kooks headers require a tune after installation?
A: Yes. A professional tune is strongly recommended after installing long tube headers. The significant improvement in exhaust flow changes air fuel ratios and requires ECM recalibration to achieve optimal power output and safe operation. -
Q: Will Kooks headers void my factory powertrain warranty?
A: Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty simply because you installed an aftermarket part unless they prove the component directly caused the failure in question. Consult your dealer for specifics.
Installation Notes
- Direct bolt-on replacement no cutting or welding required.
- Professional installation recommended due to supercharger packaging and tight clearances.
- Header bolts torque to 25 ft-lbs (use anti-seize).
- Tune recommended to disable rear O2 sensors or prevent CEL.
Shipping & Handling
- Method: Freight truck (oversized double-boxed).
- Package Weight: Approximately 65 and 75 lbs.
- Box Dimensions (approx): 48" × 18" × 12" + second box for connection pipes.
